TOHATSU MFS 20C User Manual

6
6-3
4st 9.9/15/20 2008
Use in combination with driver rod.
Use oil seal attachment to press fit ball bearing.

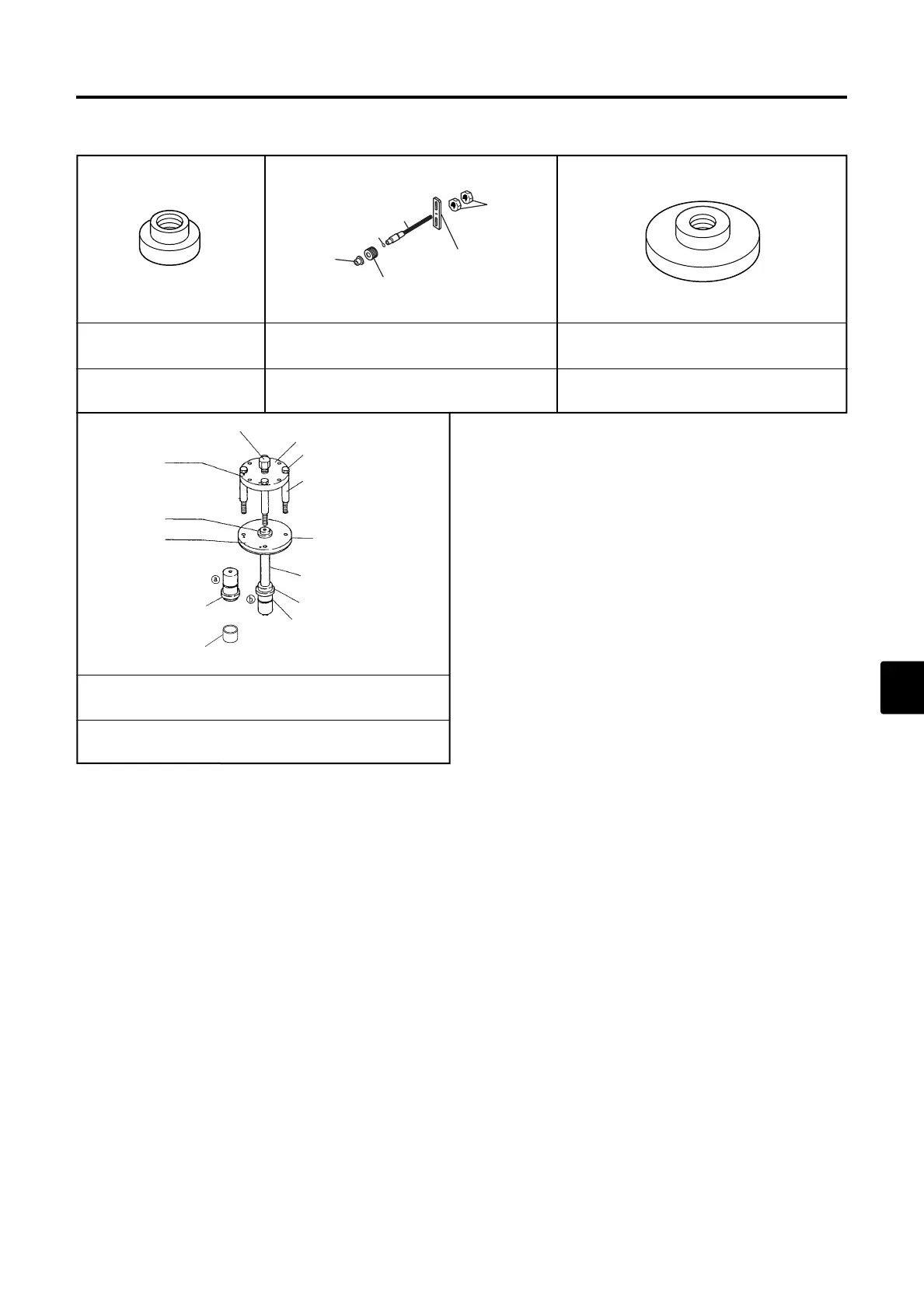

Installing forward (A) gear and rever (C) gear bearings
Oil Seal Attachment
P/N. 3UI-99820-0
Installing/attaching drive shaft housing
Needle bearing press Ass'y
P/N. 3AC-72764-0
Measuring gap between forward and pinion
gears (A and B gears)
Backlash Measuring Tool Kit
P/N. 3C8-72234-1
3BJ-72245-0
3B7-72734-0
332-60002-0
345-72723-0
3A3-72713-0
930191-1000
ø51.5 x ø39.5
Needle Bearing Press Bolt
(3C7-72766-0)
Needle Bearing Press Rod
(3BJ-72767-0)
Bearing outer press guide
(3BJ-72765-0)
Bolt M8-110 (910194-0690)
Washer (940191-0600)
Needle Bearing Press Collar
(3AC-72768-0)
Needle Bearing Press Flange
(3BJ-72901-0)
Needle Bearing Press
(3BJ-72770-0)
O ring (176-32545-0)
Needlerollerforfacetomark
"G" mark
"G" mark
Stopper
G
G
Needle Bearing Press Guide
(3BJ-72905-0)
Oil Seal Attachment 3
P/N. 3BJ-99820-0
Installing pump case (lower)
oil seal
ø25.5 x ø12.5
