6-2
Lower Unit
4st 9.9/15/20 2008

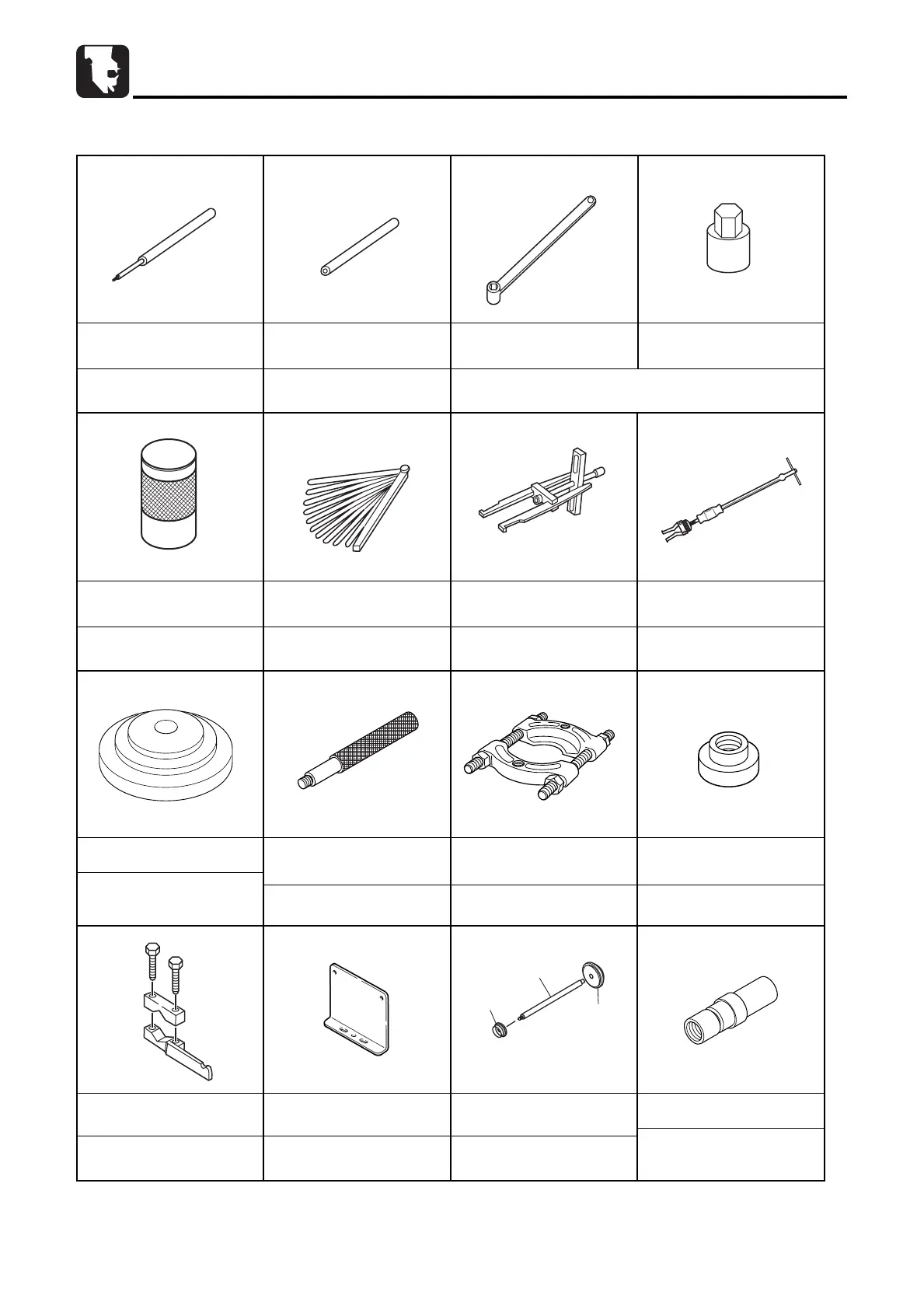

1.Special Tools
Removing spring pin
Spring Pin Tool A
P/N. 345-72227-0
Used with driver rod and needle
bearing attachment
Positioning propeller shaft housing
needle bearing
Driver Rod
P/N. 3AC-99702-0
Center Plate
P/N. 3AC-99701-0
Used with center plate and
needle bearing attachment
Used with driver rod Installing oil
seal in the propeller shaft housing
Oil Seal Attachment 2
P/N. 3AG-99820-0
Installing forward (A) gear
bearing
Removing/installing Pinion (B) Gear Nut
Bevel Gear Bearing Installation Tool
P/N. 346-72719-0
Bevel Gear B Nut Wrench
P/N. 346-72231-0
Bevel Gear B Nut Socket
P/N. 346-72232-0
Slide Hammer Kit
P/N. 3AC-99080-0
Removing forward (A) gear
bearing outer race
Universal Puller Plate
P/N. 3AC-99750-0
Removing forward (A) gear
bearing outer race
Bevel Gear Bearing Puller Ass'y
P/N. 3A3-72755-0
Installing spring pin
Spring Pin Tool B
P/N. 345-72228-0
Installing forward gear (A)
bearing outer race
Bearing Outer Press Kit
P/N. 3B7-72739-1
Removing reverse
gear/bearing
3BJ-72733-0
3B7-72731-0
3BJ-72732-0
Needle Bearing Attachment
P/N. 3BA-99710-0
Used with driver rod and center plate
Installing propeller shaft housing
needle bearing
Measuring gaps
Thickness Gauge
P/N. 353-72251-0
Measuring backlash
Backlash Measuring Tool Clamp
P/N. 3B7-72720-0
ø110 x ø71 ø29.5 x ø16.5
Used to attach dial gauge
whwn measuring backlash
Dial Gauge Plate
P/N. 3B7-72729-0
