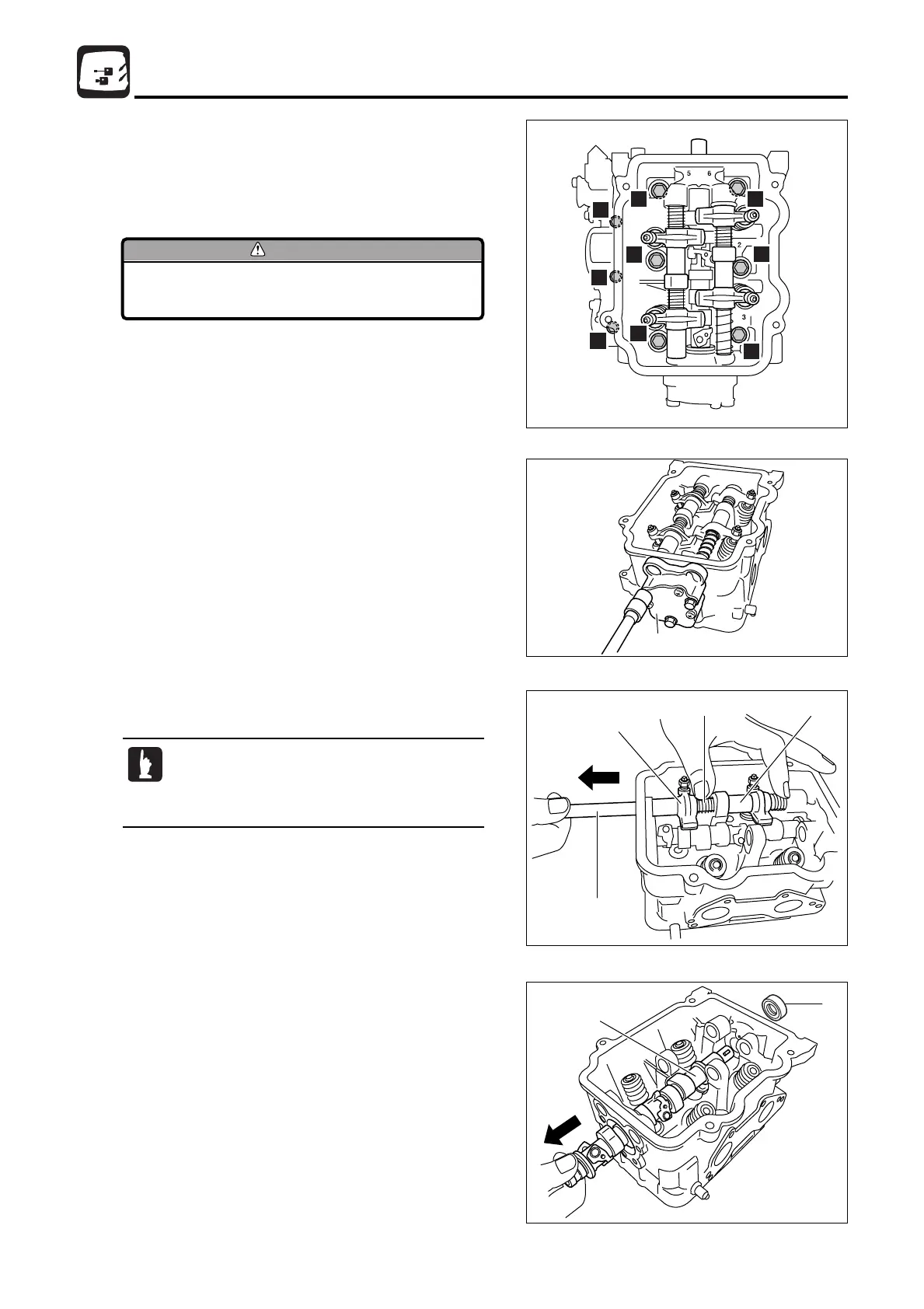

Power Unit
4st 9.9/15/20 2008
10. Remove cam shaft 5 .
11. Remove oil seal
6 .
5
6
9. Remove rocker arm 1, spring 2, collar 3 and rocker arm
shaft 4.
· Push in a proper bolt a little and pull the part
out downward.
· Pull the shaft while holding other parts with a
hand.
1
2
3
4
7. Loosen rocker arm lock nut, and loosen adjusting screw as
much as possible.
8. Remove oil pump ass'y 1.
1
1
4
8
9
5 6
2
3
7
5. Remove cam pulley and cylinder head cover. Remove
hose.
6. Remove cylinder head bolts in the reverse sequence of
order shown, and remove cylinder head.
CAUTION
Do not scratch or give damage to mating surfaces
of cylinder head and cylinder block.
