5-56
Power Unit
4st 9.9/15/20 2008

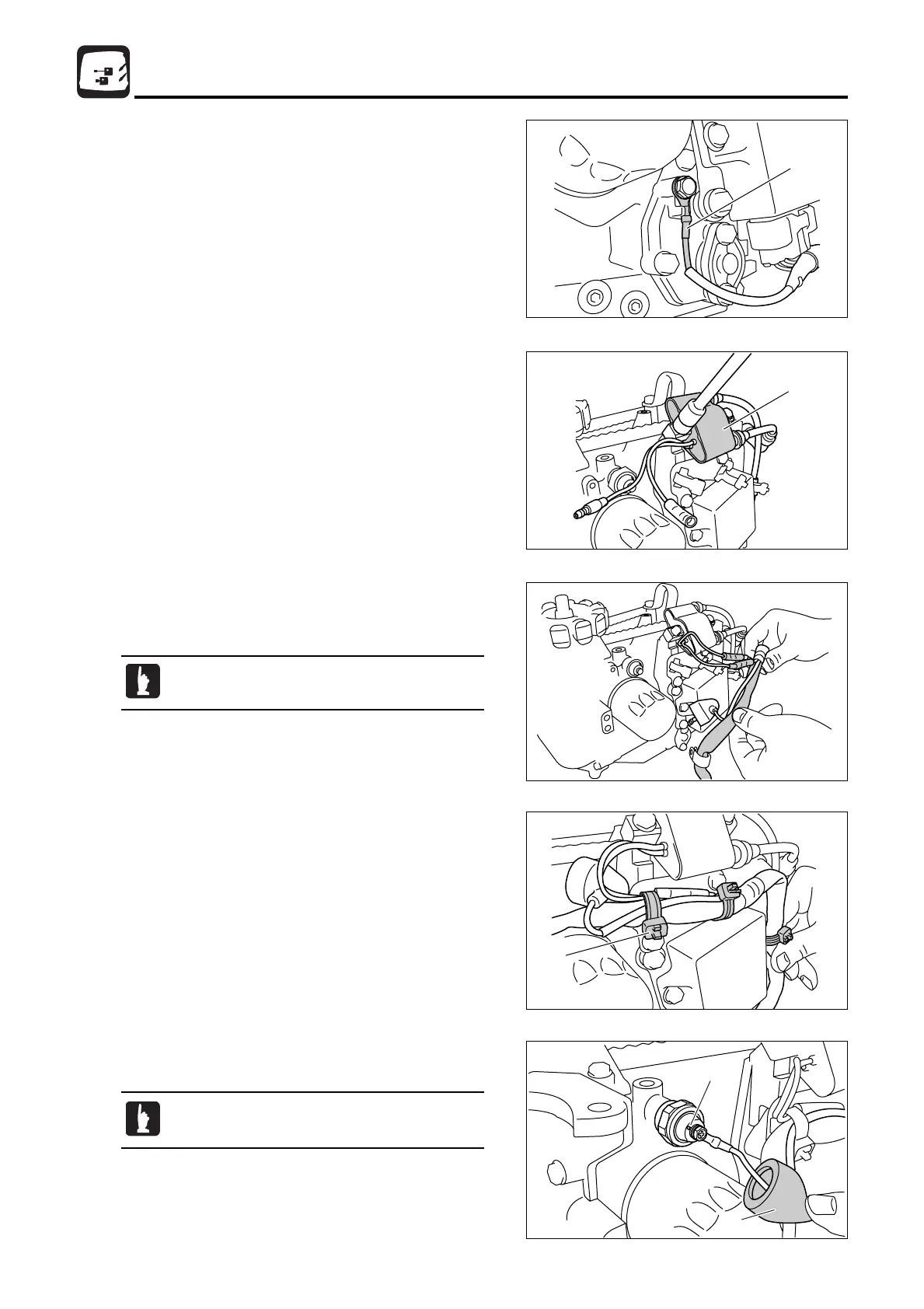

8. Attach ground wire q from CD unit.
9. Install ignition coil w and connect wire to wireharness from CD
unit.
10. Connect ignition coil wire and oil pressure sensor wire to
CD unit cord as shown, and secure the wires with lead
wire band e.
11. Attach sensor wire to oil pressure sensor, and install
grommet r.
a
r
When installing grommet, be careful not to plug
small hole a of switch with grease.
Secure the cords using band taking care not to
allow them to contact top cowl.
E_MFS20C_ch05_090105.qxd 09.1.20 5:25 PM ページ 56
