3-2
Maintenance
4st 9.9/15/20 2008

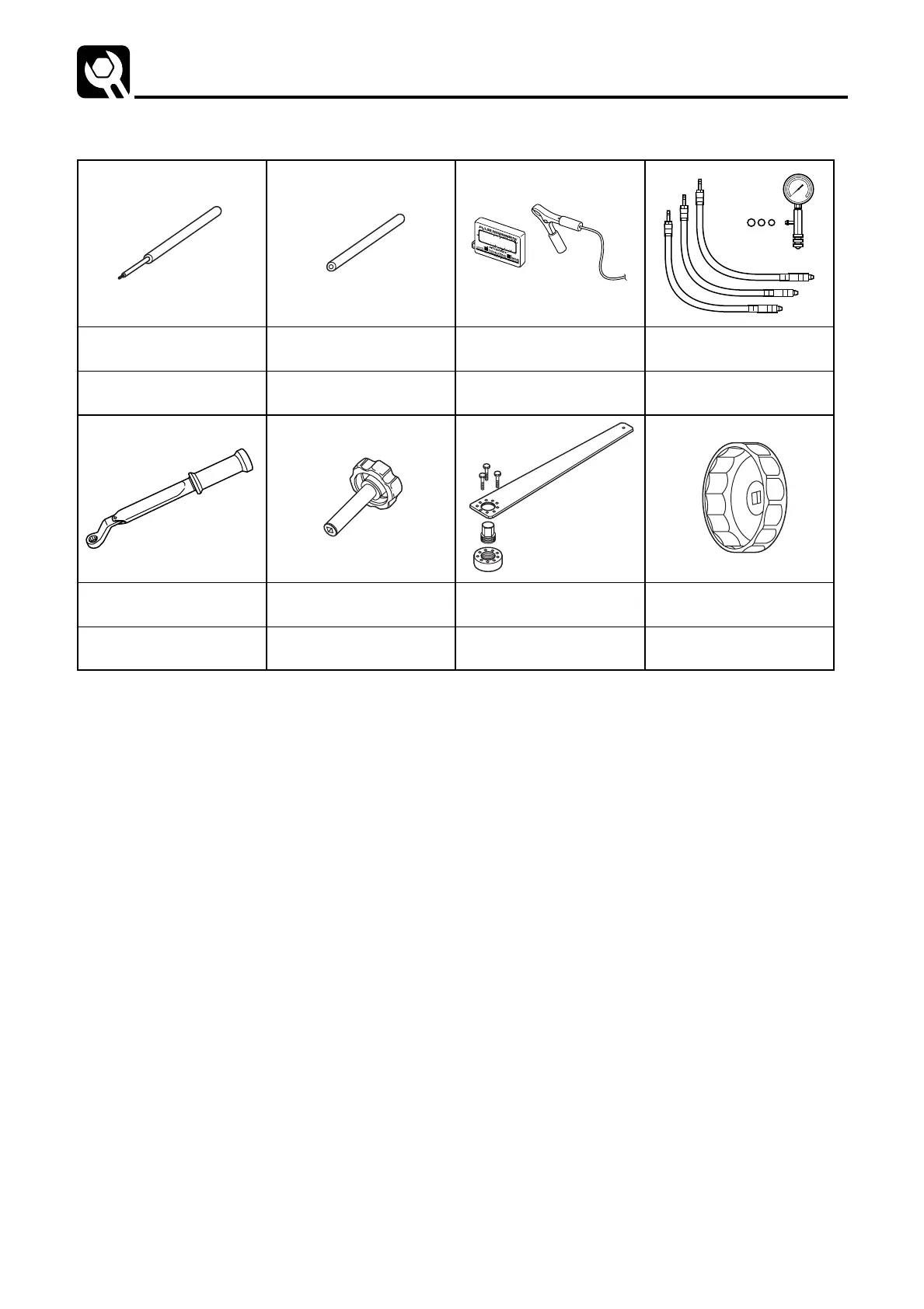

1.Special T
ools
Measuring compression
pressure
Adjusting valve clearance
Adjusting valve clearance
Removing/installing flywheel
Measuring engine revolution
speed
Compression Gauge
P/N. 3AC-99030-0
Valve Clearance Driver
P/N. 3AC-99071-0
Torque Wrench
P/N. 3AC-99070-0
Flywheel Puller Kit
P/N. 369-72211-0
Tachometer
P/N. 3AC-99010-0
Oil Filter Wrench
P/N. 3AC-99090-0
Spring Pin Tool A
P/N. 345-72227-0
Removing/installing oil filter
Removing spring pin
Spring Pin Tool B
P/N. 345-72228-0
Installing spring pin
E_MFS20C_ch03_090105.qxd
09.1.20
5:23
PM
ページ
2
48
