3-14
Maintenance
4st 9.9/15/20 2008

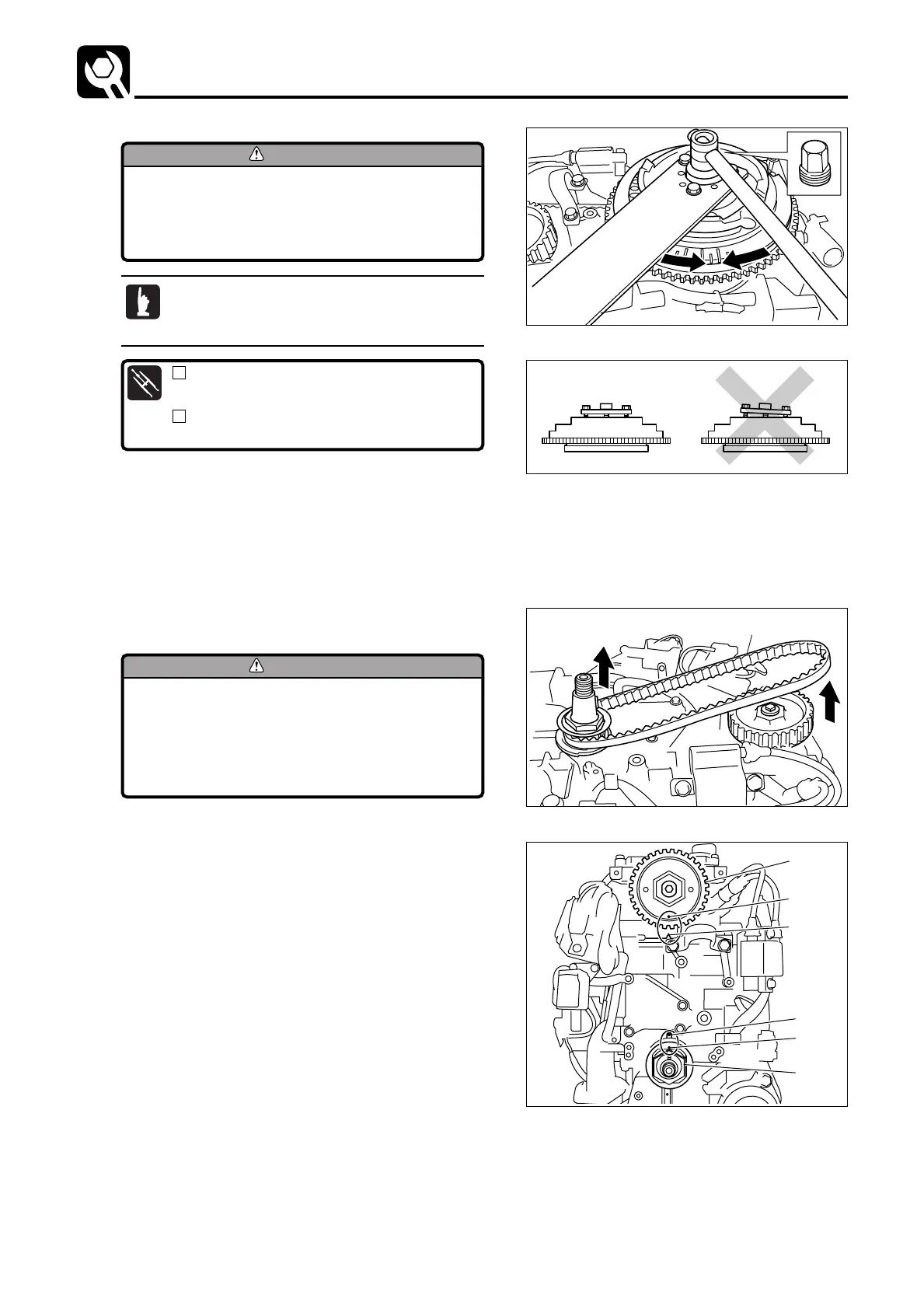

9. Check that cam shaft pulley's "●1" mark a and cylinder
head's "▲" b, and belt guide 5 's "● " mark c and
cylinder's "o" d are aligned with each other respectively.
5. Use flywheel puller bolt to remove flywheel and then key.
6. Disconnect couplers (4) of alternator and pulser coils, and
then, remove alternator and coil bracket ass'y.
7. Remove engine hanger.
8. Remove timing belt 4 from cam shaft pulley and then from
timing pulley.
To prevent damages to engine and special
tools, tighten flywheel puller set bolts
evenly and keep flywheel puller parallel to
flywheel while working.
Flywheel Puller :
Use puller included in the following puller kit.
Flywheel Puller Kit :
P/N. 369-72211-0
B
A
4
Do not turn timing pulley and cam shaft
pulley with timing belt removed. Doing so
can make pistons and valves interfere with
each other, possibly resulting in damages
to these parts.
Screw puller onto crankshaft end until flywheel is
disengaged from tapered section of crankshaft.
E_MFS20C_ch03_090105.qxd 09.1.20 5:23 PM ページ 14
