TOHATSU MFS 20C User Manual

3-21
3
4st 9.9/15/20 2008
7
6
8

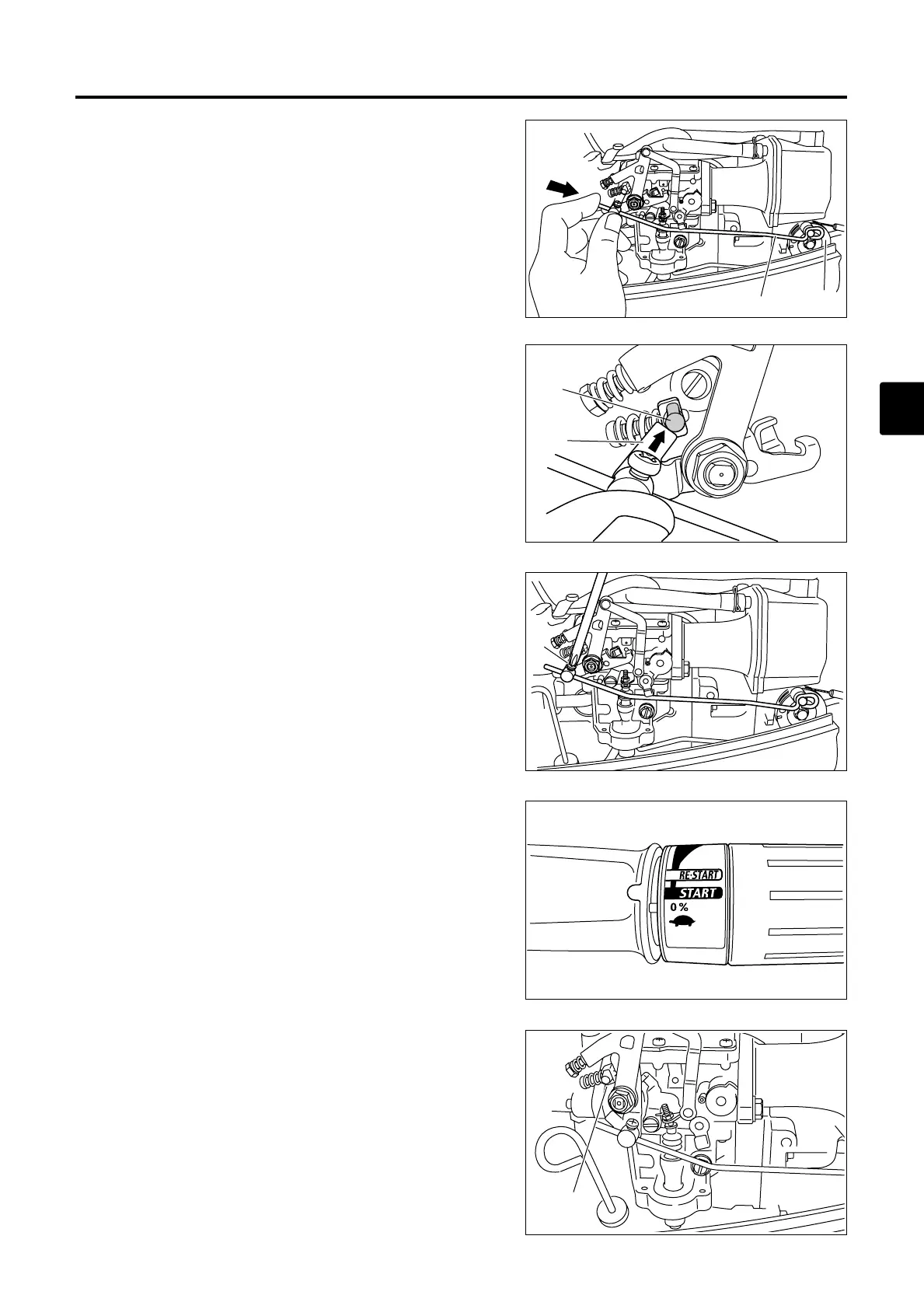

7. Turn throttle grip to START position again.
8. Carburetor’s link should touch idle stopper 9.
4
5
4. Attach throttle rod 4 to throttle drum 5, and push the rod
toward direction shown with arrow.
9
5. Open throttle to a position where carburetor link 6 touches
full open stopper 7.
6. When carburetor’s full open position and throttle rod position
are determined, fix with screw 8.
E_MFS20C_ch03_090105.qxd 09.1.20 5:23 PM ページ 21
