Document Ref 947571-001 Rev 2 Page 4-5

Quantium 110 & 210 Installation Manual Packaging & Handling

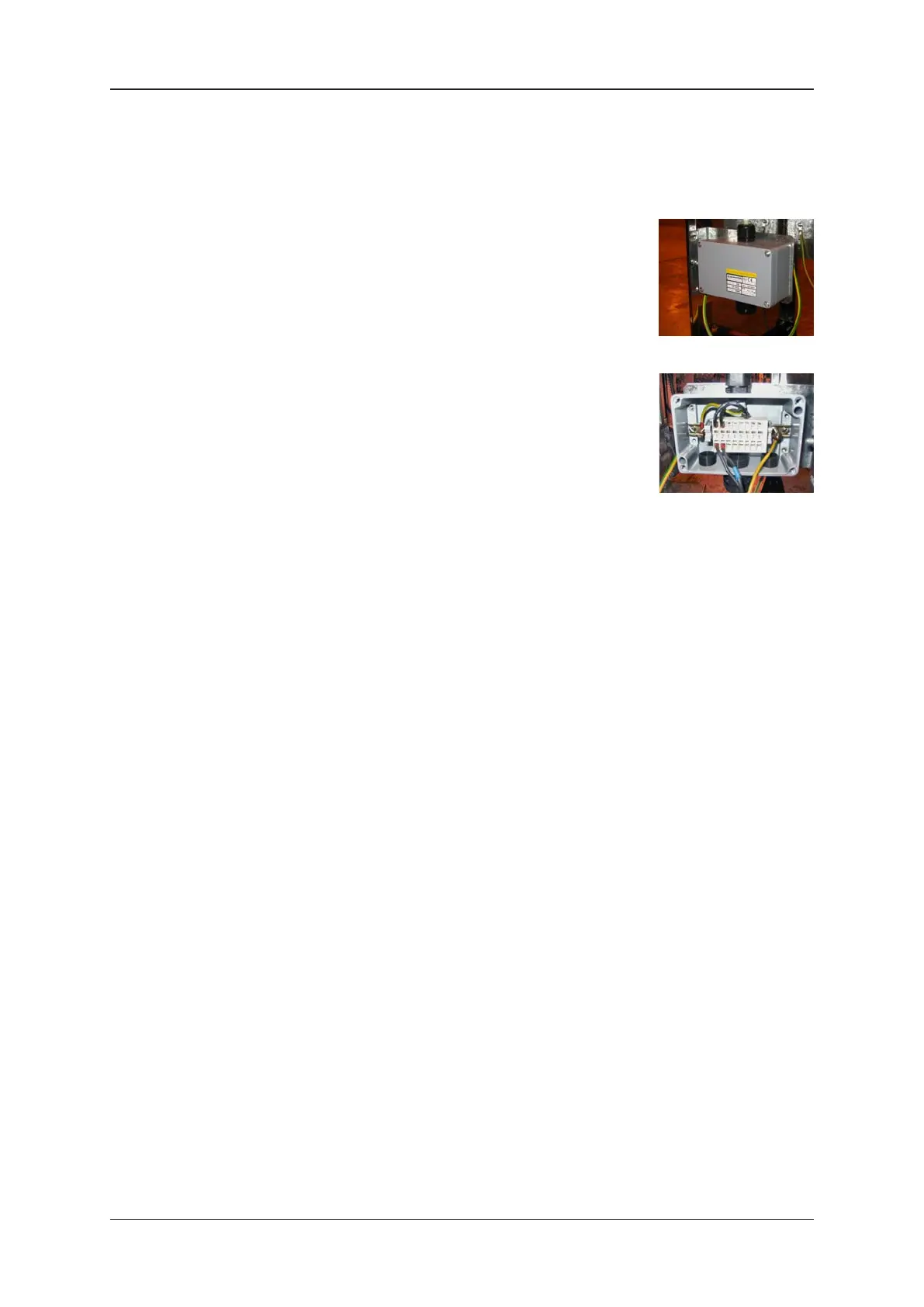

4.8 Access the Junction Box

4.8.1 BERNSTEIN JUNCTION BOX

The following instructions detail the procedure to be followed to allow safe

access to the junction box connections.

INSTRUCTIONS

1) Follow the instructions given to access the hydraulic

area.

2) Locate the Junction Box in the hydraulic area.

3) Using a screwdriver, loosen and remove the four

screws on the junction box cover and remove

completely.

4) Refer to the wiring diagrams in section 5.

5) To re-fit the junction box cover, follow the instructions

in reverse.
