TOMAHAWK TW-9010

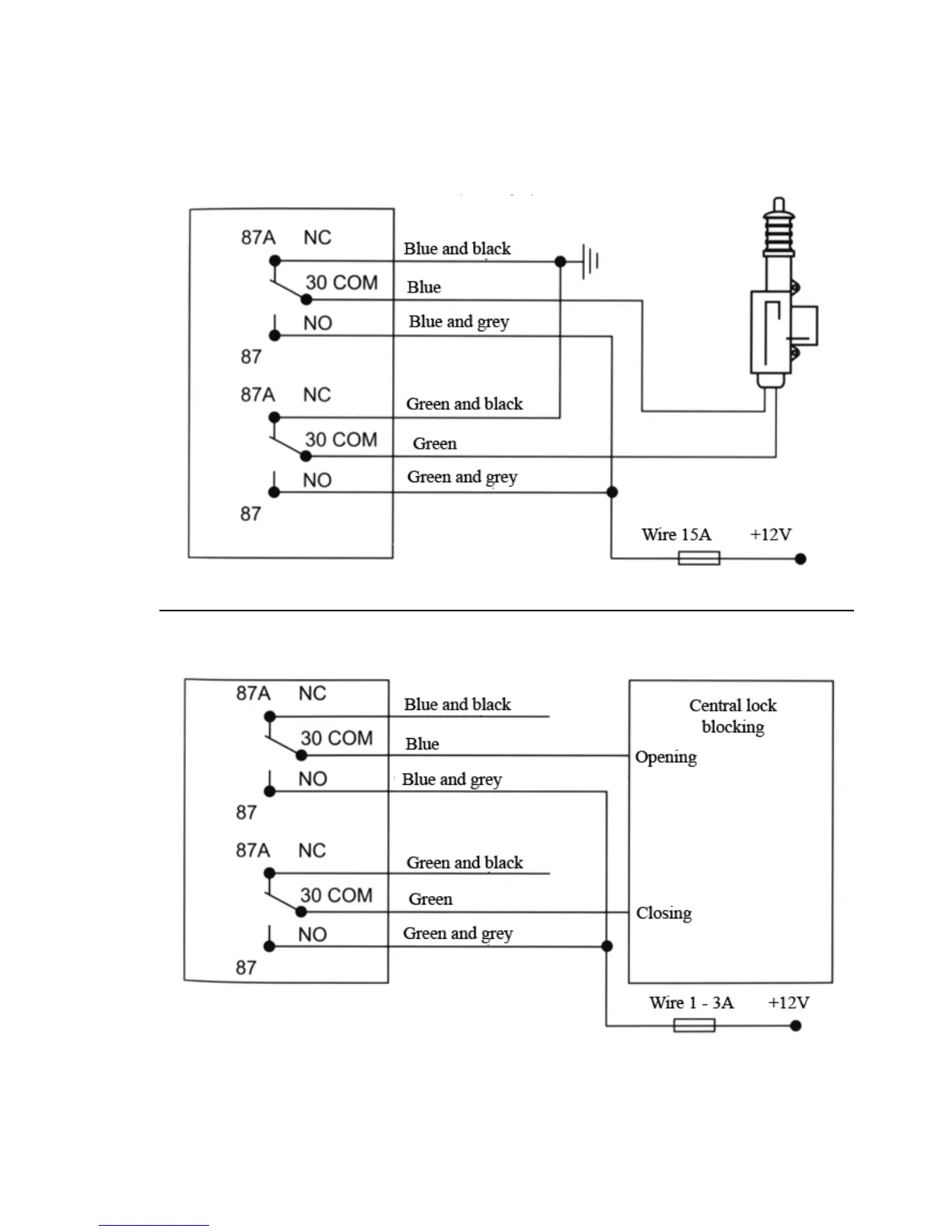

Connection of auxiliary electric drive
Control time 0.8 sec
Diagram 4
Central lock positive control
Control time 0.8 sec
Diagram 5
33
