TOMAHAWK TW-9010

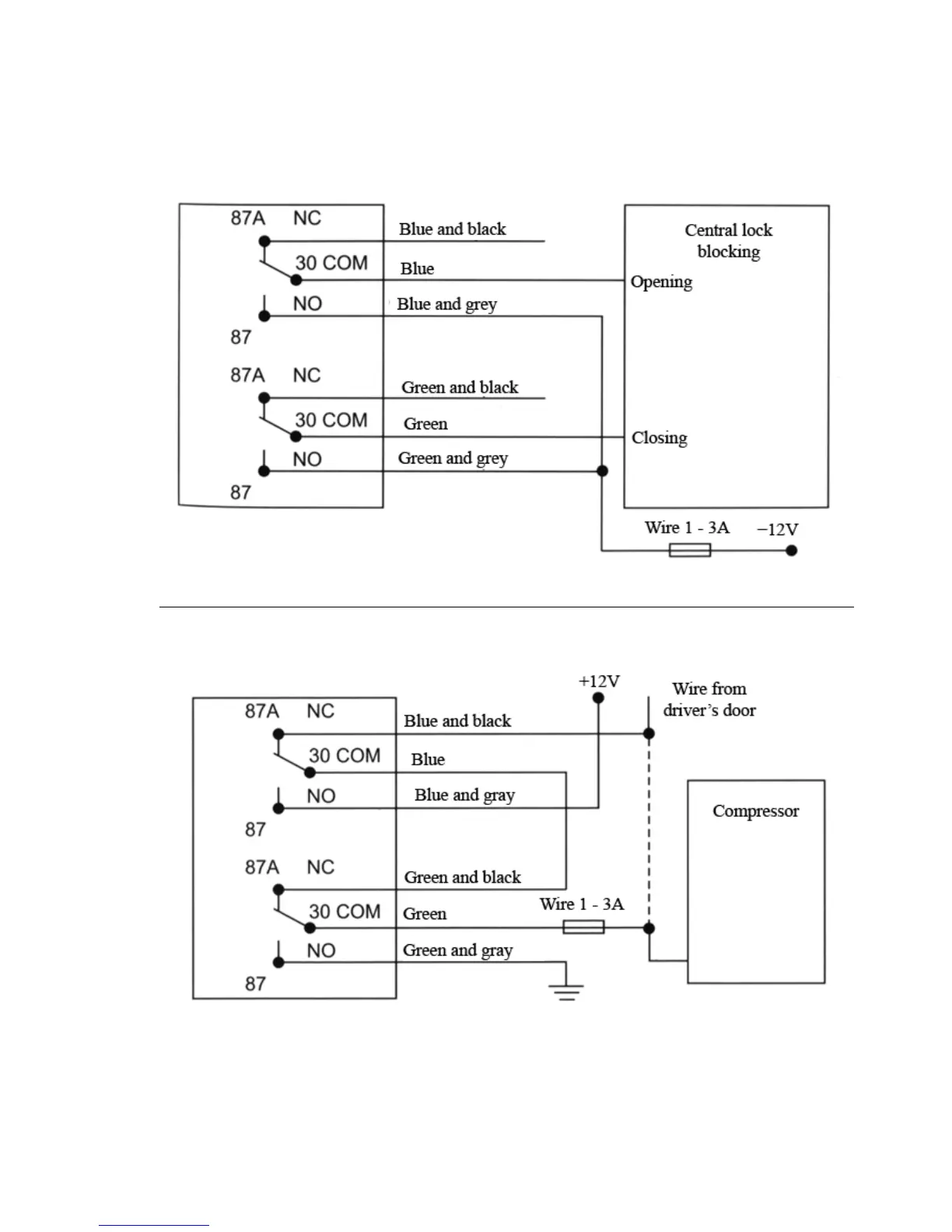

Central lock negative control
Control time 0.8 sec
Diagram 6
Pneumatic central lock (Audi, Mercedes)
Control time 3.6 sec
Diagram 7
34
