D4008 – EN EZ 2810 Operators Manual 37

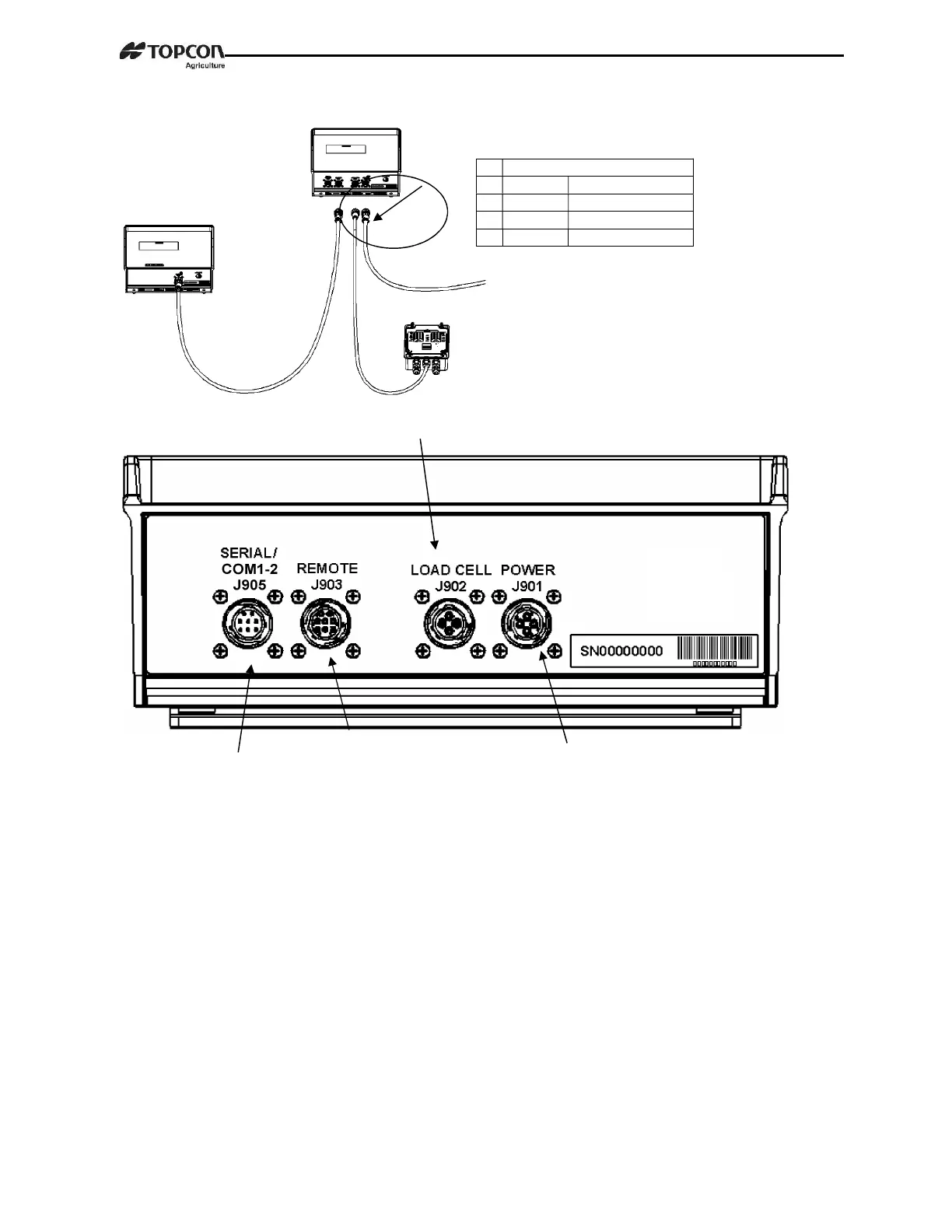

Indicator Connection Diagram
Bottom Panel Cable Connections
Scale
Remote Indicator
(Optional)
See J-Box
Connections
Power Cord
Pin To 12VDC Power Supply
1 Red +Terminal
2 Black -Terminal
3 Orange Alarm Out
4 Blue Remote Input
Digital
Input/output
Connection
(Optional)
Remote
Indicator
Connection
(Optional)
Power Cord
Connection
