Preparation
10
Communication between the RC-3 and a data collector
For communicating between the data collector and the RC-3R by means of Bluetooth.
For communicating between the data collector and the RC-3R by means of an RS-232C
connector, connect the cable to the RC-3’s RS-232C connector.
Mounting remote controller handle unit RC-3H onto the total station
Optical communications between total station and RC-3R, become possible by installing remote
controller handle unit RC-3H onto the total station.
1
Dismount the handle from total station.
2
Match the handle unit mounting marks for the RC-3H and total station.
3
Make sure that the fixing knob is tightly fastened.
Note
Ensure that the power switch of total station is off when mounting RC-3H.

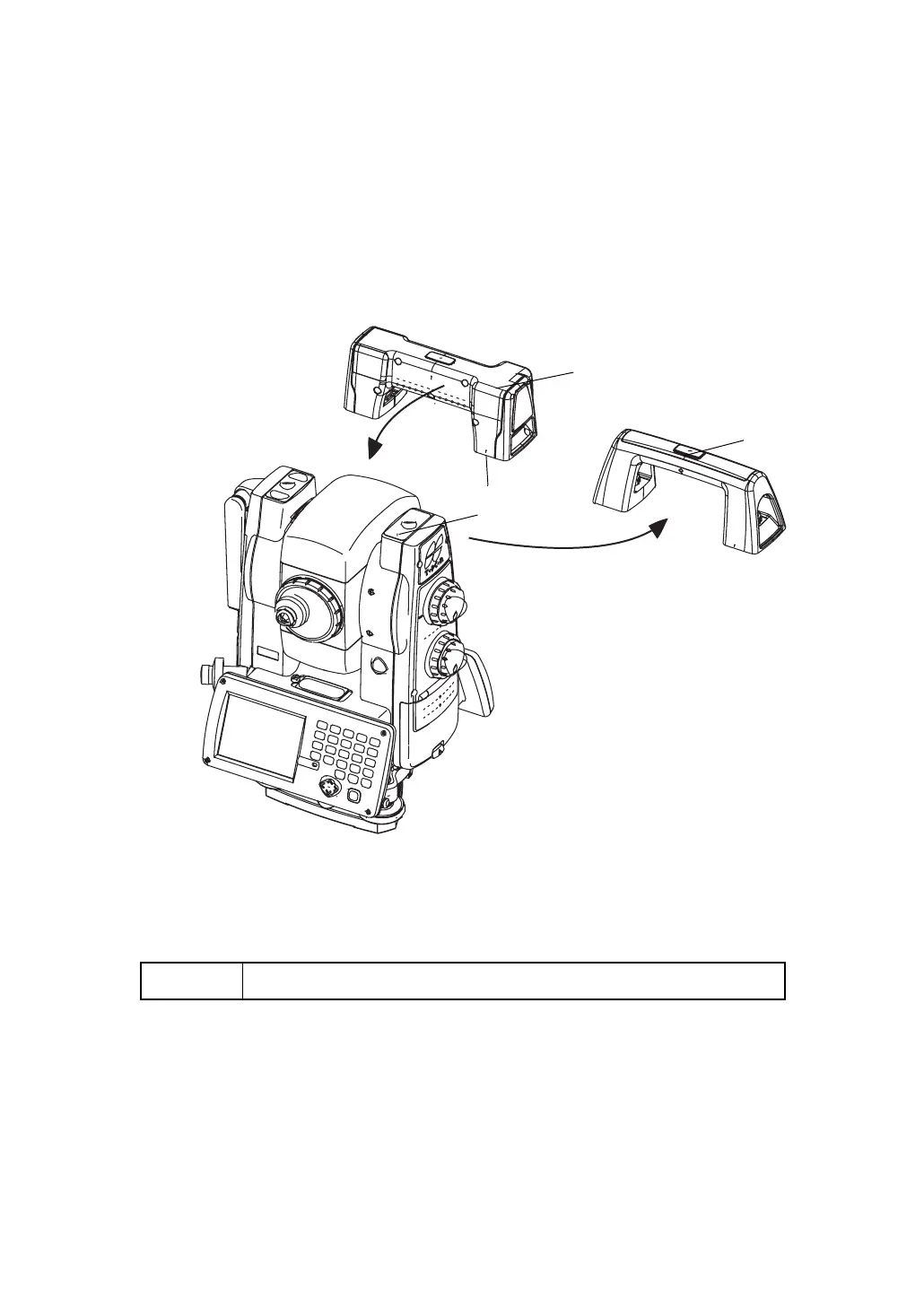

RC-3H
Handle unit
mounting mark
Handle
