Basic Operation
14

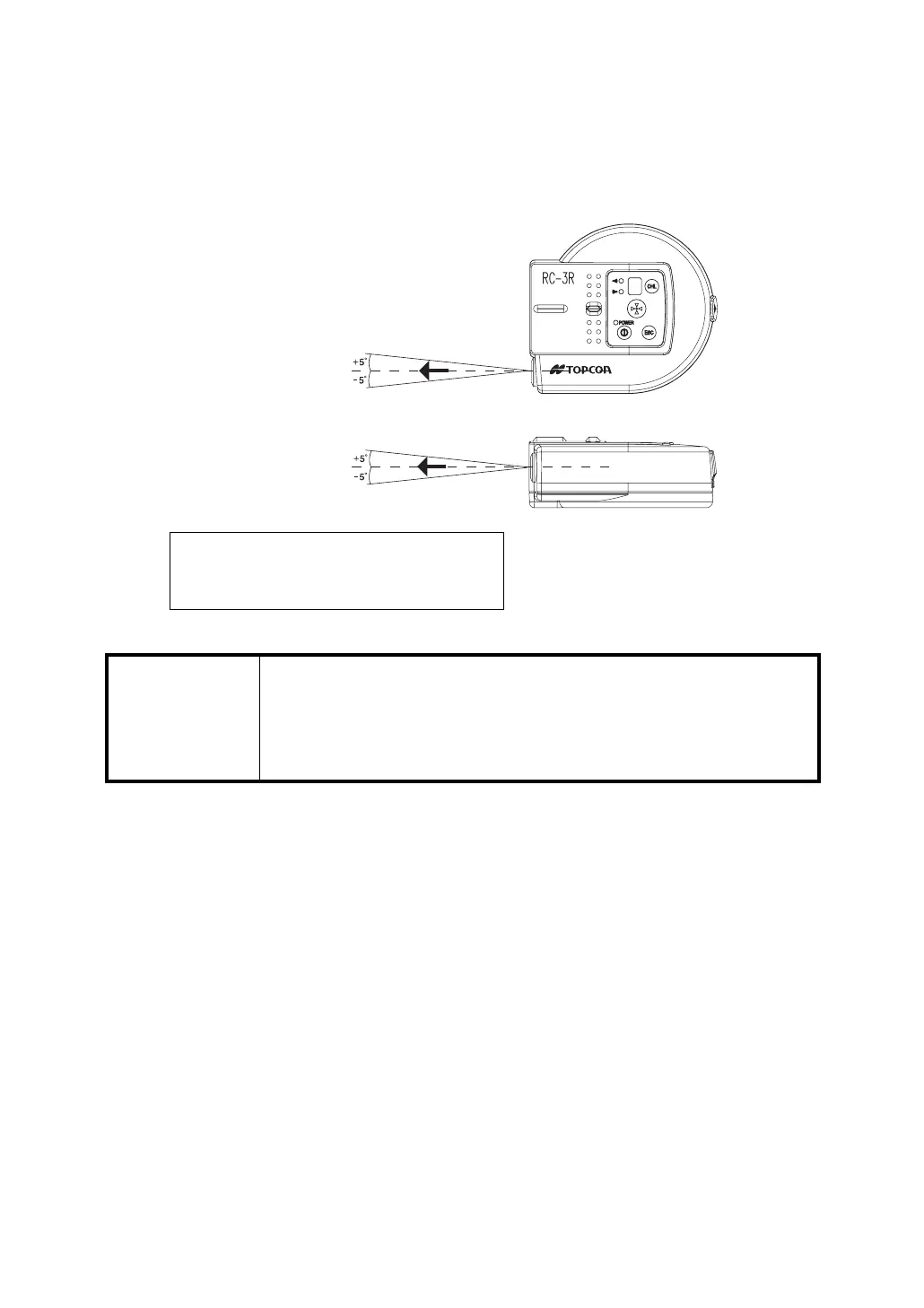

Light emitting angle
Laser beams are emitted from the emitting window of the RC-3R.
The angle of emitting laser beams is as follows.
Important
RC-3R should be kept aiming so that the total station always stays within the
above range of laser beam emission until the turn-round motions or optical
communications are completed.
If the aiming is out of above range while RC-3R is in turn-round motions or
optical communications, the turn-round or optical communications could not be
completed.
Light emitting angle
Light emitting angle
Top view
Side view
At greater distances, the laser light at
the edge of the beam field (angle) will
be weaker.
