Setting Mode
19
Communication Baud Rate
Setting can be done with the dip-switch on the battery section.
1
Remove battery cover and batteries.
2
Set by pressing the dip-switch with a pin.
Note
Dip-switch No.2-4 must be fixed to OFF position.
The RC-3R does not work correctly when the switch No.2-4 are set to
ON position.
Serial signal RS-232C
baud rate setting
Unused (fixed to OFF)
Unused (fixed to OFF)
Unused (fixed to OFF)
Dip-switch Setting Contents
1
OFF 9600
ON 4800
2 Unused (fixed to OFF) -----
3 Unused (fixed to OFF) -----
4 Unused (fixed to OFF) -----

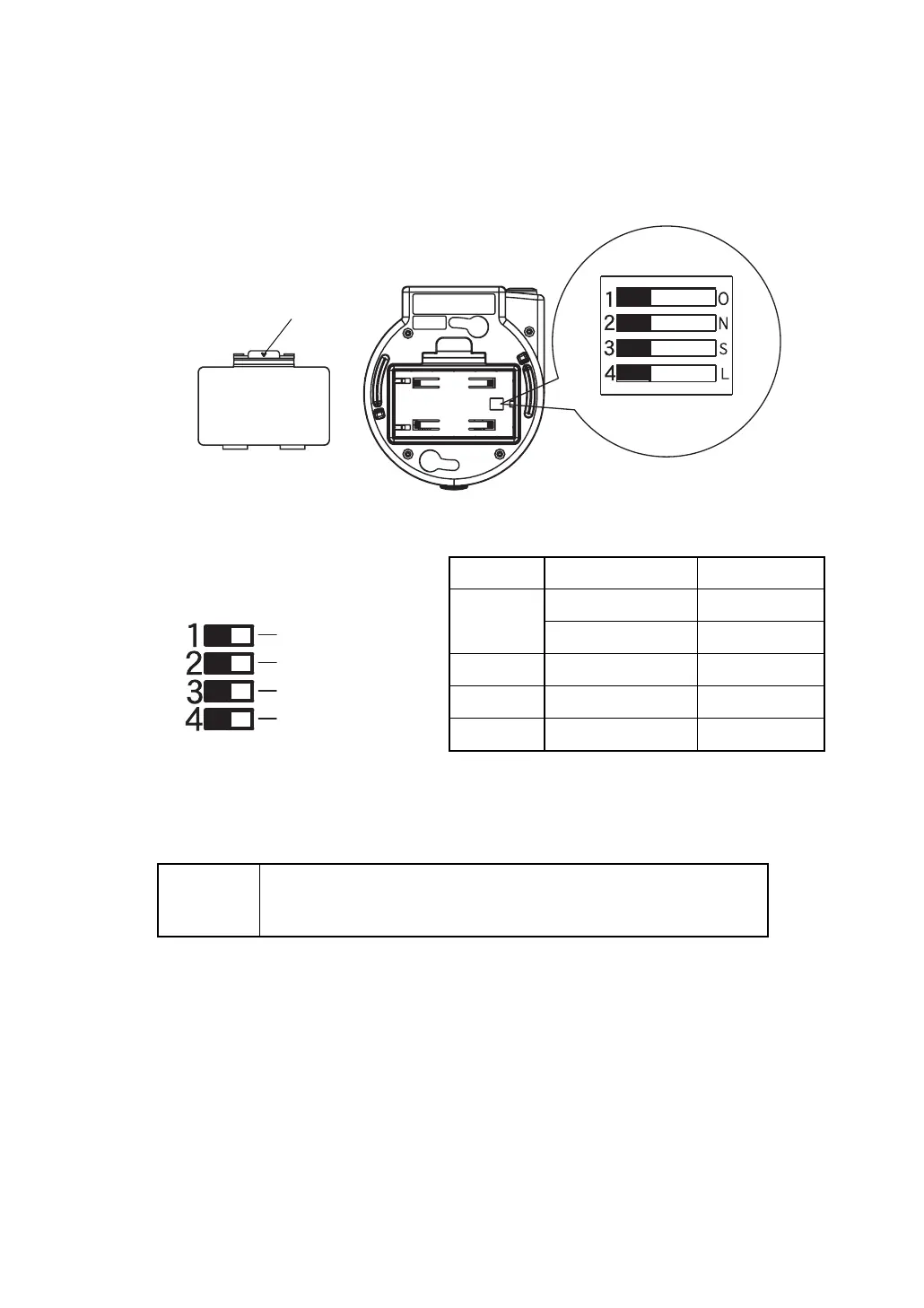

Battery cover
Battery cover
unhooking lever
Dip-switch
