Basic Operation
15
Light detecting range

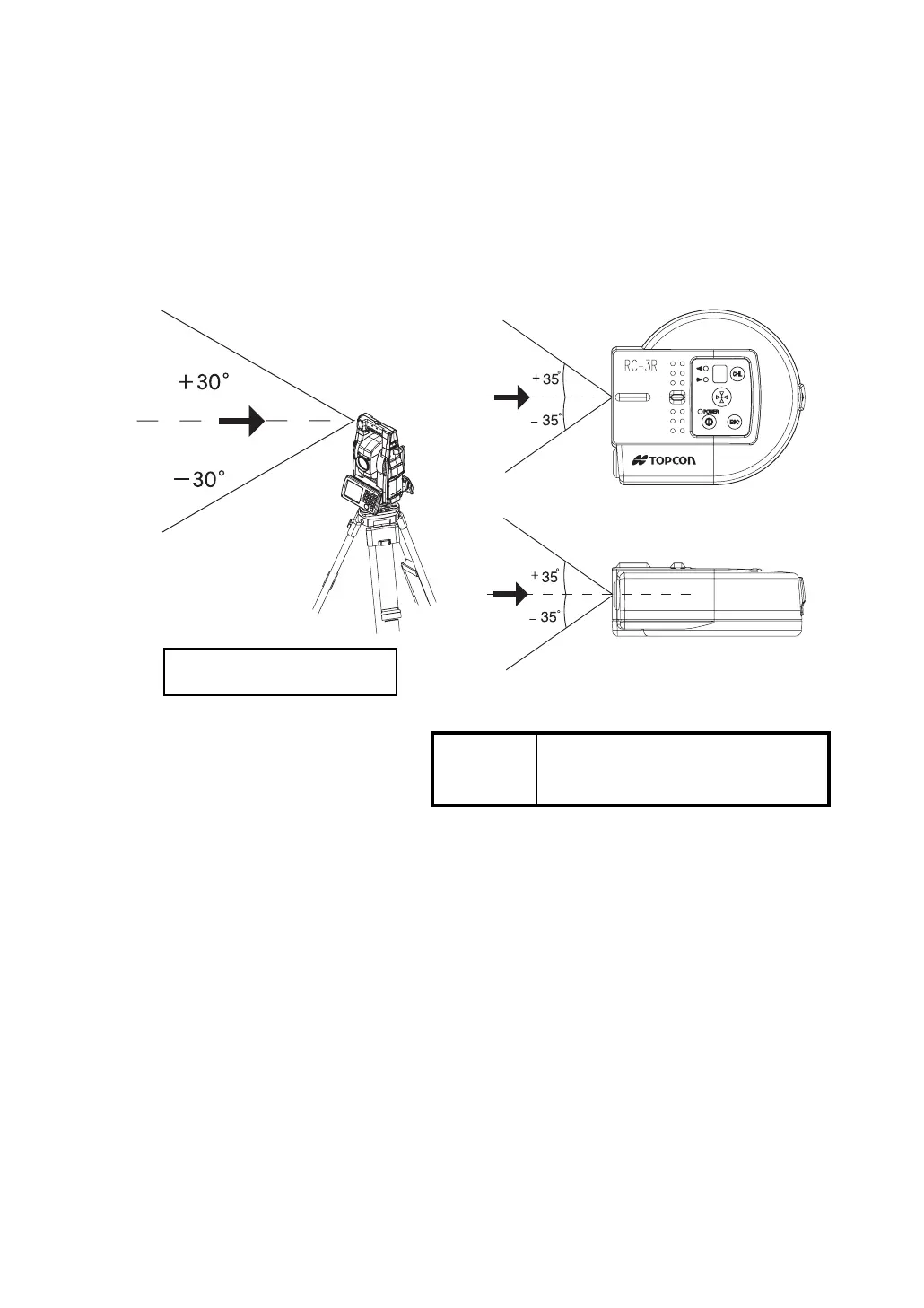

The detecting angles of RC-3R and RC-3H (Total station) are shown below:
Total station can only be turned round with the turn-round key under the condition that RC-3R
remains confined within the range as shown below where RC-3H can detect light.
RC-3R should be aimed in a way to always capture the total station within this range during
receiving data from the total station.
Important
The RC-3R must be aimed so as to
capture the total station within
above range during communicating.
Turn-round function can be
done within above range.
Top view
Side view
Detecting range
Detecting range
(RC-3H can detect the laser in all
horizontal direction.)
RC-3H
