Topcon RL-HV Series - Setting Grades for 2 S Model

26
7. APPLIED OPERATIONON

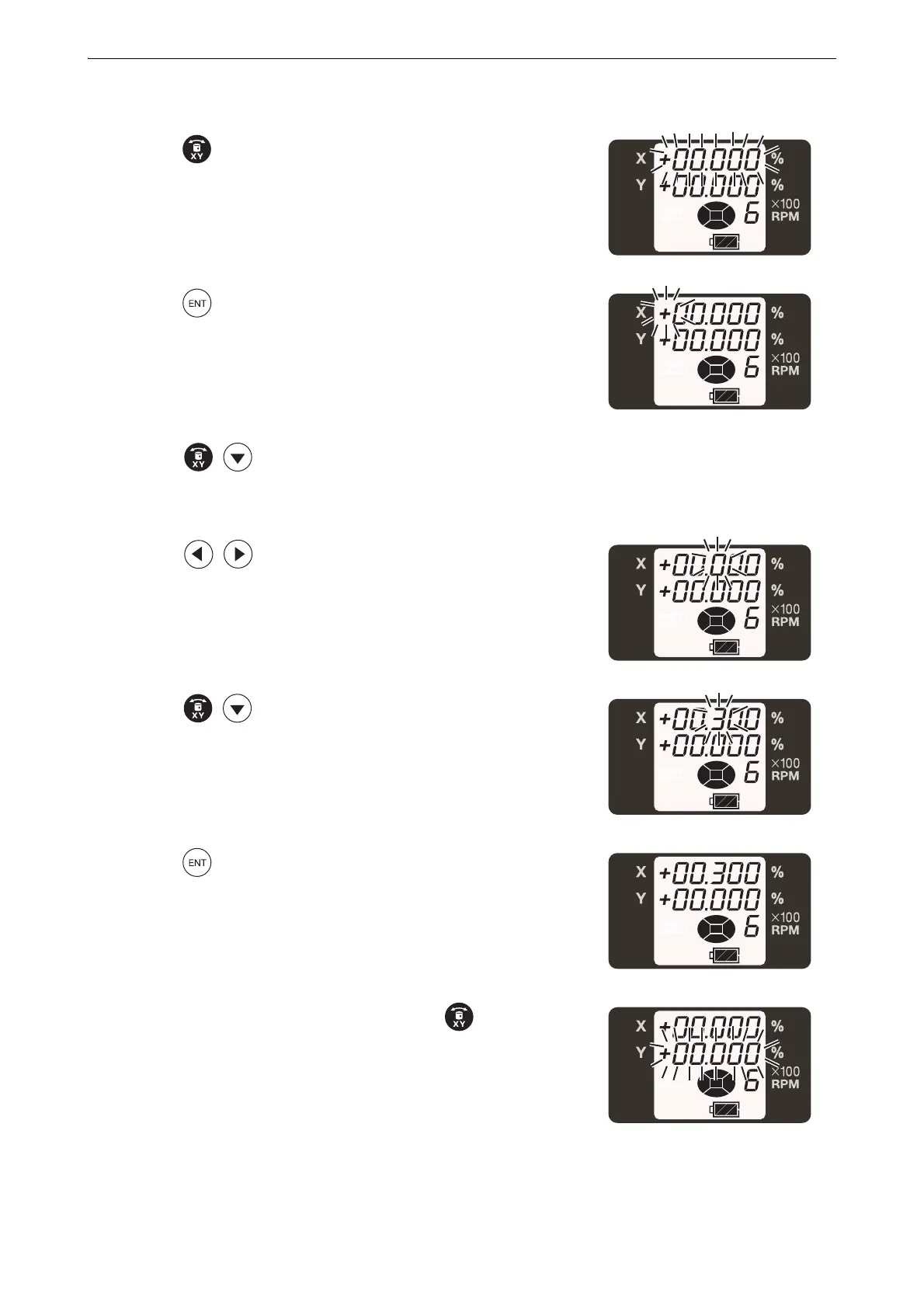

■ How to set grades (In case of 2S)
1. Press the key and the X axis display will start blinking.
It is possible to enter the grade. (Pressing the key will toggle
between the X axis and Y axis.)
2. Press the key.
3. Press the keys and select the mark (plus or minus).
4. Press the keys to change the digit position.
5. Press the keys to increase or decrease the value of the
digit.
6. Press the key to confirm the value.
7. When setting the grade for the Y axis, press the key. The Y
axis display will start blinking.
Set up the grade in the same manner as the X axis.
