Introduction
1
SRL-35 Operator’s Manual P/N: 1003224-01
Introduction
The SRL-35 is an IP67 classified UHF radio modem with a high power (35W) transmitter, wide 70 MHz tuning
range (403...473 MHz) in one hardware and selectable channel spacing. The SRL-35 can offer radio speeds up
to 19.2 kbps and has a selectable serial interface speed between 300 … 38 400 bps.
The SRL-35 includes a built-in LCD display, offering the user both new features and increased flexibility. No
longer do you have to rely on access to a PC or terminal device to check or alter the configuration of the unit,
now this can be achieved by viewing the LCD Display and using the four (4) push buttons. The display is also a
useful tool in testing the radio connection between radio modems.
The SRL-35 facilitates the construction of large radio networks using the built-in Message Routing function,
which is both fully transparent to the user and can be used with most system protocols.
The radio modem also offers option of error correction, utilizing the FEC method (Forward Error Correction).
FEC can be used to minimize errors caused by noisy channels.

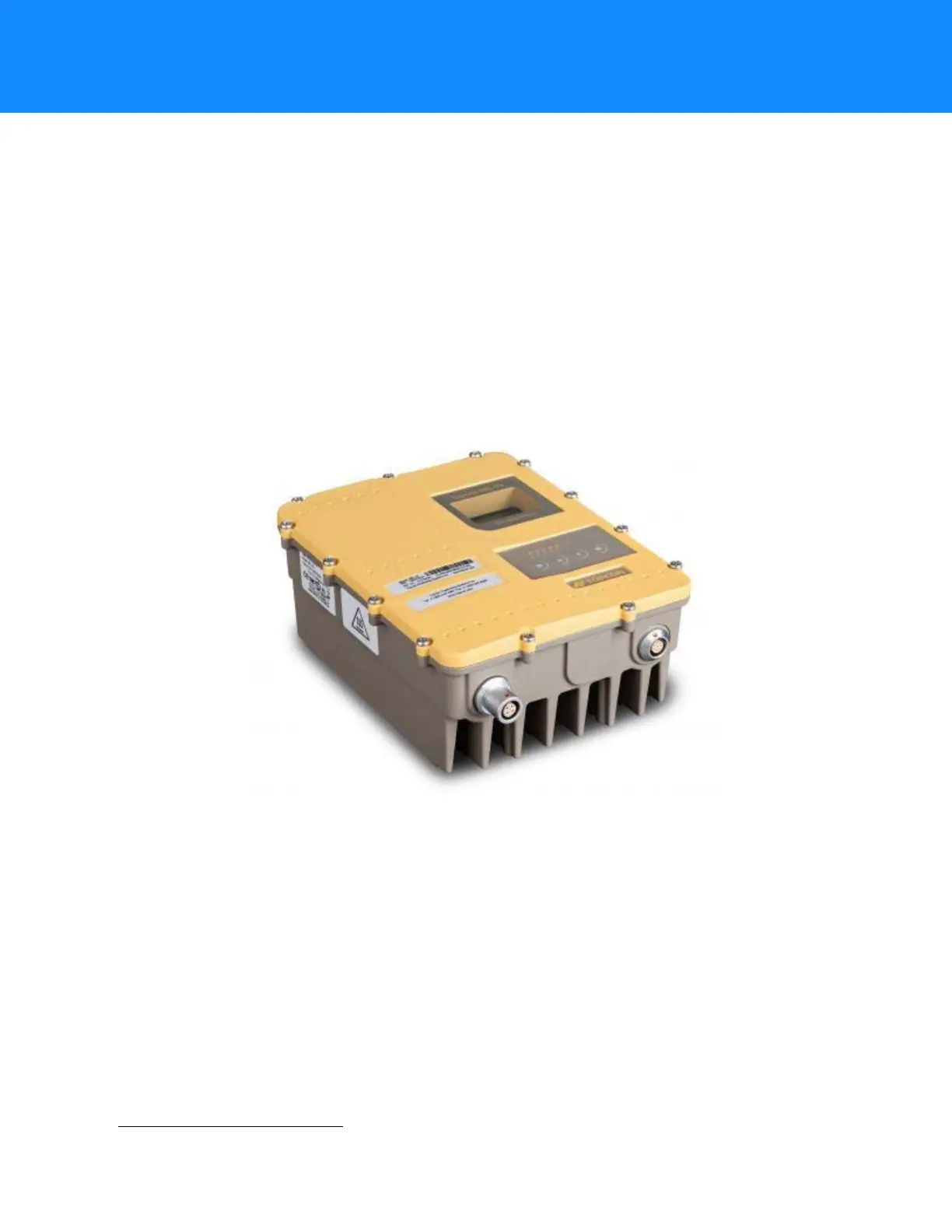

Figure 1: SRL-35
•
High output power of up to 35Watt
1
•
Wide 70 MHz (403-473 MHz) operating range
•
User selectable channel spacing (12.5, 20 or 25 kHz)
•
Fully compatible with third party radio broadcast
•
Multi-function user interface to indicate current operating status and configure the radio modem
Automatic prevention of overheating
•
Industry standard IP-67 rating to withstand harsh surveying and construction environment
1. 25W limited output power version is available as an order option for geographical areas where regulatory restriction on output power applies.
