Tormax Automatic Smart Drive 1101 - Sliding Lever Mounting Procedure; 4.3 Sliding Lever Mounting Instructions; Template, Drilling, and Cone Attachment; Fastening Operator, Rail, and Trestle

Installation On Site SWINGDOOR Smart Drive 1101 T-1132 e 13

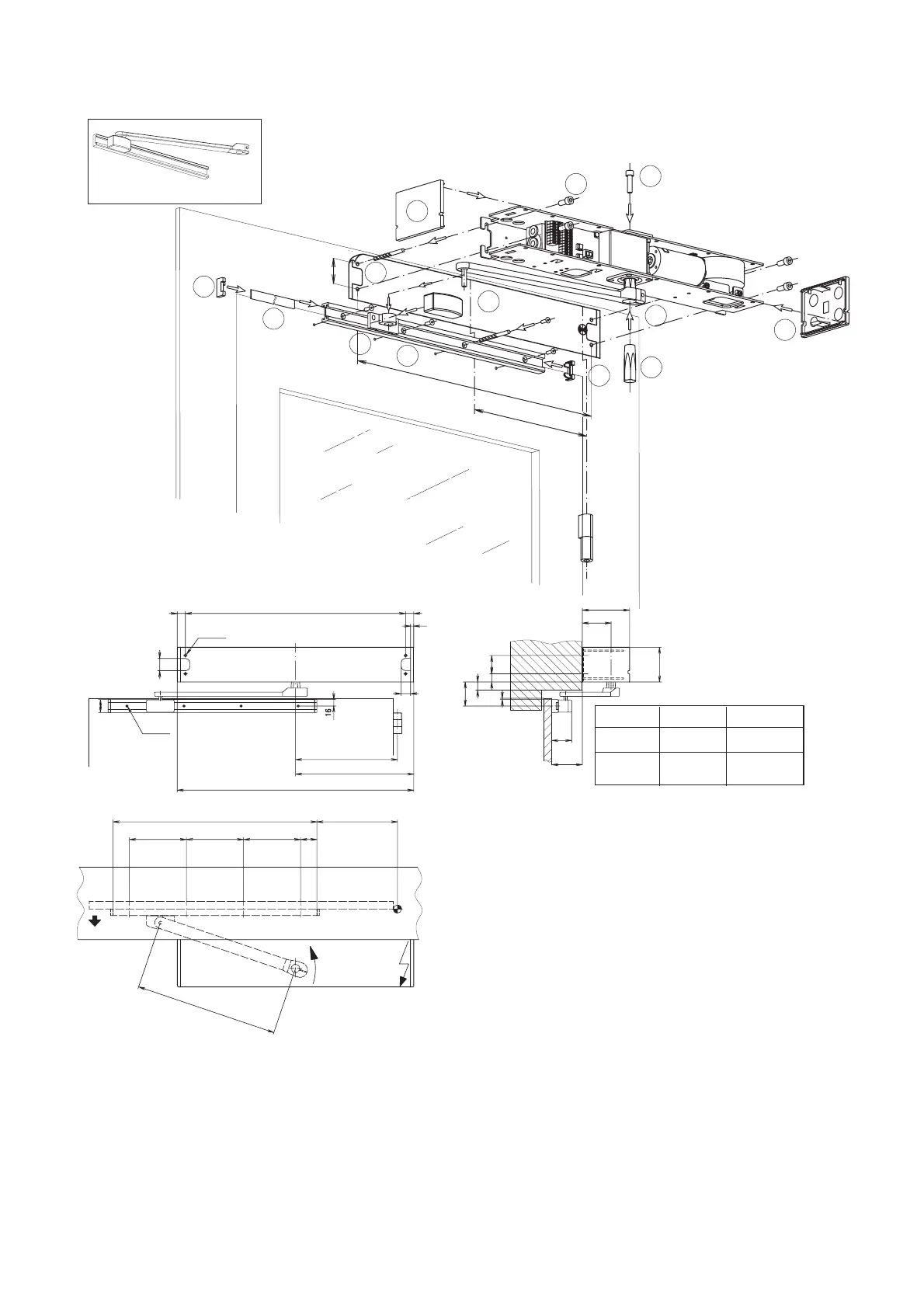

4.3 Sliding Lever ◆
T1132/11
A) Glue on template
B) Drill holes
C) Attach cone (length according Y)
D) Tighten hexagon-socket screw in a way that the
cone can be turned by hand
E) Fasten operator
F) Fasten sliding rail according to dimensional
specifications on door leaf
G) Insert cover profile
H) insert bearing trestle into sliding rail
I) Mount side covers of sliding rail
Connect to mains,
Trigger factory reset, (see paragraph 7.3 programmimg table)
Choose operating mode OPEN (with operating mode switch ◆ or by connecting terminals no 2 and 3)
axis will turn 20°
K) Slide connecting part over cone and push up to the operator
insert other end completely into bearing threstle, tighten cone Konus (hexagon-socket screw) and connecting part
L) Fasten covers
M) Snap in side plates
C
D
E
G
K
A
B
450
250
45
F
H
I
I
T1132/38
M
M
T1132/39
U
W
0 – 20 59 ± 3
X
0…+150
0 – 80 119 ± 3
0…+150
540
20
4x Ø5
4x Ø7
30
160 + x/2
290
20
23
32
250
40
140
140
350
X
20
70.5
116
W
U
3±3
85
580
8
140
45
49
500
