5 Mechanical Adjustments
The internal OPEN end-stop is only to be used as a safety device (e.g. wind load, manual
operation). In automatic operation it must not be hit!
• Open the door to the greatest possible opening width and secure it.
• Adjust the OPEN end-stop.
The door should only be opened so far that the standard linkage cannot tip over and the
sliding lever does not leave the rail.

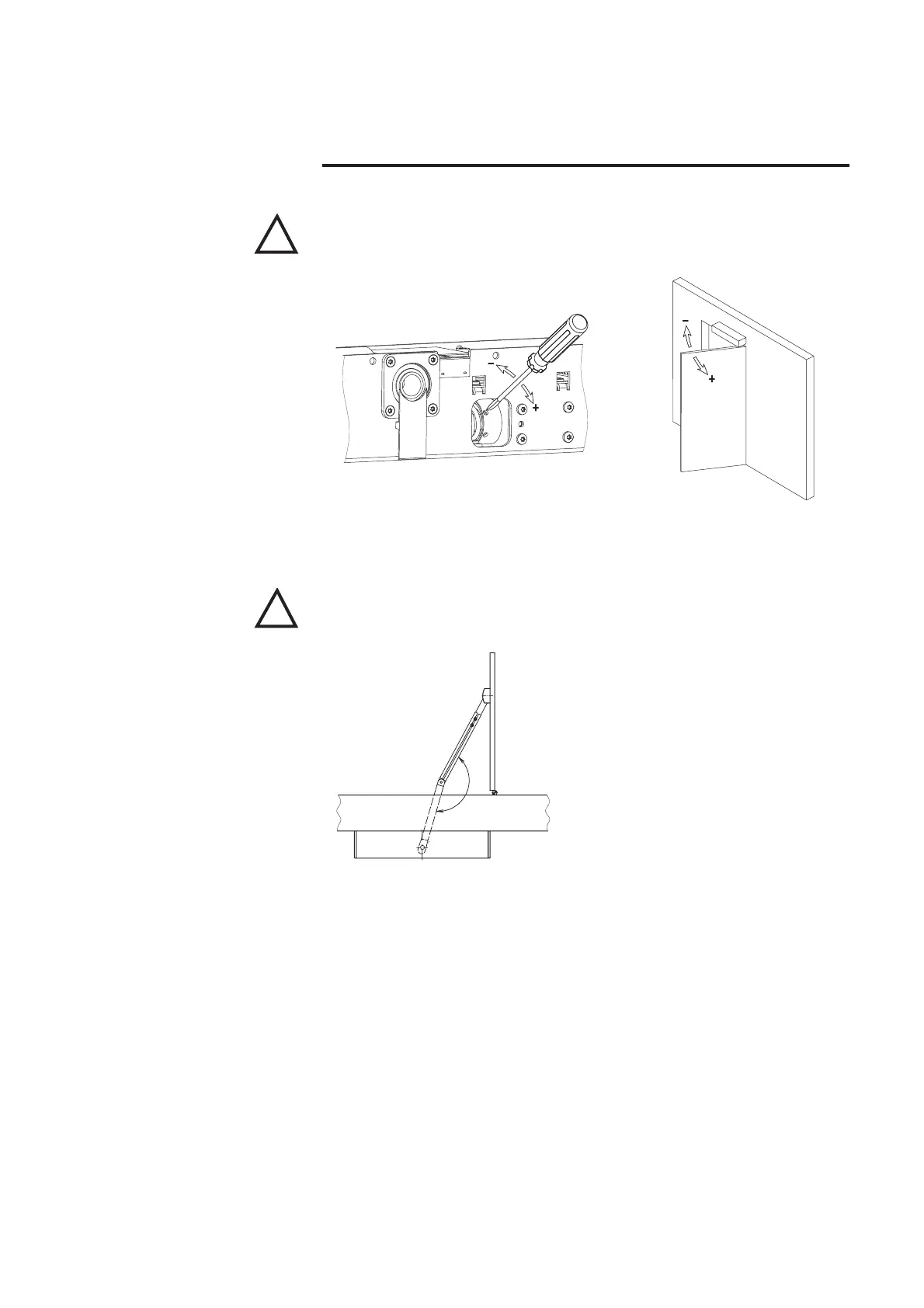

Door in open position at the end stop (internal
OPEN end-stop or door stopper).
T1132/30
!
!
max. 170 °
T1132/35
