Tormax Automatic Smart Drive 1101 - Terminal Connections and Safety Device Wiring; Detailed Terminal Connections Diagram; Wiring for Monitored Safety Devices; Wiring for Non-Monitored Safety Devices

Installation On Site SWINGDOOR Smart Drive 1101 T-1132 e 17

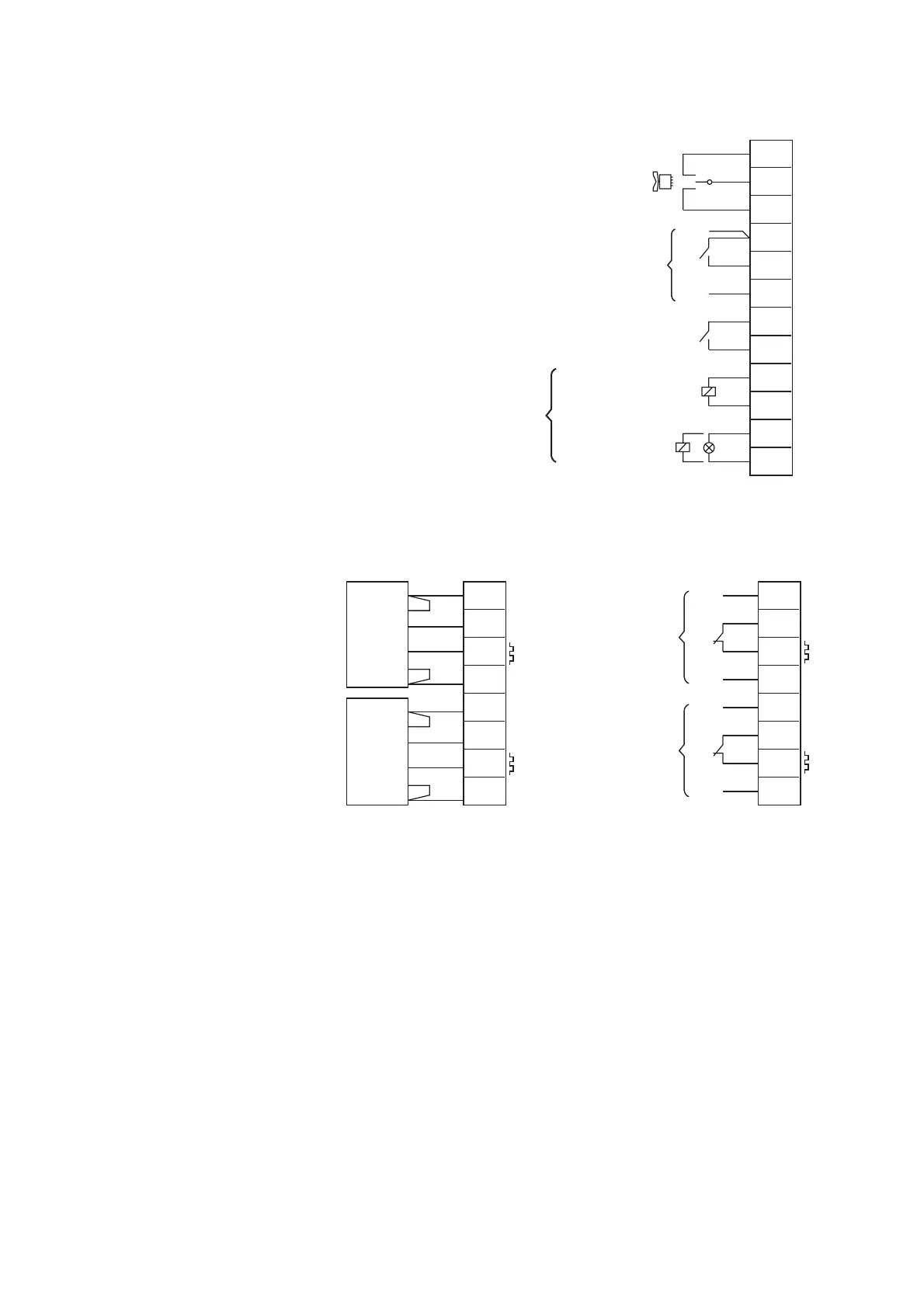

Terminal Connections
Legend:
* programmable
+24 V 24 VDC (21 … 24 VDC)
IN Input 24 VDC / 3 mA
OUT Output NPN integrated protective diode
T1132/3e
1 2 3 4 5 6 7 8 9 10 11 12
IN
GND
IN
GND
IN
+24 V
GND
IN
OUT
+24 V
OUT
+24 V
Activator
Status indication
door closed/*open
OFF
AUTO
OPEN
Key switch
Door lock 24 VDC
locked currentless
* unlocked currentless
–
+
No protective
circuit necessary
T1132/6e
Safety devices without
monitoring
13 14 15 16 17 18 19 20
–
+
GND
IN
OUT
24 V
GND
IN
OUT
24 V
+
+
–
+
Safety device
in opening direction
Safety device in
closing direction /
*Swing area
Safety devices with
monitoring
Safety device
in opening direction
13 14 15 16 17 18 19 20
Safety device in
closing direction
BEA
Eye-
tech
–
+
BEA
Eye-
tech
–
+
1
7
6
5
2
8
7
6
5
2
8
GND
IN
OUT
24 V
GND
IN
OUT
24 V
+
+
1
