Verifying Height of Cut Adjustment and Leveling Front Roller (Fig. 9)
(Floating Cutting Units)
1. On gauge bar, set head of screw to desired Height-of
-Cut. This measurement is from bar face to underside
of screw head. Gauge bar (Toro Part No. 13-8199) may
be obtained from your local Toro Distributor.
2. Slightly loosen (crack) nut securing each front roller
bracket to angle bracket.
3. Place the bar across the front and rear rollers and
adjust the front roller support screws until the underside
of screw head engages the bedknife cutting edge. Do
this on both ends of reel.
4. Tighten nuts securing roller brackets.

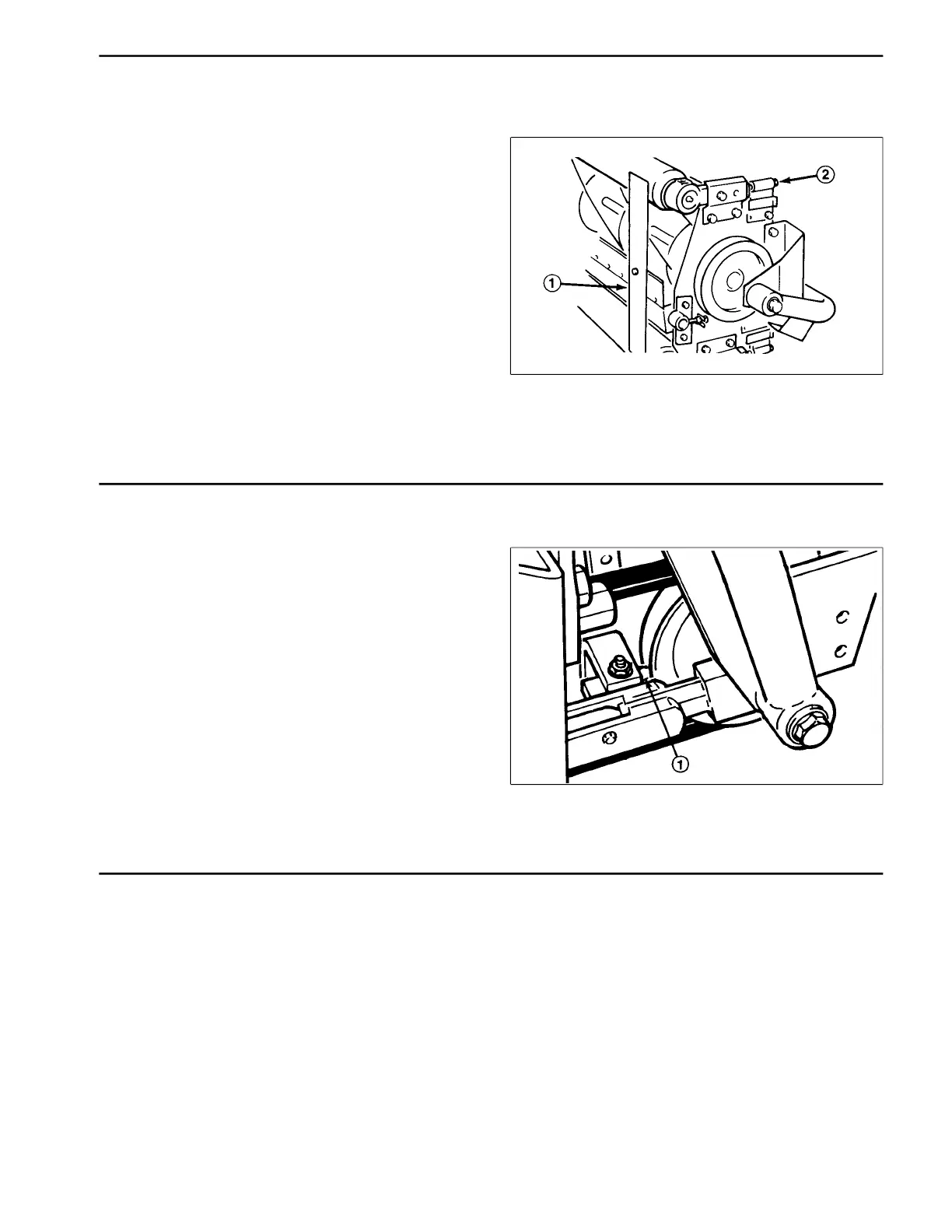

Figure 9
1. Gauge bar
2. Front roller support screw
Pulley Cleaner Adjustment (Fig. 10)
1. Adjust cleaner bracket so it is centered in groove of
pulley and tighten carriage bolt and locknut.
2. Adjust cleaner bracket so there is approximately
.030 – .060 in. clearance between bracket and pulley,
then tighten capscrew and locknut.
Figure 10
1. Cleaner bracket
Counterbalance Spring Adjustment
See Counterbalance Spring Installation in Repairs sec-
tion of this chapter.
Reelmaster
®
216/216-D Page 9 - 11 Set Up and Adjustments
