Test Hook-up No. 4: Traction Pressure (Fig. 21)
Gauge Connection
Connect a 10,000 PSI hydraulic pressure gauge to
forward traction pressure gauge port.
TEST A: Traction Pressure
1. Make sure pump drive belt is properly adjusted and
in good condition.
2. Make sure hydraulic oil is at operating temperature.
3. Operate engine at full speed:
Reelmaster 216: 3600 ± 100 RPM
Reelmaster 216-D: 3200 ± 100 RPM
4. Attach a heavy chain to rear frame of machine and
then to something solid in shop. Engage parking brake.
CAUTION
Keep everyone clear from the front of unit
during traction system tests. Operator must
be on seat or the safety interlock will stop the
engine when the traction pedal is depressed.

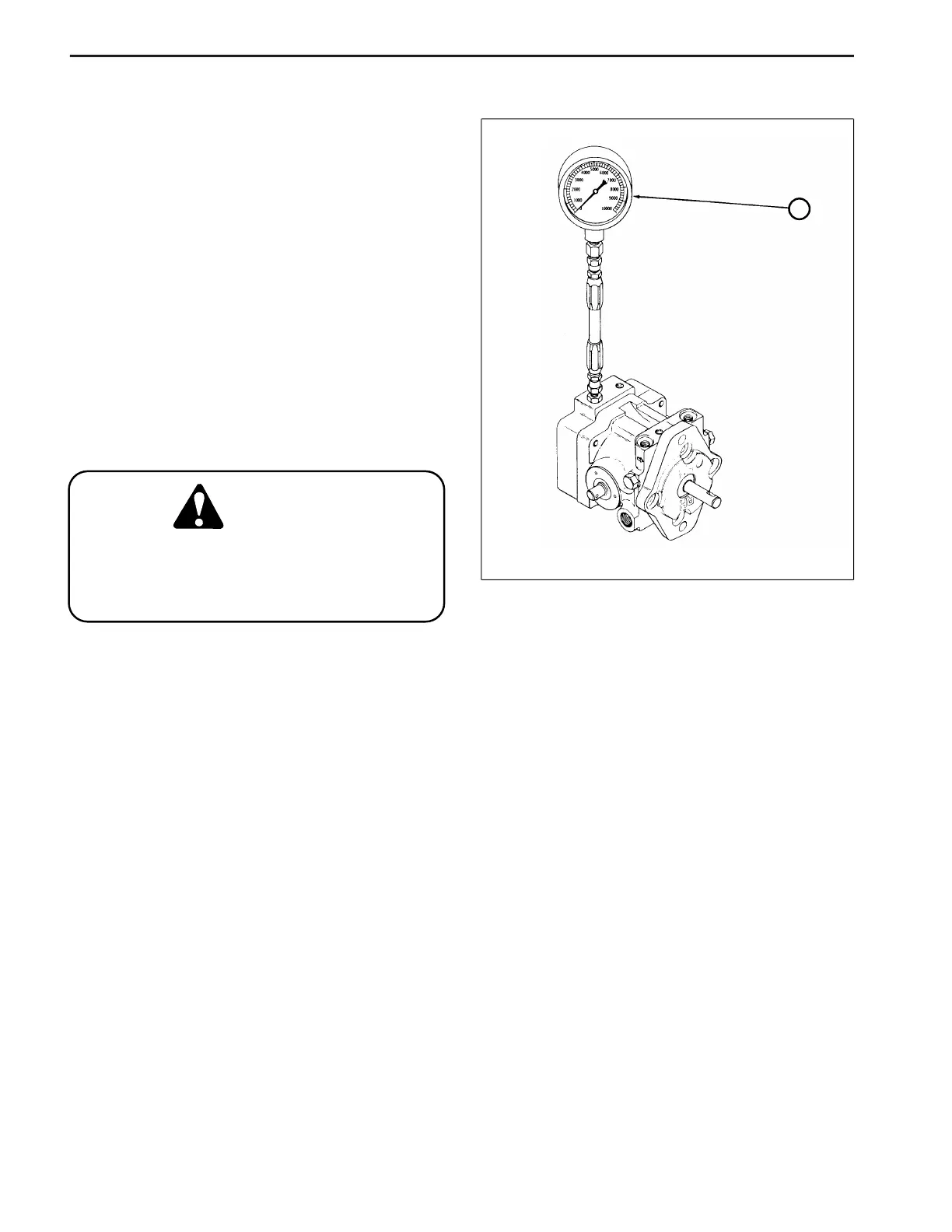

Figure 21
1
1. 10,000 PSI hydraulic pressure gauge
5. While watching pressure gauges, slowly push traction
pedal into forward until maximum pressure is obtained.
GAUGE READING: 4000 – 4500 PSI.
Testing Page 5 - 22
Rev. A
Reelmaster
®
216/216-D
