Seat Switch (Fig. 6, 7)
The seat switch is a normally open (N.O.) switch that
closes when the operator is on the seat. If the cutting
unit clutch (reel drive) switch or traction switch is open
and the operator raises off the seat, the engine will stop.
1. Raise the seat to get access to the seat switch wiring
connector.
2. Disconnect the seat switch wiring connector and
install a continuity tester or ohm meter between the two
leads of the seat switch.
3. Lower the seat. The continuity tester should show no
continuity.
NOTE: Make sure the compression spring and pin holds
the seat up off the seat switch when there is no operator
on the seat.
4. Have the operator sit on the seat, slowly depressing
the seat switch. The continuity tester should show con-
tinuity as the seat approaches the bottom of its travel.

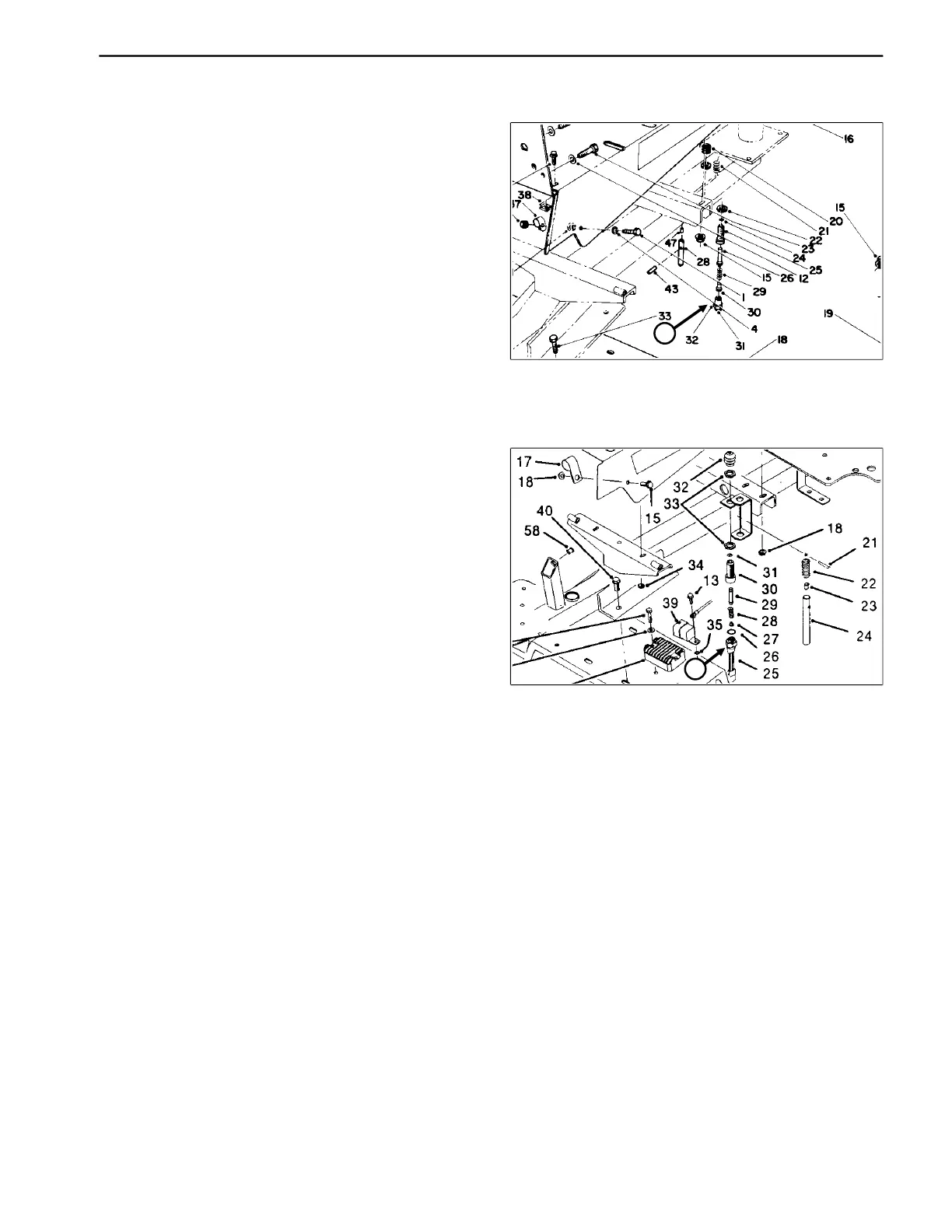

1
Figure 6
(Reelmaster 216)
1. Seat switch (Item 32)
1
Figure 7
(Reelmaster 216-D)
1. Seat switch (Item 25)
Reelmaster
®
216/216-D Page 6 - 21 Testing
