Y ou can shift from M OW to T RANSPORT or T RANSPORT
to M OW (not to N EUTRAL ) while the machine is in
motion; no damage will result
Y ou can move the switch from T RANSPORT or M OW
to N EUTRAL and the machine will come to a stop. If
you try to switch from N EUTRAL to M OW or T RANSPORT
while the pedal is not in the N EUTRAL position, an
advisory occurs.
Lift/Lower Joystick
The lift/lower joystick ( Figure 14 ) raises or lowers
the cutting units. The joystick can engage or
disengage the cutting-unit reels, depending on the
function-control-switch position:
• Function-control switch in the N EUTRAL
position : The cutting units will raise or lower as
long as you move the joystick forward or backward,
but the reels will not engage unless the machine is
in Backlap Mode.
• Function-control switch in the M OW position :
Move the joystick forward during your cutting
operation to lower the cutting units and start the
reels. Pull back on the joystick to stop the reels
and raise the cutting units.
T o stop the reels without raising the cutting units,
pull back on the joystick momentarily and release
it. Moving the joystick forward again will start the
reels or pulling back again will lift the cutting units.
Y ou must engage this feature in the InfoCenter;
refer to Adjusting the T ap-Of f Delay ( page 26 ) .
• Function-control switch in the T RANSPORT
position : The cutting units can be raised, but the
reels will not engage. An advisory appears in the
InfoCenter if you attempt to lower the cutting units.
T raction Pedal
The traction pedal ( Figure 16 ) has 3 functions: to
make the machine move forward, to move it backward,
and to stop the machine. Press the top of the pedal to
move forward; press the bottom to move backward or
to assist in stopping when moving forward.
T o stop the machine, allow the pedal to move to the
N EUTRAL position. Do not rest the heel of your foot on
the traction pedal in the R EVERSE position while the
machine is moving forward ( Figure 17 ).
g014603

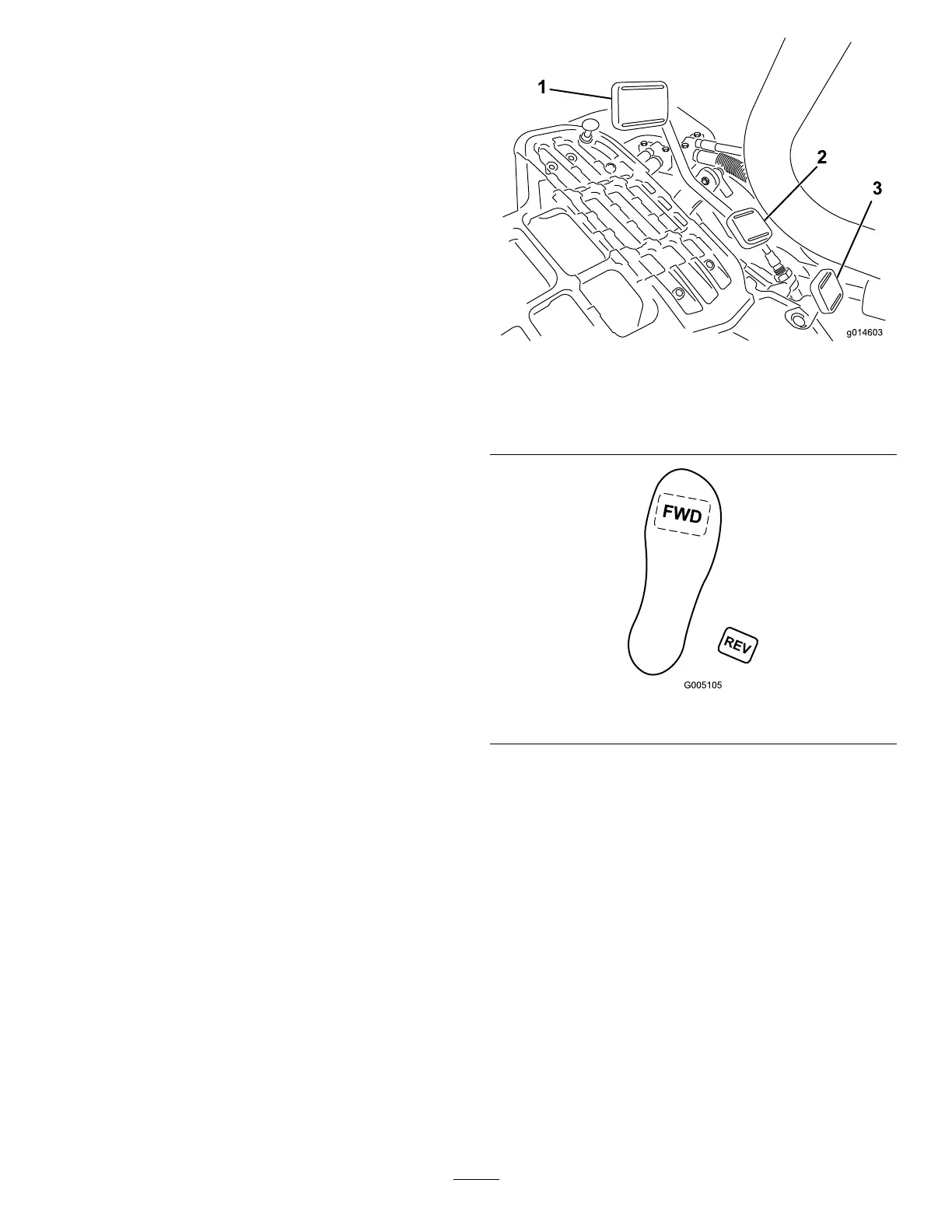

Figure 16
1. T raction pedal—forward 3. Steering-arm-locking
pedal
2. T raction pedal—reverse
g005105
Figure 17
Y ou can congure the maximum ground speed as
follows:
• 3.2 to 8 km/h (3 to 5 mph) forward mowing speed
• 8 to 16 km/h (5 to 10 mph) transport speed
• 3.2 to 4.8 km/h (2 to 3 mph) reverse speed
Steering-Arm-Locking Pedal
Press the pedal ( Figure 16 ) and raise or lower the
steering arm for operator comfort, then, release the
pedal to lock the arm in place.
Brake Pedal
Press the brake pedal ( Figure 18 ) to stop the machine.
18
