CurvedHandleRemoval(ElectricStartModelsOnly)(continued)

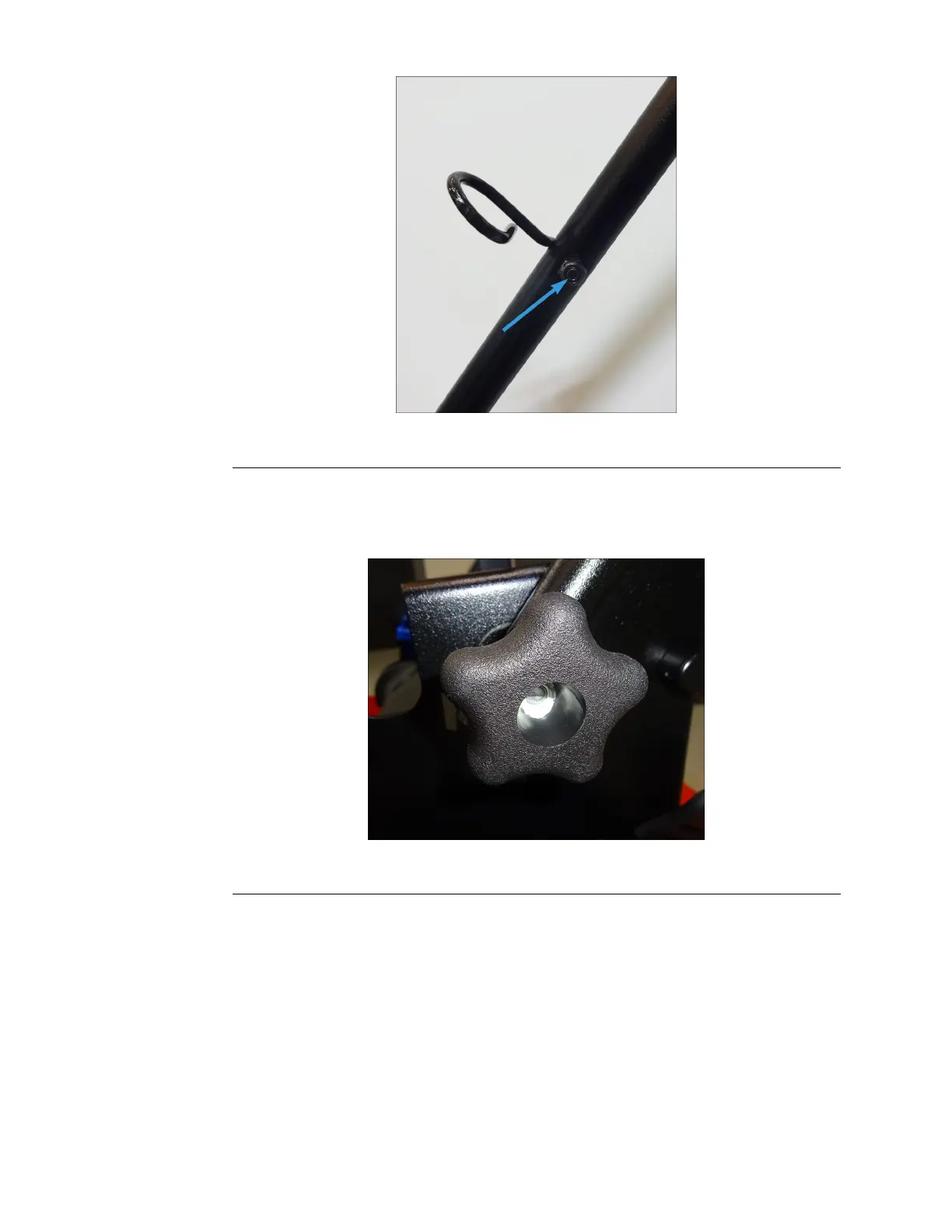

g353180
Figure84
10.Spreadandremovethecableguidefromthecurvedhandle.
11.RemovetheLHhandleknobandcarriageboltfromthecurvedhandle.
RepeatontheRHsideoftheunit.
g353181
Figure85
12.Removethecurvedhandlefromthechassis.
13.Spreadandremovethequickreleaseassembliesfromthecurvedhandle.
Controls:ServiceandRepairs
Page5–42
22InchAWD/RWDSteelDeckWalkPower
MowerServiceManual
3445-579RevA
