CurvedHandleRemoval(ElectricStartModelsOnly)(continued)
g353182

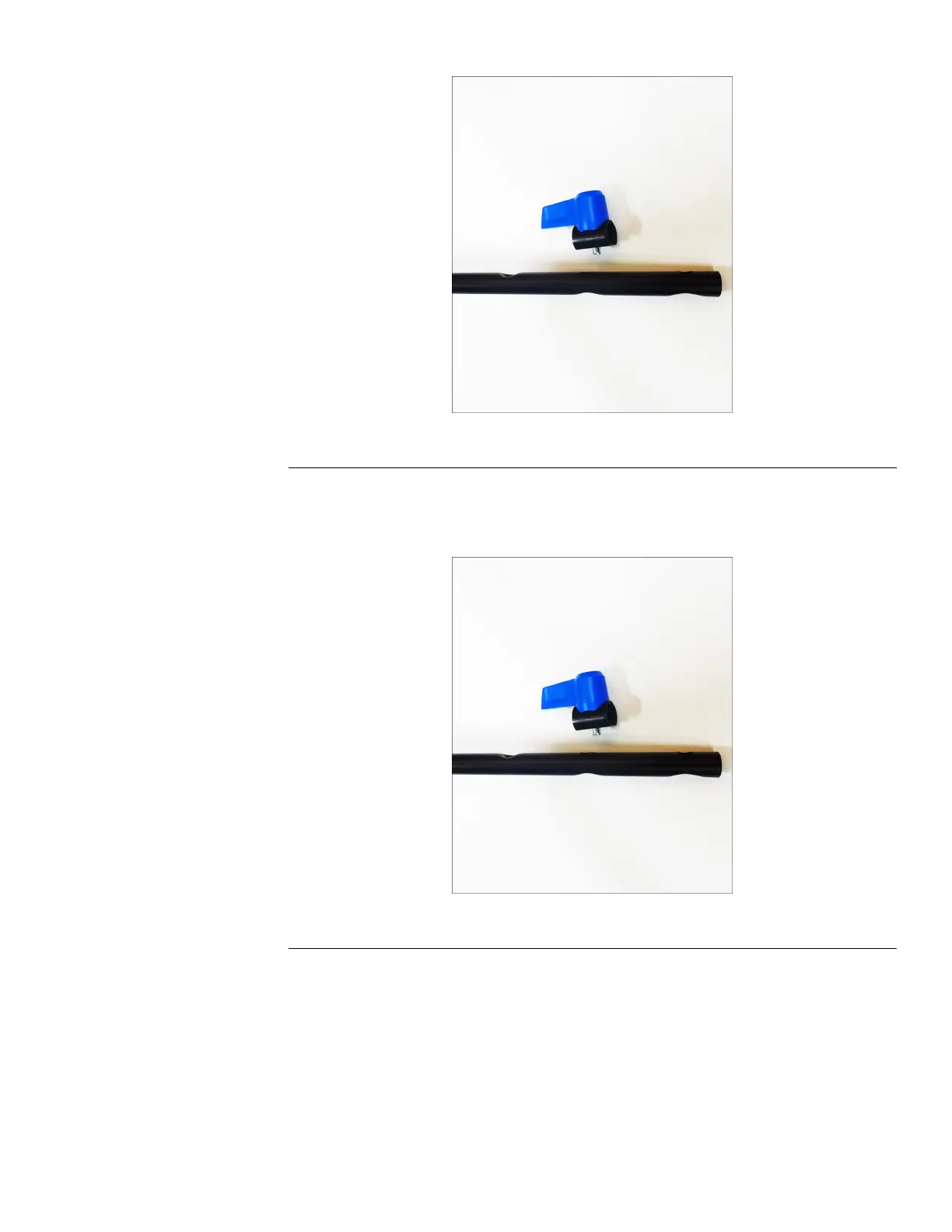

Figure86
CurvedHandleInstallation(ElectricStartModelsOnly)
1.Installthequickreleaseassembliestothecurvedhandle.
g353182
Figure87
2.Installthecurvedhandleontothechassis.
3.InstalltheLHhandleknobandcarriageboltontothecurvedhandle.Repeat
ontheRHsideoftheunit.
22InchAWD/RWDSteelDeckWalkPowerMowerService
Manual
Page5–43
Controls:ServiceandRepairs
3445-579RevA
