Toro 29521 - Page 5

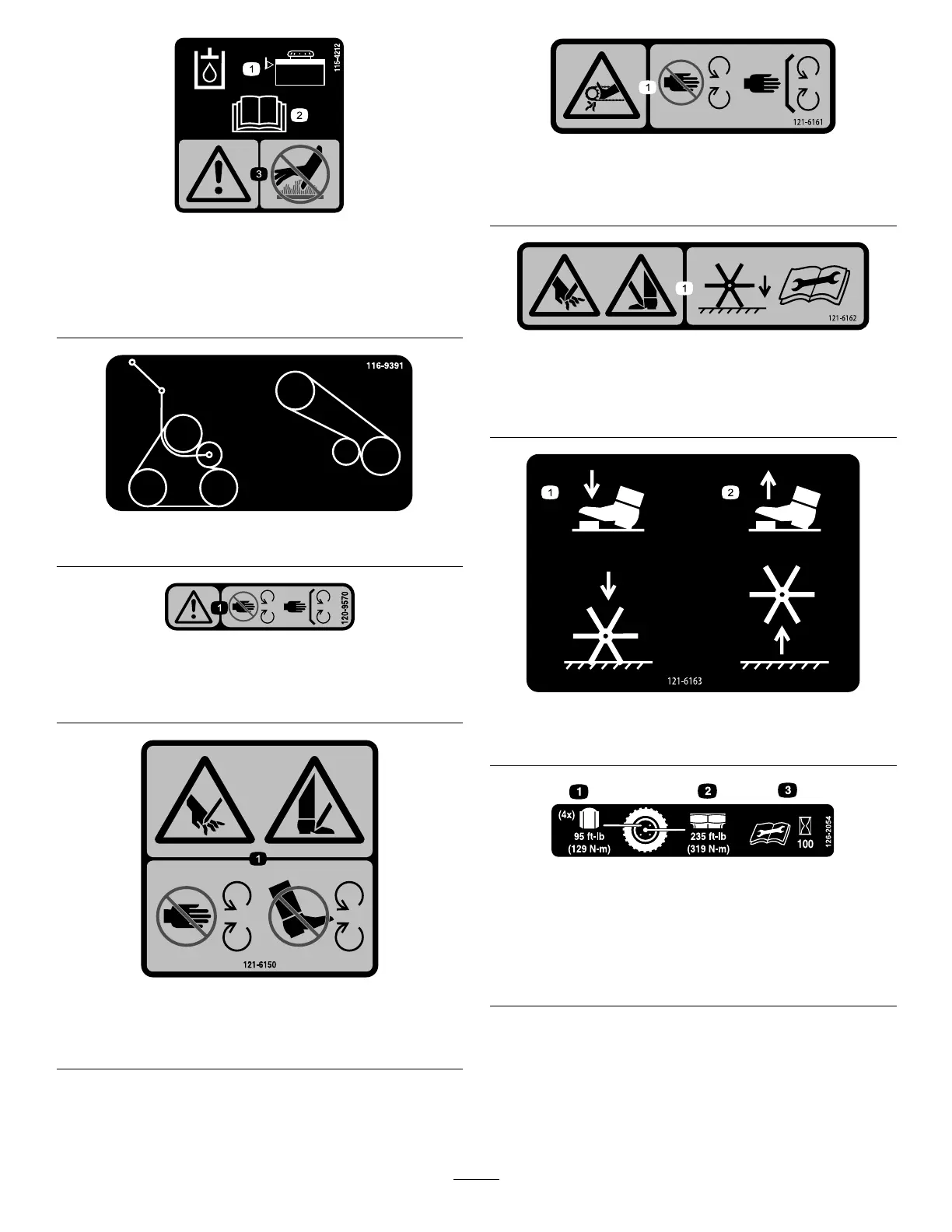

decal115-4212
115-4212
1.Hydraulicuidlevel
3.Warning—donottouchthe
hotsurface.
2.ReadtheOperator's
Manual.
decal116-9391
116-9391
decal120-9570
120-9570
1.Warning—stayawayfrommovingparts;keepallguards
andshieldsinplace.
decal121-6150
121-6150
1.Cuttinghazardofhandandfoot—stayawayfrommoving
parts.
decal121-6161
121-6161
1.Entanglementhazard,belt—stayawayfrommovingparts;
keepallguardsinplace.
decal121-6162
121-6162
1.Cutting/dismembermenthazardofhandorfoot—lowerthe
tinestotheground;readtheOperator’sManualforthe
disassemblyprocedure.
decal121-6163
121-6163
1.Presstolowerthetines.2.Releasetoraisethetines.
decal126-2054
126-2054
1.Wheellugnuttorque129N∙m(95ft-lb)(4x)
2.Wheelhubnuttorque319N∙m(235ft-lb)
3.ReadandunderstandtheOperator’sManualbefore
performinganymaintenance;checkthetorqueevery100
hours.
