Product Overview

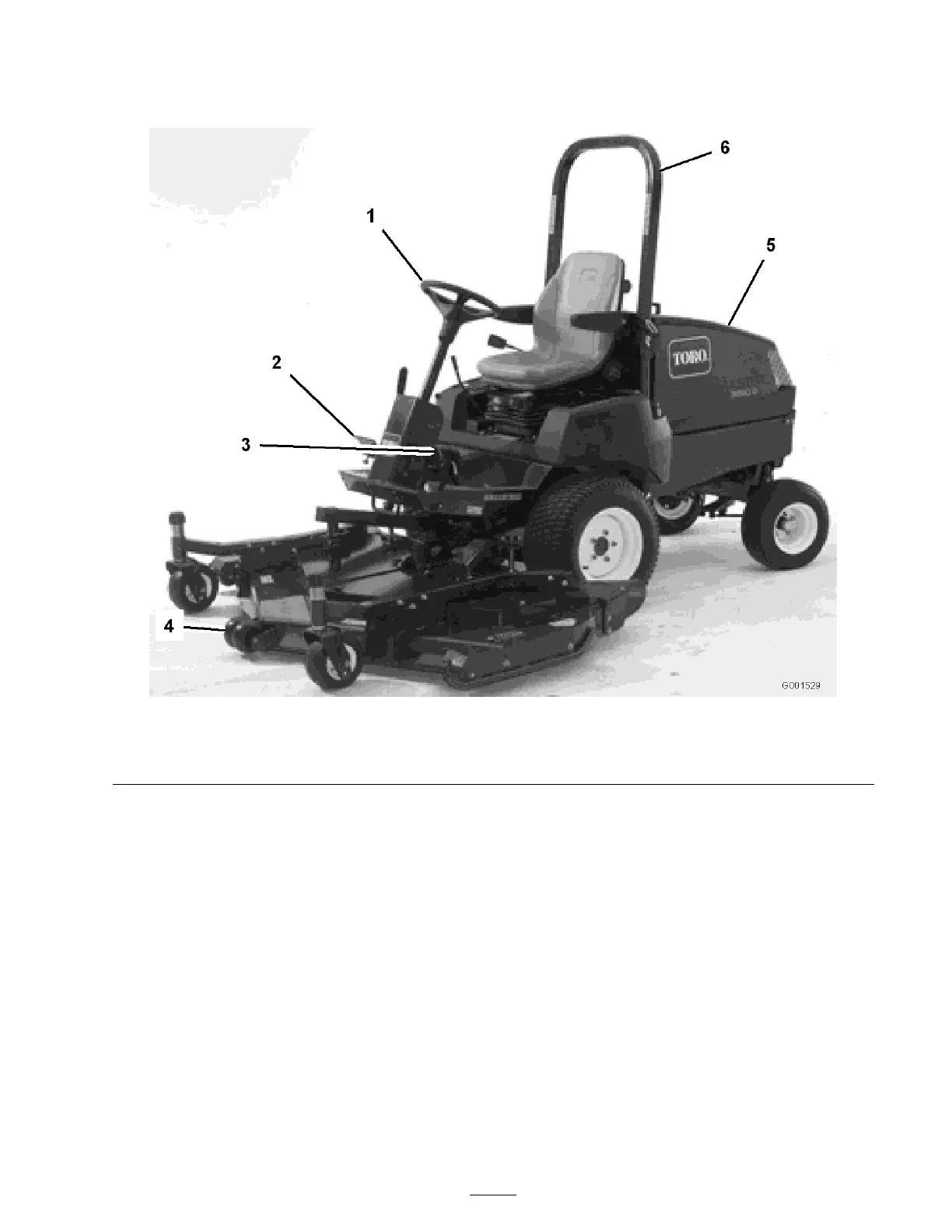

Figure 12
1. Steering wheel 3. Brakes 5. Hood/engine compartment
2. Traction pedal
4. Cutting unit
6. ROPS (Rollover Protection System)
Controls
Service Brakes
T he left and right brak e pedals ( Figure 13 ) are
connected to the left and right front wheels . Since
both brak es w ork inde pendently of eac h other , the
brak es can be used to tur n shar ply or to increase
traction if one wheel tends to slip while operating
on cer tain slope conditions . Ho w ev er , w et g rass or
soft turf could be damag ed when brak es are used
to tur n shar ply . T o stop quic kly , press both brak e
pedals tog ether . Alw a ys loc k the brak es tog ether
when transpor ting the mac hine .
