Toro 30308 - Adjusting the Tilt Steering; Control

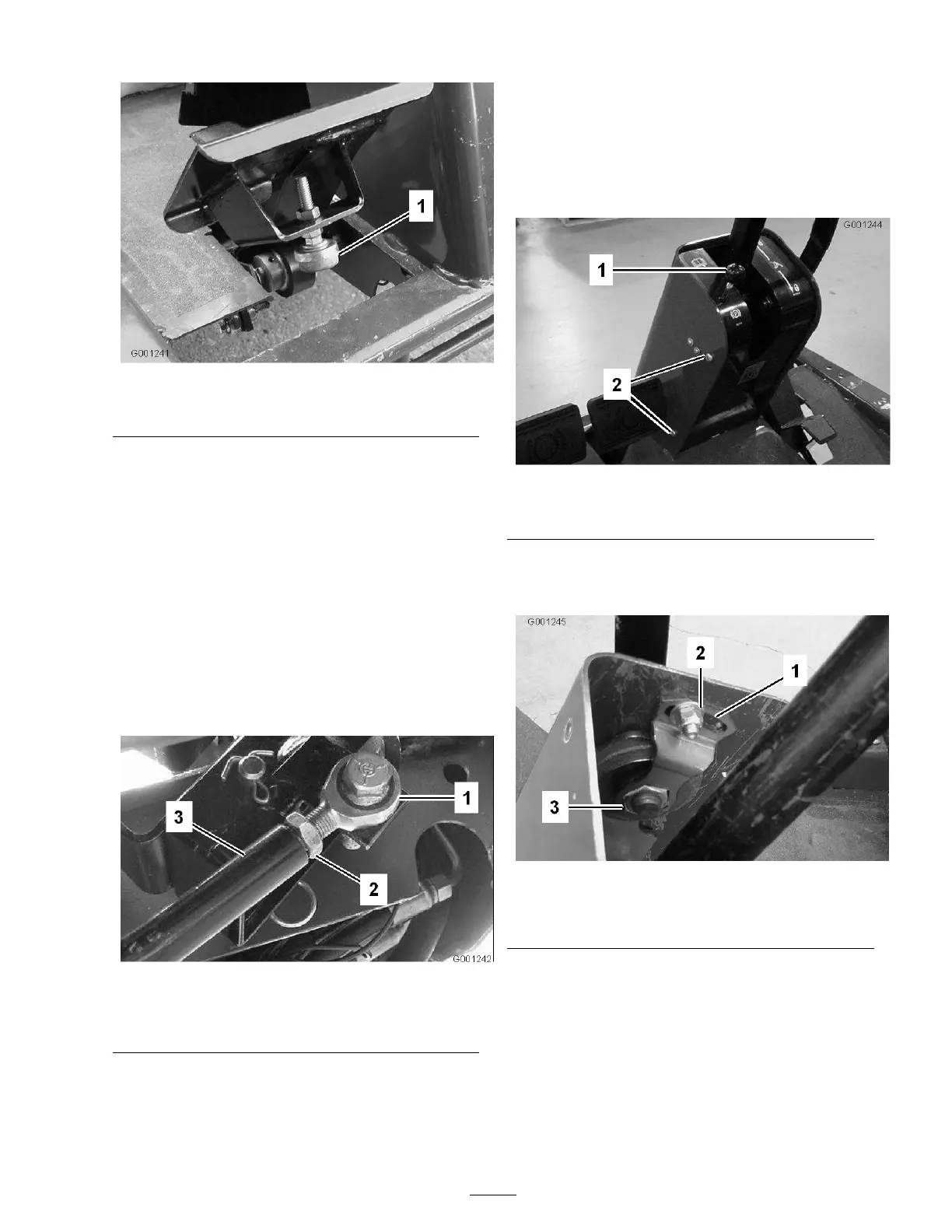

Figure 62
1. Traction pedal stop
3. If more adjustment is required, adjust traction
rod ( Figure 63 ) as follo ws:
A. R emo v e the bolt and n ut securing traction
rod end to the pedal.
B . Loosen the jam n ut securing rod end to the
traction rod.
C . R otate the rod until desired length is
attained.
D . Tighten the jam n ut and secure the rod end
to the traction pedal with the bolt and n ut
remo v ed to loc k the angle of the foot pedal.
Figure 63
1. Rod end 3. Traction rod
2. Jam nut
Adjusting the Tilt Steering
Control
1. R emo v e the knob from the parking brak e
and screws from the steering column co v er
( Figure 64 ).
Figure 64
1. Parking brake knob
2. Mounting screw (4)
2. Slide the co v er up the steering shaft to expose
the pi v ot brac k et ( Figure 65 ).
Figure 65
1. Pivot plate
3. Large nut
2. Small nut
3. Loosen the small n ut, rotate the pi v ot brac k et
until it tightens the larg e n ut belo w ( Figure 65 ).
4. Tighten small n ut.
5. Install the steering column co v er and parking
brak e knob .
53
