FuelTankCapacity
79L(21USgallons)
AddingFuel
1.Parkthemachineonalevelsurface.
2.Usingacleanrag,cleanareaaroundfueltank
cap.
3.Removecapfromthefueltank(Figure13).

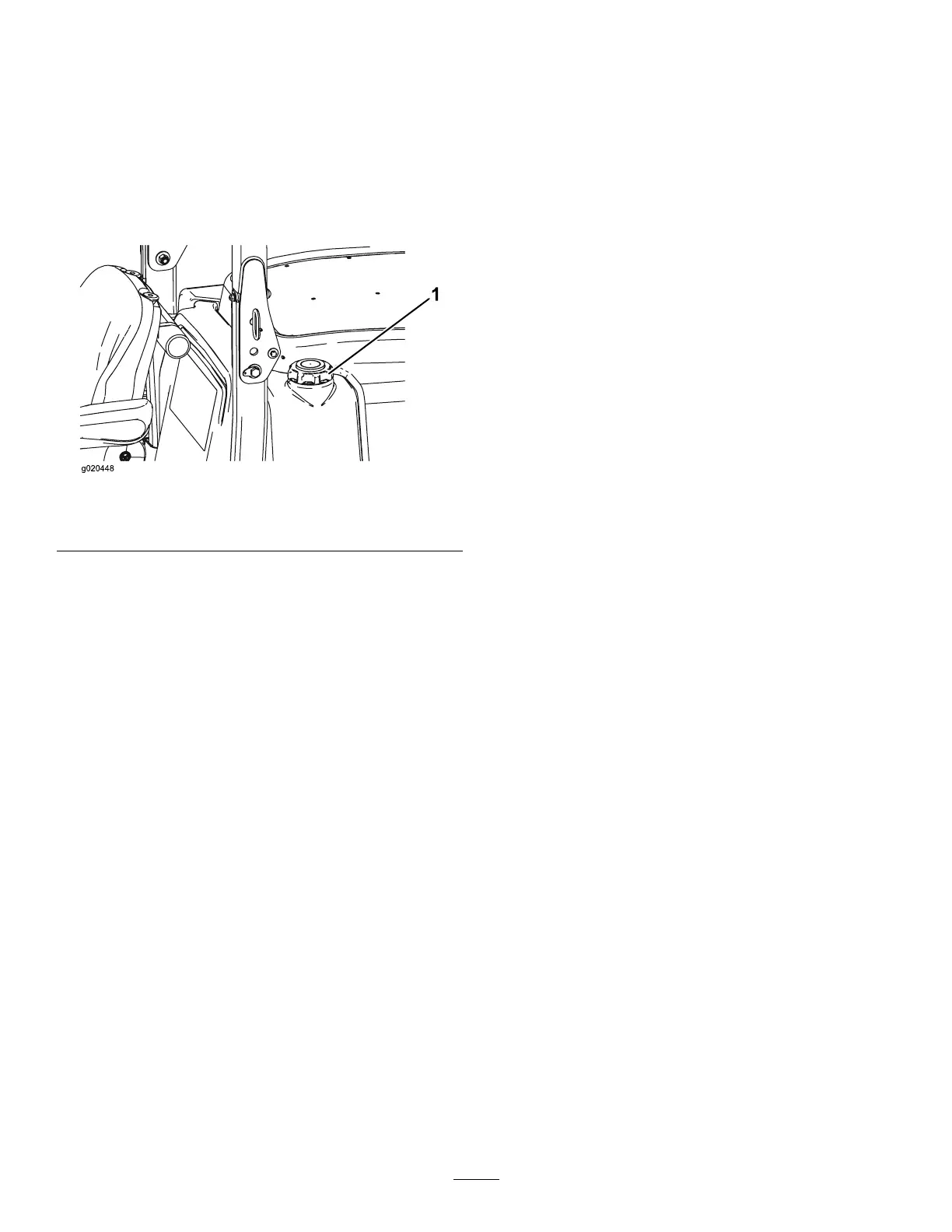

g020448
Figure13
1.Fueltankcap
4.Fillthetankuntilthelevelistothebottomofthe
llerneckwithdieselfuel.
5.Installfueltankcaptightlyafterllingtank.
Note:Ifpossible,llthefueltankaftereach
use.Thiswillminimizepossiblebuildupof
condensationinsidethefueltank.
CheckingtheHydraulicFluid
ServiceInterval:Beforeeachuseordaily
Themachinesreservoirislledatthefactorywith
approximately29.3liters(7.75U.S.gallons)of
highqualityhydraulicuid.Checkthelevelofthe
hydraulicuidbeforetheengineisrststarted
anddailythereafter.Therecommendedreplacement
uidis:
ToroPremiumAllSeasonHydraulicFluid
(Availablein18.9liter(5gallon)pailsor208liter(55
gallon)drums.SeepartscatalogorTorodistributorfor
partnumbers.)
Alternateuids:IftheTorouidisnotavailable,other
uidsmaybeusedprovidedtheymeetallthefollowing
materialpropertiesandindustryspecications.We
donotrecommendtheuseofsyntheticuid.Consult
withyourlubricantdistributortoidentifyasatisfactory
product.
Note:Torowillnotassumeresponsibilityfordamage
causedbyimpropersubstitutions,souseonly
productsfromreputablemanufacturerswhowillstand
behindtheirrecommendation.
HighViscosityIndex/LowPourPoint
Anti-wearHydraulicFluid,ISOVG46
MaterialProperties:
St@40°C44to50 Viscosity,ASTMD445
St@100°C7.9to8.5
ViscosityIndexASTMD2270
140to160
PourPoint,ASTMD97-34°Fto-49°F
IndustrySpecications:VickersI-286-S(Quality
Level),VickersM-2950-S
(QualityLevel),Denison
HF-0
Note:Manyhydraulicuidsarealmostcolorless,
makingitdifculttospotleaks.Areddyeadditivefor
thehydraulicsystemoilisavailablein20ml(2/3oz)
bottles.Onebottleissufcientfor15-22liters(4-6
gallons)ofhydraulicoil.Orderpartno.44-2500from
yourauthorizedTorodistributor.
1.Positionthemachineonalevelsurface,lower
thecuttingunits,stoptheengine,andremove
thekey.
2.Unlatchtheseat,raiseit,andengagetheprop
rod.
3.Cleantheareaaroundthellerneckandcapof
thehydraulictank(Figure14).Removethecap
fromthellerneck.
