Toro 74310 - Product Overview; Controls

ProductOverview

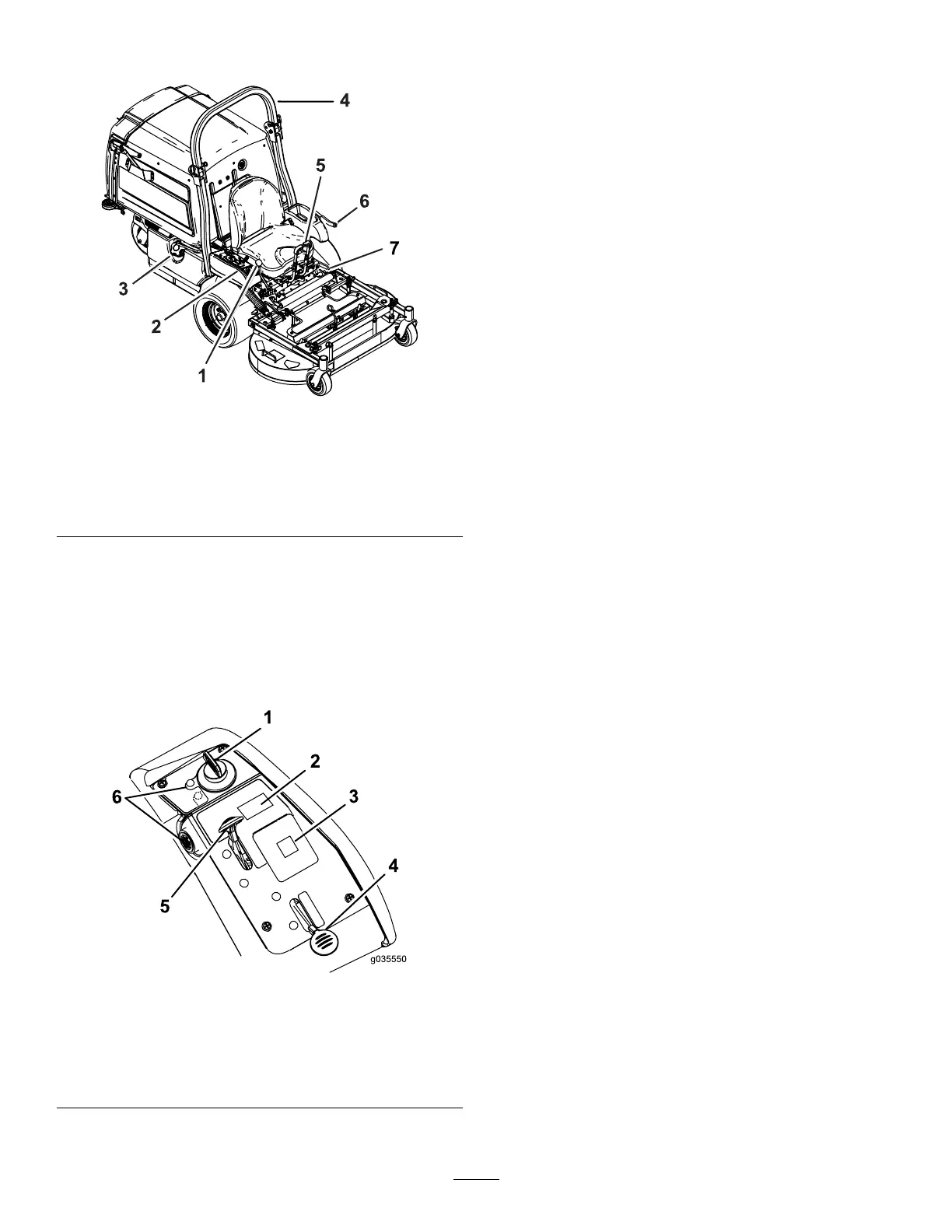

Figure4
1.Speedcontrollever
4.Motioncontollevers
2.Controls5.PTOengagementlever
3.Fuelcap6.Parkingbrakelever
Controls
Becomefamiliarwithallthecontrolsbeforeyoustartthe
engineandoperatethemachine(Figure4andFigure5).
Figure5
1.Ignitionswitch5.Throttle
2.Hopperswitch6.Engine-oiltemperature
lightandbuzzer
3.Messagedisplay
7.Checkenginelight(EFI
machinesonly)
4.Choke(NotonEFI
machines)
Motion-controlLevers
Themotion-controlleversareusedtodrivethemachine
forward,reverse,andturneitherdirection(Figure4).
Speed-controlLever
Thespeedcontrolleversetsmaximumforwardspeedofthe
machine(Figure4).Movingspeedcontrolleverrearwardto
theneutralpositionplacesthedrivesystemintoneutral.
ThrottleControl
Thethrottleisusedtocontrolenginespeed.Thethrottle
controlisvariablebetweenFastandSlow.
ChokeControl(NotonEFImachines)
Thechokeisusedtoaidinstartingacoldengine.Movethe
choketotheclosed/onpositiontostartacoldengine.
Note:Donotrunawarmenginewithchokeintheon
position.
BrakeLever
Thebrakeleverengagesaparkingbrakeonthedrivewheels
(Figure4).
IgnitionSwitch
Thisswitchisusedtostartthemowerengineandhasthree
positions:Start,RunandOff.
HourMeter
Thehourmeterrecordsthenumberofhourstheenginehas
operated.Thehourmeterisrecordingwhenthedecimal
pointisashingintheHour/Voltagedisplay.Usethesetimes
forschedulingregularmaintenance(Figure6).
Figure6
1.Safetyinterlockindicators
2.Hopperup
3.Hour/Voltagedisplay
4.Lowvoltageindicatorlight
12
