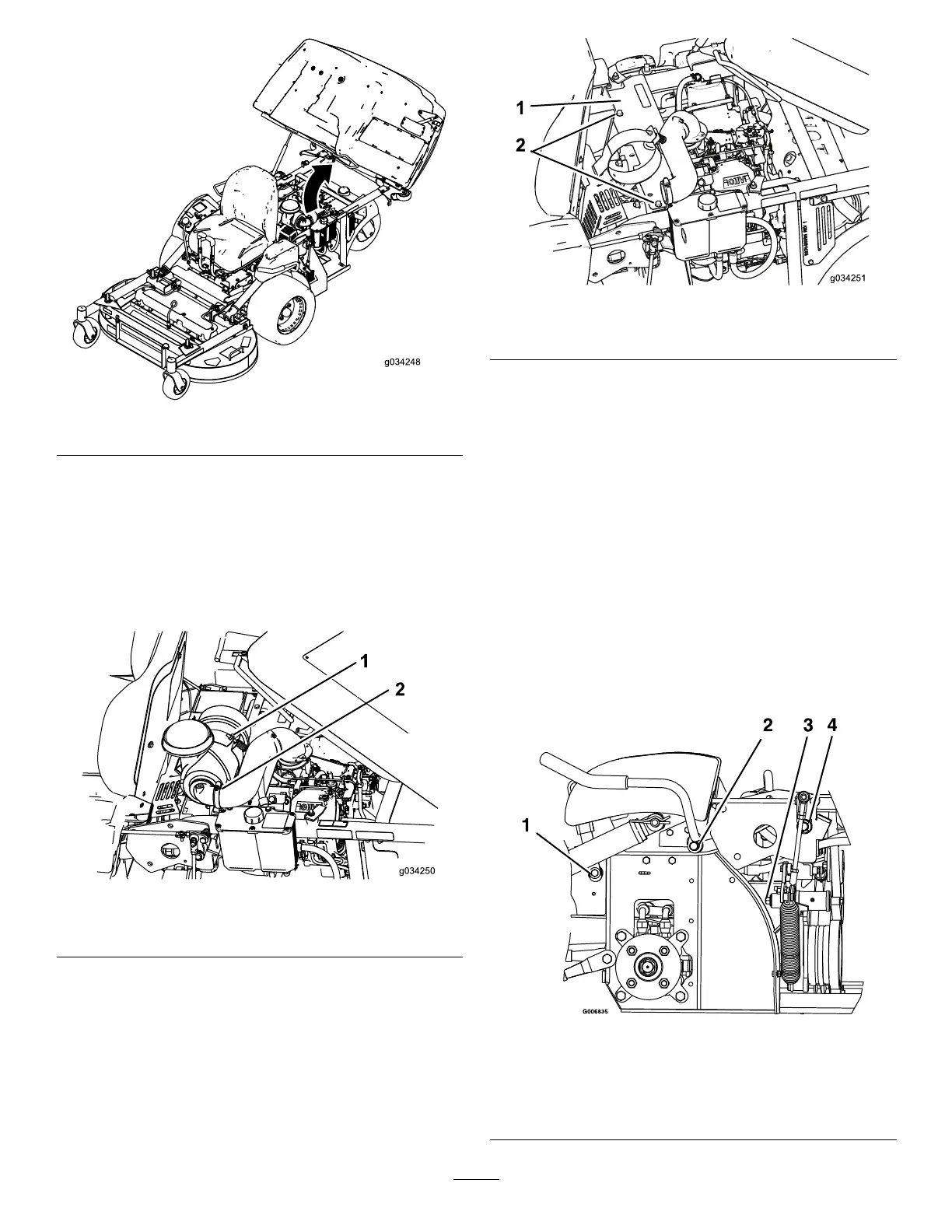

g034248

Figure30

3.Shutofftheengine,removethekey,andwait

forallmovingpartstostopbeforeleavingthe

operatingposition.

4.Loosentheboltholdingtheaircleaner(Figure

31).

5.Loosentheclampholdingthehoseandremove

theaircleaner(Figure31).

g034250

Figure31

1.Bolt

2.Clamp

6.Removetheboltsandtheplatebelowtheair

cleaner.

g034251

Figure32

1.Plate2.Bolts

7.Lubricatethepump-beltidlerarm(Figure32).

8.Installtheplateandtheaircleaner.

Lubricatingthe

Brake-HandlePivot

ServiceInterval:Every160hours

1.Parkthemachineonalevelsurface,disengage

thePTO,andengagetheparkingbrake.

2.Shutofftheengine,removethekey,andwait

forallmovingpartstostopbeforeleavingthe

operatingposition.

3.Lubricatethebronzebushingsonthe

brake-handlepivotwithaspraytypelubricant

orlightoil(Figure33).

g006835

Figure33

LeftSideofMachineShown

1.Brake-handlepivot

3.Spring-armpivot

2.PTO-handlepivot

4.Togglepivot
