AdjustingtheAnti-Scalp
Rollers
60-inchModelsOnly
Wheneveryouchangetheheight-of-cut,adjusttheheight
oftheanti-scalprollers.
1.Disengagetheblade-controlswitch(PTO),movethe
motion-controlleverstotheNEUTRAL-LOCKposition
andsettheparkingbrake.
2.Shutofftheengine,removethekey,andwaitforall
movingpartstostopbeforeleavingtheoperating
position.
3.Removethenutandboltpositiontheanti-scalprollers
andinstallthenutandbolt.
4.Ensurethatthespacersandbushingsareinstalled
(Figure28).
g018324

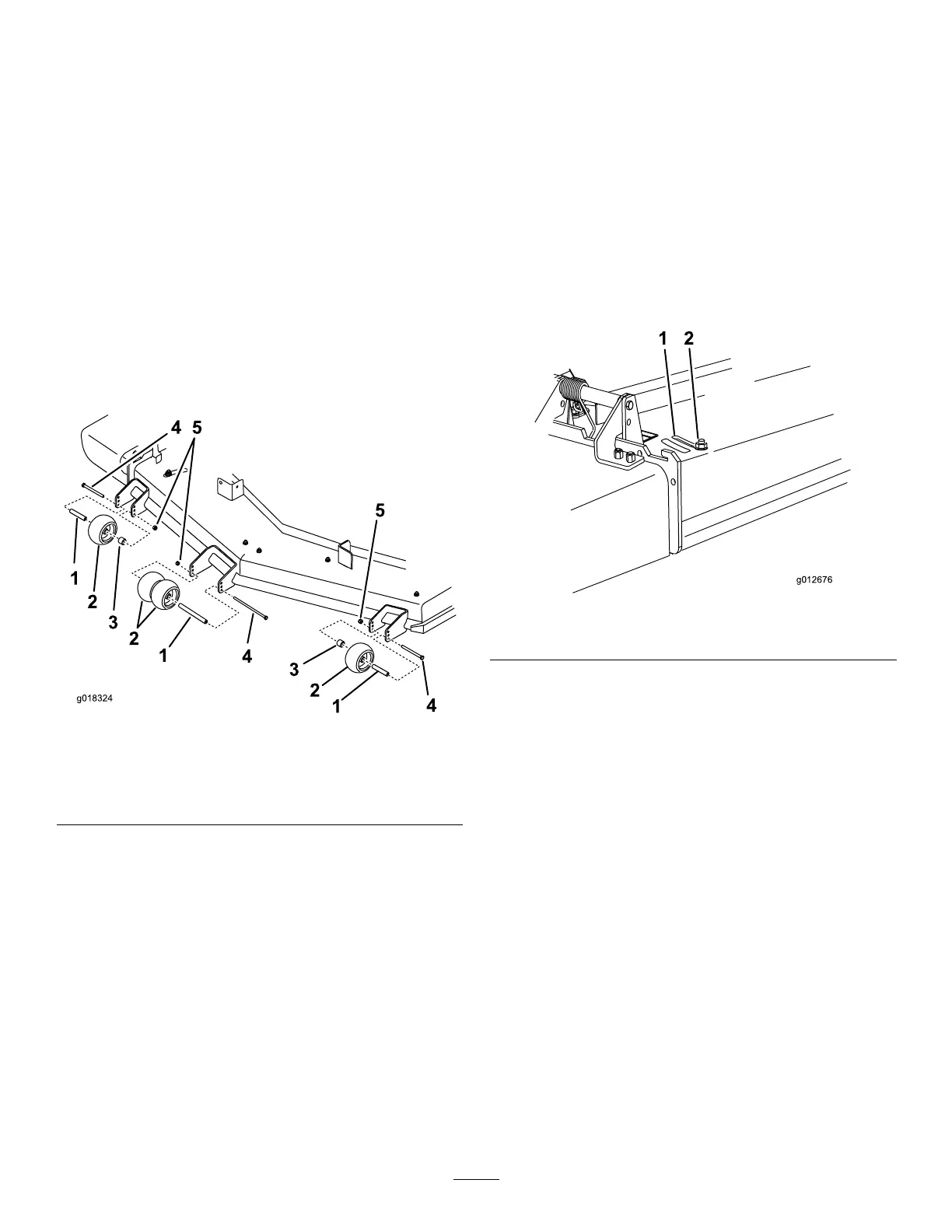

Figure28
1.Bushing4.Bolt
2.Anti-scalproller5.Nut
3.Spacer
AdjustingtheFlowBafe
Youcanadjustthemower-dischargeowfordifferenttypes
ofmowingconditions.Positionthecamlockandbafeto
providethebestqualityofcut.
1.DisengagethePTO,movethemotion-controlleversto
theNEUTRAL-LOCKposition,andsettheparkingbrake.
2.Shutofftheengine,removethekey,andwaitforall
movingpartstostopbeforeleavingtheoperating
position.
3.Toadjustthebafe,loosenthenut(Figure29).
4.Adjustthebafeandnutintheslottothedesired
dischargeowandtightenthenut.
g012676
1 2
Figure29
1.Slot
2.Nut
