Toro 74523 - Premaintenance Procedures; Releasing the Cushion for Rear Access; Lubrication; Greasing the Accessory Frame

Premaintenance
Procedures
ReleasingtheCushionfor
RearAccess
Youcanreleasethecushionforrearaccesstothemachinefor
maintenanceoradjustment.
1.Lowertheplatform.
2.Loosenthetwistknobsoneachsideofthemachine
(Figure33).

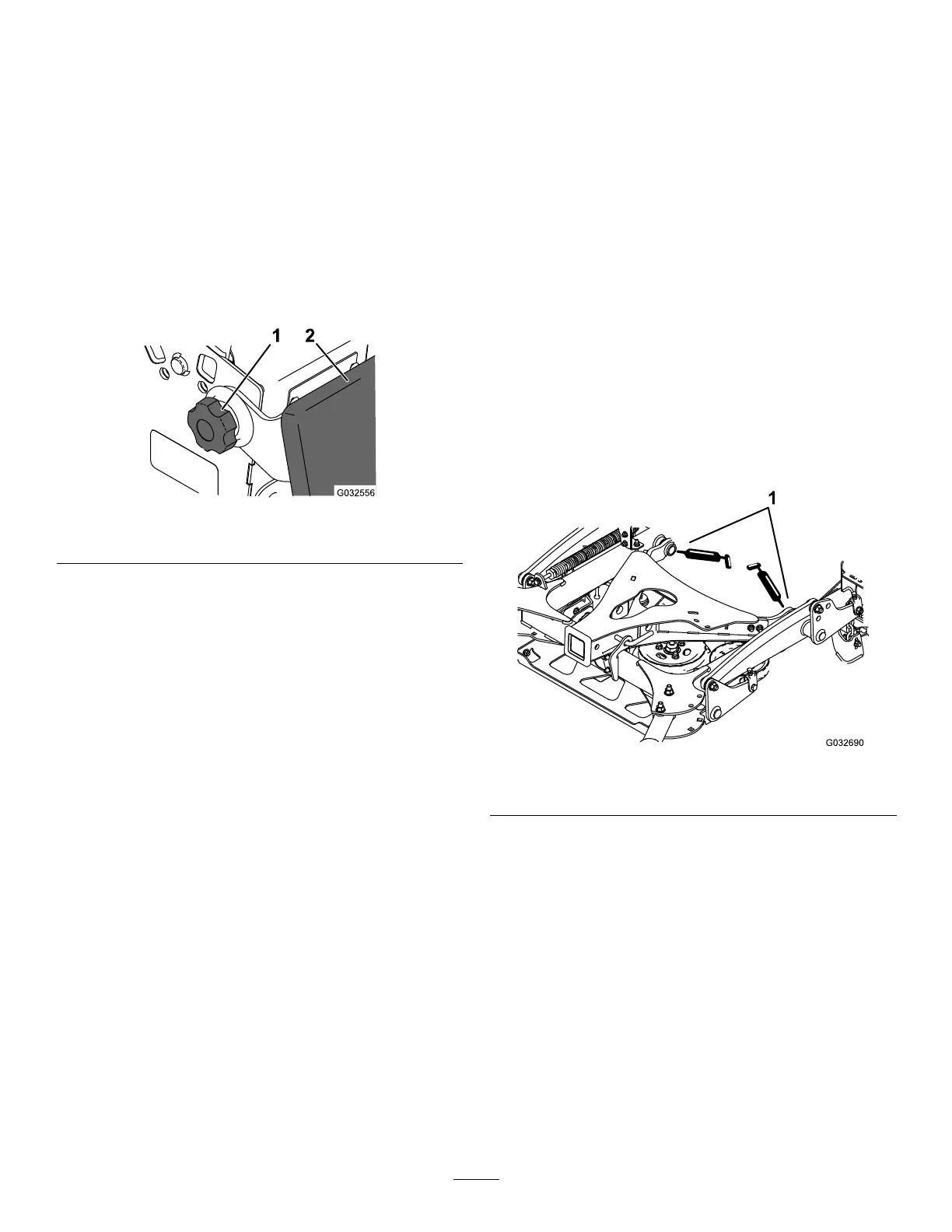

Figure33
1.Twistknob
2.Cushion
3.Removethecushionandlowerittotheplatform.
4.Performanymaintenanceoradjustmentonthe
machine.
5.Raisethecushion,andslideitontothepinsonboth
sidesofthemachine.
6.Tightenthetwistknobs.
Lubrication
GreasewithNo.2lithiumormolybdenumgrease.
1.DisengagethePTOandsettheparkingbrake.
2.Shutofftheengine,removethekey,andwaitforall
movingpartstostopbeforeleavingtheoperating
position.
3.Cleanthegreasettingswitharag.
Note:Makesuretoscrapeanypaintoffthefrontof
thetting(s).
4.Connectagreaseguntothetting.
5.Pumpgreaseintothettingsuntilgreasebeginsto
oozeoutofthebearings.
6.Wipeupanyexcessgrease.
GreasingtheAccessoryFrame
Greasethepivotsoftheaccessoryframeatthelocations
showninFigure34.
Figure34
1.Greasethesepivots.
