Toro 74990 - Product Overview; Controls

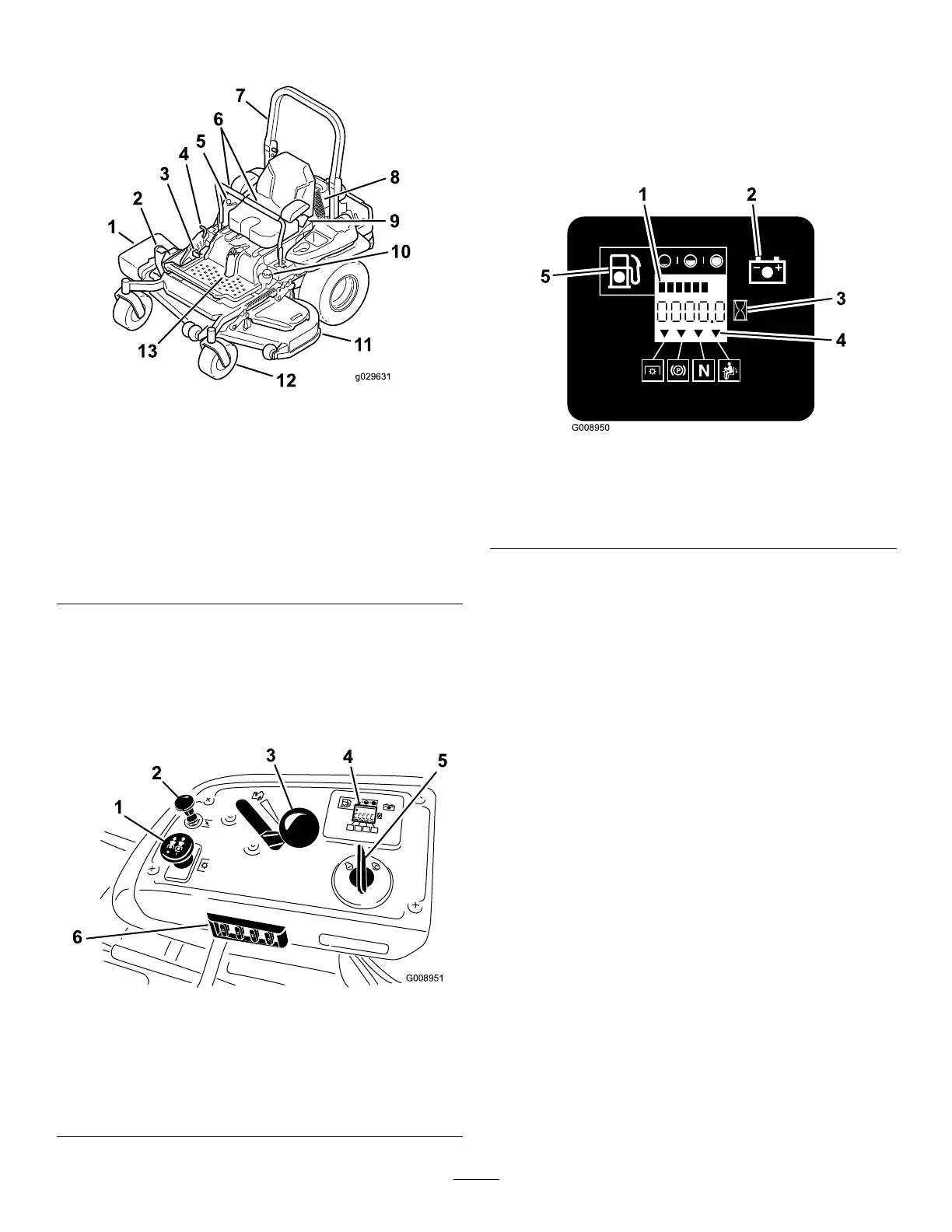

ProductOverview
g029631
Figure4
1.Side-dischargedeector
8.Rear,shockassembly
2.Height-of-cutdecklift
pedal
9.Seatbelt
3.Parking-brakelever10.Fuelcap
4.Transportlock11.Mowerdeck
5.Controls12.Casterwheel
6.Motion-controllevers13.Front,shockassembly
7.Rollbar
Controls
Becomefamiliarwithallthecontrolsbeforeyoustart
theengineandoperatethemachine(Figure4and
Figure5).
g008951
Figure5
1.PTOSwitch
4.Hour
meter/Safety-interlock
display/Fuelgauge
2.Choke
5.Ignitionswitch
3.Throttlecontrol6.Fuses
FuelGauge
Thefuelgaugeislocatedwiththehourmeter,andthe
barslightupwhentheignitionswitchison(Figure6).
Theindicatorlightappearswhenthefuellevelis
low—approximately3.8L(1USgallon)remainingin
thefueltank.
g008950
Figure6
1.Fuelgauge(bars)4.Safety-interlocksymbols
2.Batterylight
5.Low-fuelindicatorlight
3.Hourmeter
HourMeter
Thehourmeterrecordsthenumberofhoursthe
enginehasoperated.Itoperateswhentheengine
isrunning.Usethesetimesforschedulingregular
maintenance(Figure6).
Safety-InterlockIndicators
Therearesymbolsonthehourmeterandtheindicate
withablacktrianglethattheinterlockcomponentisin
thecorrectposition(Figure6).
Battery-IndicatorLight
WhentheignitionkeyisinitiallyturnedtotheRun
positionforafewseconds,thebatteryvoltagewillbe
displayedintheareawherethehoursarenormally
displayed.
Thebatterylightturnsonwhentheignitionisturned
onandwhenthechargeisbelowthecorrectoperating
level(Figure6).
ThrottleControl
ThethrottlecontrolisvariablebetweenFastand
Slow.
