Toro Groundsmaster 3400 - Neutral and Drive Indicators

HourMeter
Thehourmetershowsthetotalhoursthatthemachinehas
beenoperated(Figure17).
000.0
1
G018084
g018084

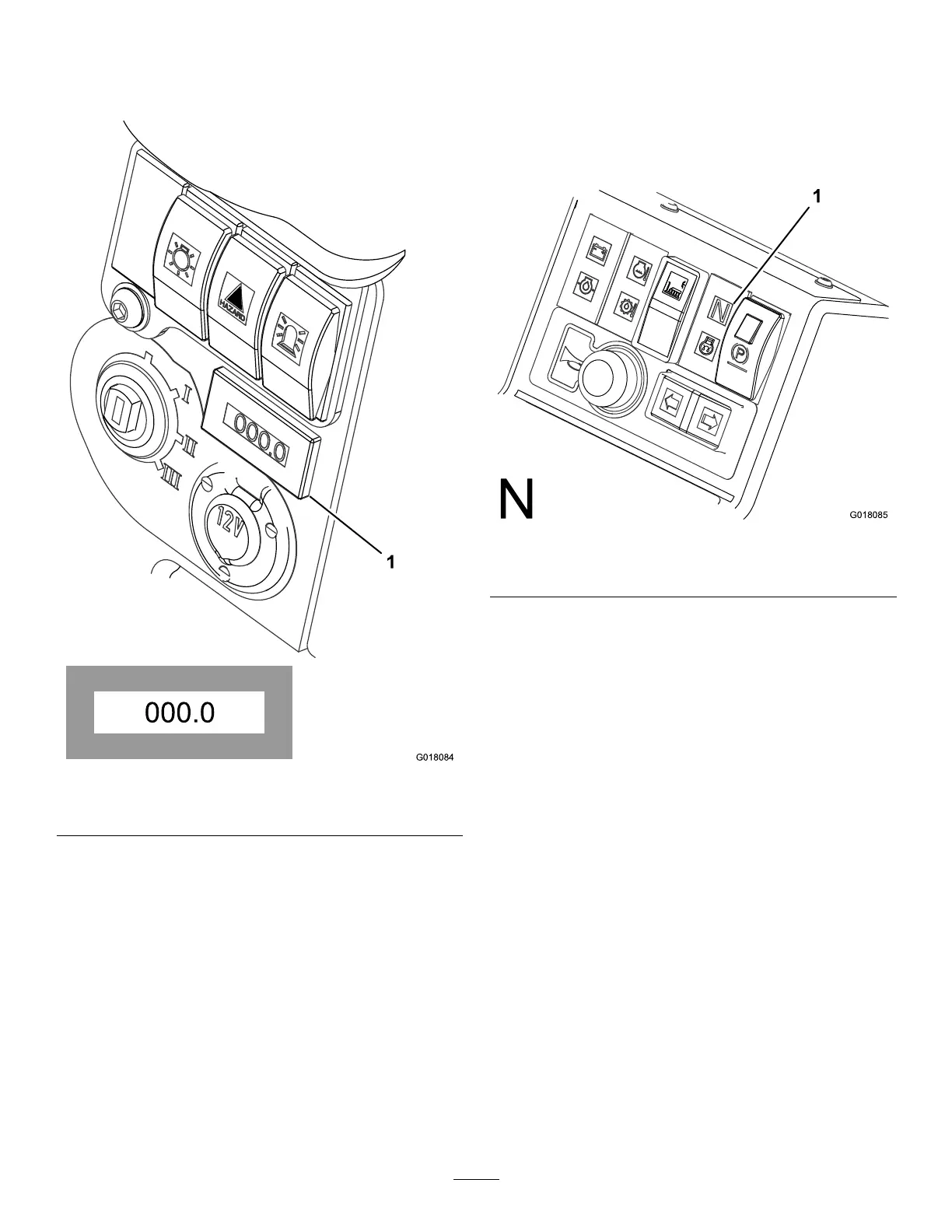

Figure17
1.Hourmeter
TransmissionNeutral-IndicatorLight
Thislightilluminateswhenthetravelcontrolpedalisinthe
NEUTRALpositionandtheignitionkeyisturnedtoposition
I(Figure18).
Note:Theparkingbrakemustbeengagedforthe
transmissionneutral-indicatorlighttoilluminate.
G018085
1
g018085
Figure18
1.Transmissionneutral-indicatorlight
14
