7. Lower the machine to the ground.
8. Remove the hood. Refer to “Hood Removal” on
page 3-34.

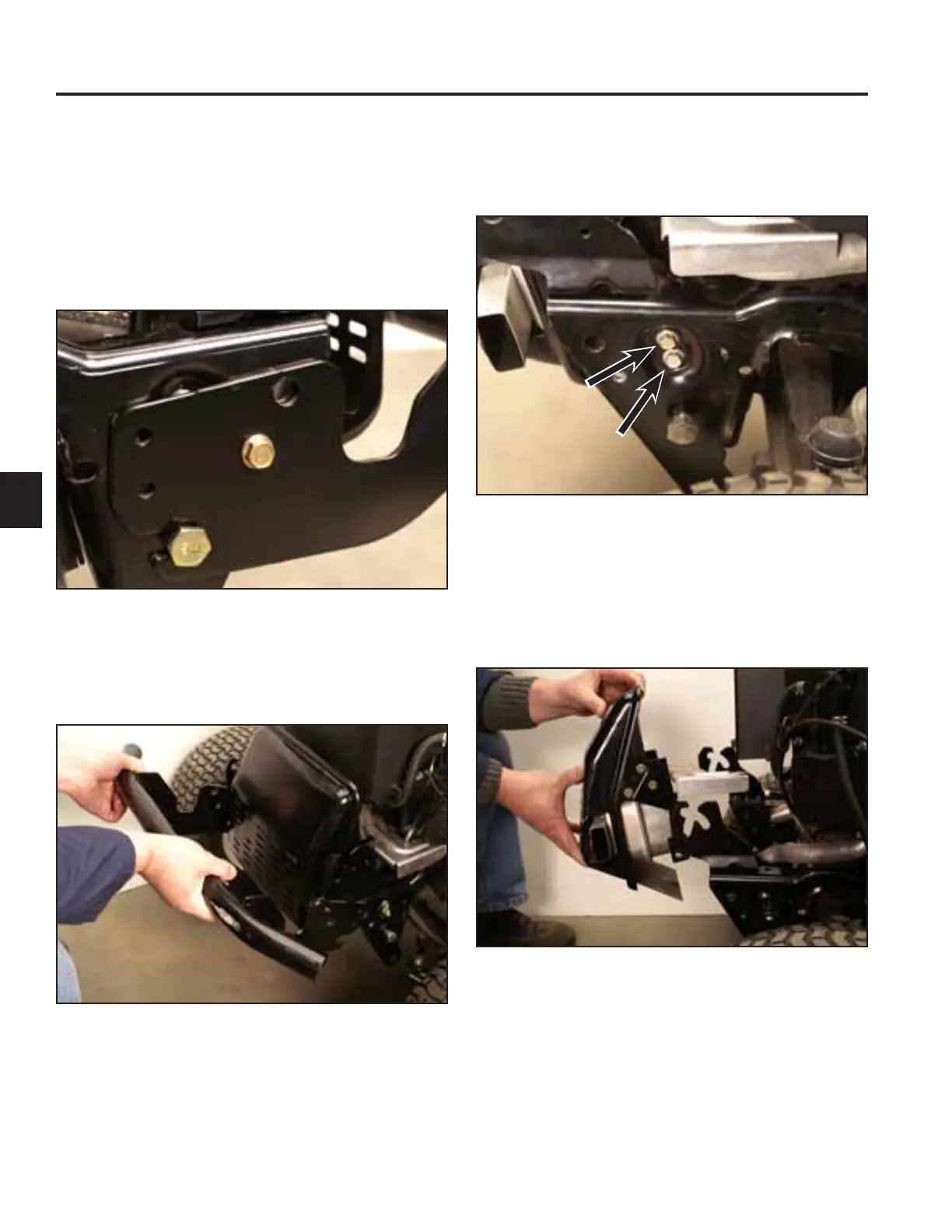

9. Remove the 2 screws securing the bumper to the
frame (1 bolt on the left and 1 on the right) (Fig.
390).
11. Remove the 4 screws securing the left and right side
bumper brackets to the frame (2 on the left and 2 on
the right) (Fig. 392).
Fig 390 PICT-7245
Fig 392 PICT-7423
 6OLGHWKHPXIÀHUDQGKHDWVKLHOGDVVHPEO\RIIWKH
manifold pipes and remove it from the machine (Fig.
393).
10. Remove the bumper (Fig. 391).
Fig 393 PICT-7425
Fig 391 PICT-7417
