GEAR DRIVE SYSTEM
5-34 GT Series Tractors Service Manual
5

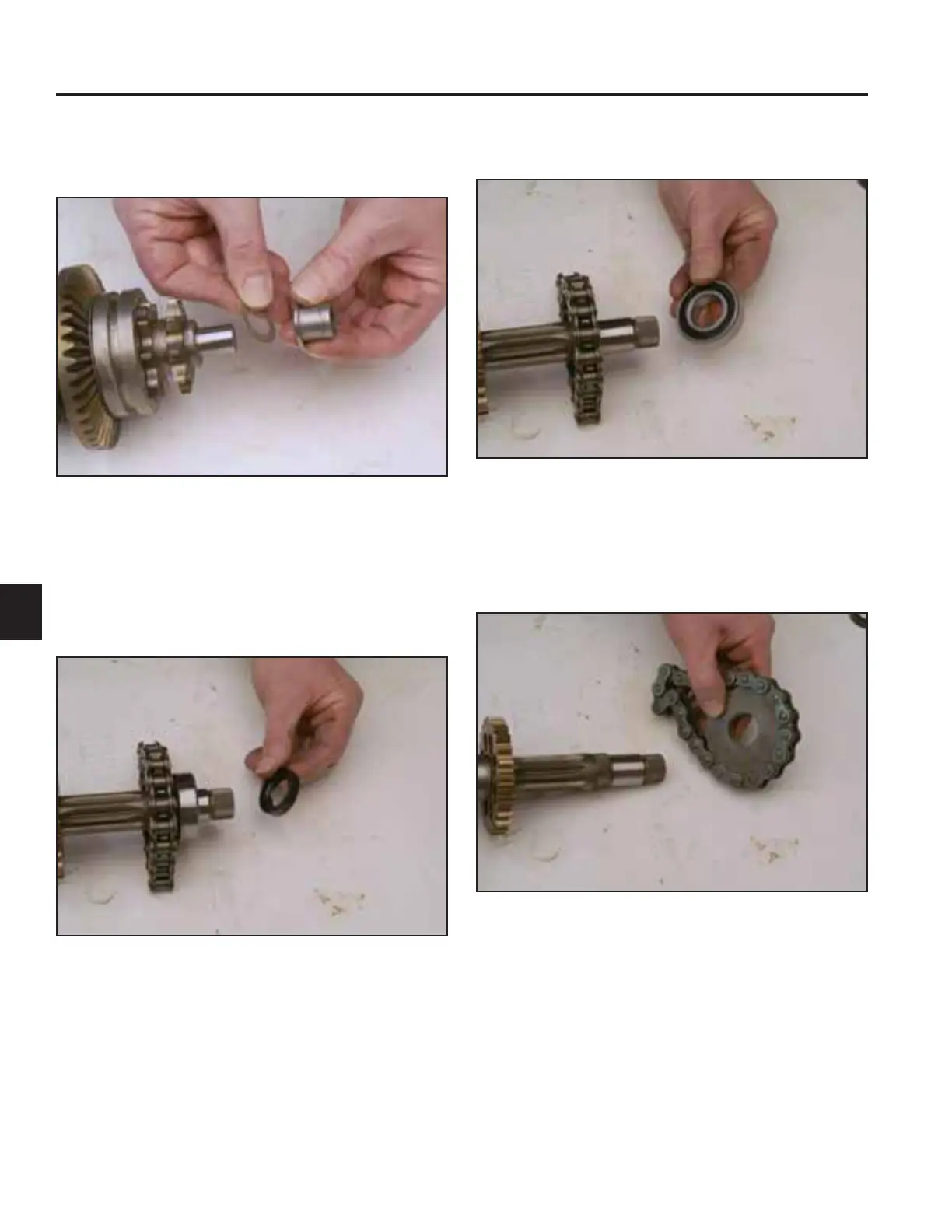

Right Hand Output Shaft Assembly Service
 6OLGHDZDVKHUDQGÀDQJHEHDULQJRQWRWKHGULYH
shaft (Fig. 553).
50. Remove the bearing from the output shaft (Fig. 555).
Fig 553 PICT-8321a
Fig 555 PICT-8340a
51. Remove the 16 tooth sprocket and chain from the
output shaft (Fig. 556).
49. Remove the seal from the output shaft (Fig. 554).
Fig 556 PICT-8342a
Fig 554 PICT-8339a
