Toro GT series - CVT Transmission Replacement; CVT Transmission Removal

GEAR DRIVE SYSTEM
5-10 GT Series Tractors Service Manual
5
CVT Transmission Replacement
CVT Transmission Removal
4. Remove the 4 screws securing the shift cover to the
frame (Fig. 461).

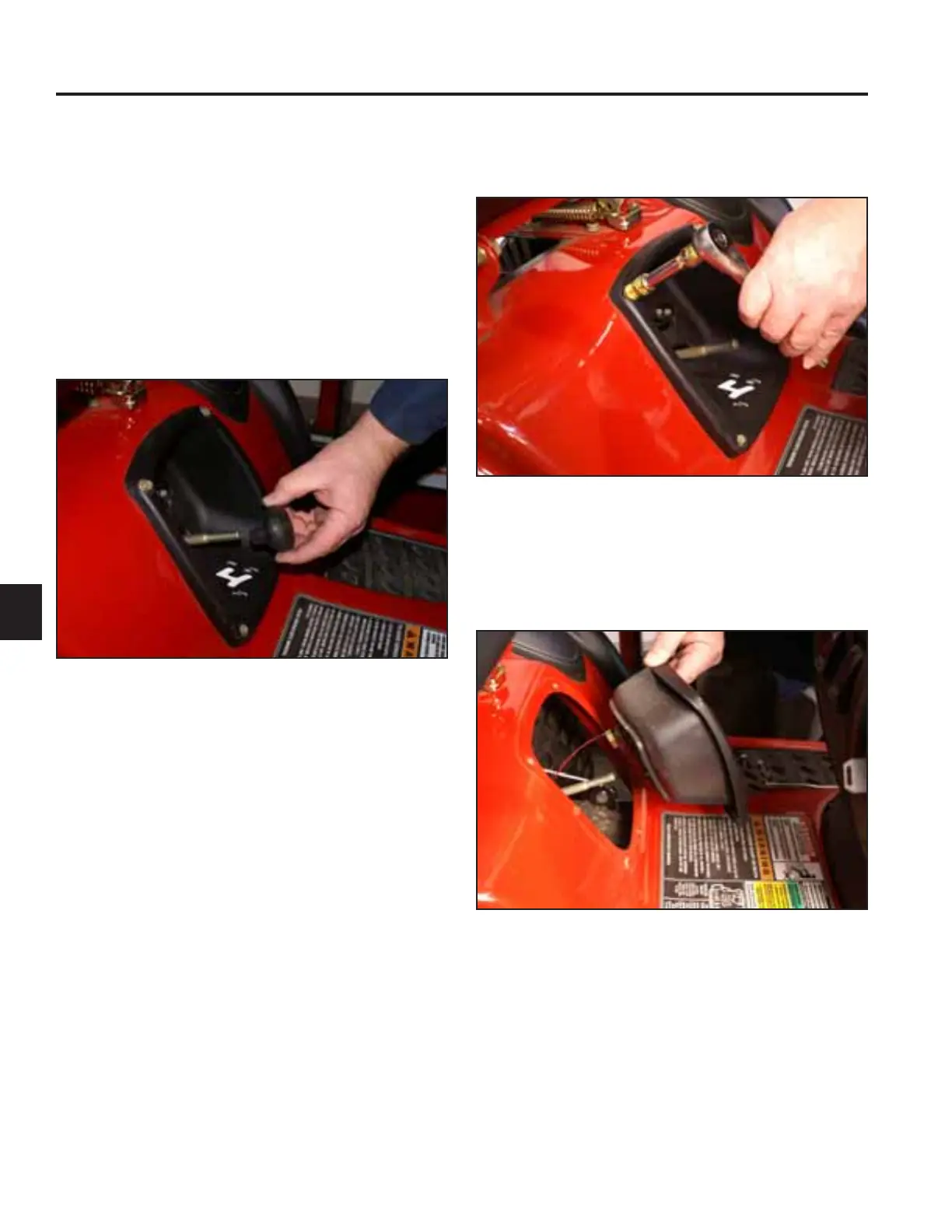

Fig 460 PICT-7632
Fig 461 PICT-7635
5. Remove the shift cover plate and lay it to the side
(Fig. 462).
1. Remove the mower deck. Refer to “50 inch Mower
Deck Removal” on page 7-6.
2. Remove the transmission drive belt. Refer to “Trans-
mission Drive Belt Removal” on page 5-1.
3. Remove the shift knob (Fig. 460).
Fig 462 PICT-7636
