Toro GT series - 50 Mower Deck Removal

MOWER DECK
7-6 GT Series Tractors Service Manual
7

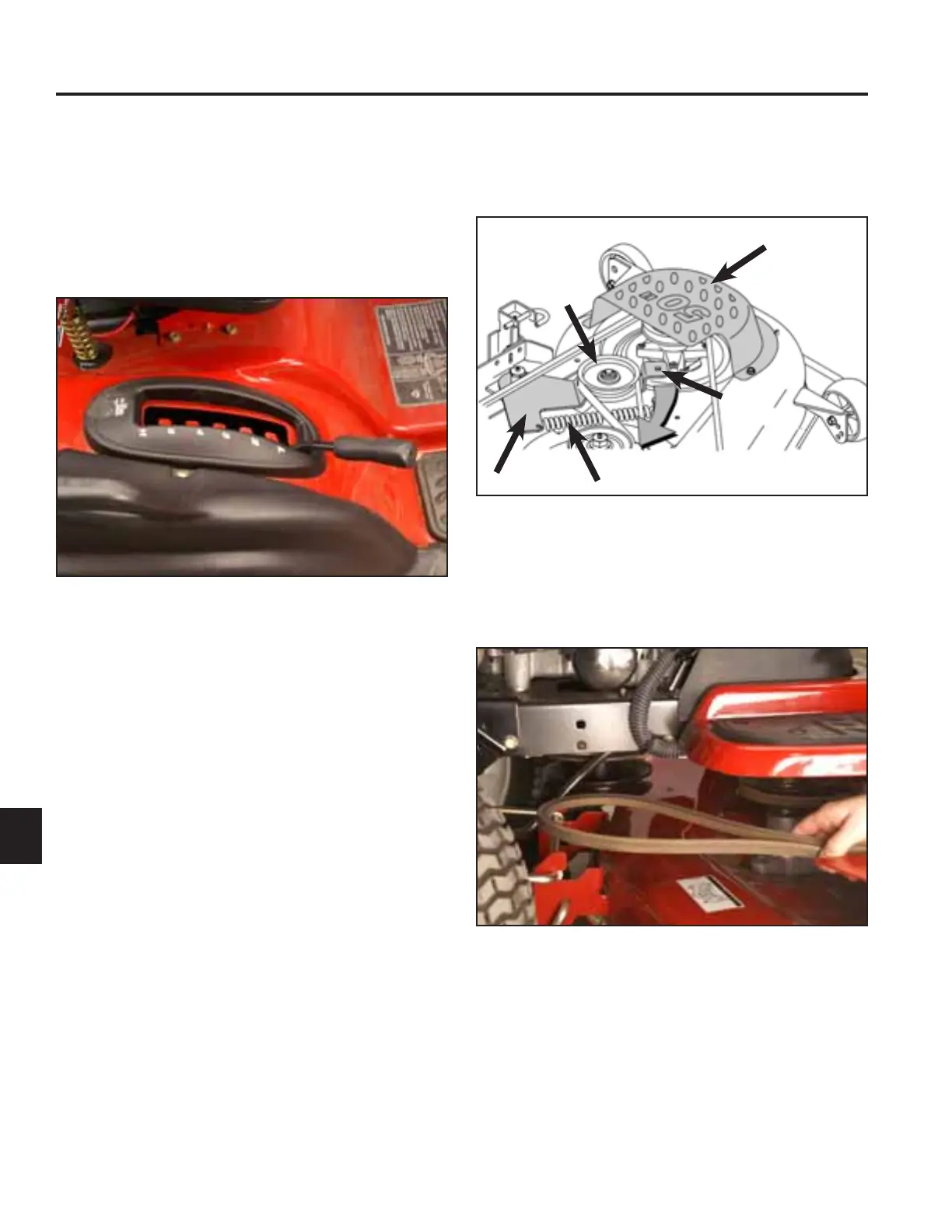

50” Mower Deck Removal
Fig 760 PICT-7829
3. Using a breaker bar or ratchet, rotate the idler brack-
et forward and remove the deck belt from around the
electric PTO clutch (Fig. 761 and Fig. 762).
A. Idler bracket D. Belt guard
B. Spring E. 3/8” Square hole
C. Pivoting idler pulley
Fig 761 ¿J
Fig 762 PICT-7830
1. Place the PTO/Blade Engage knob in the disen-
gaged (OFF) position and engage the parking brake.
2. Lower the deck by moving the deck lift lever into the
bottom notch on the right fender (Fig. 760).
A
B
C
D
E
