GEAR DRIVE SYSTEM
5-1GT Series Tractors Service Manual
5
Transmission Drive Belt Replacement

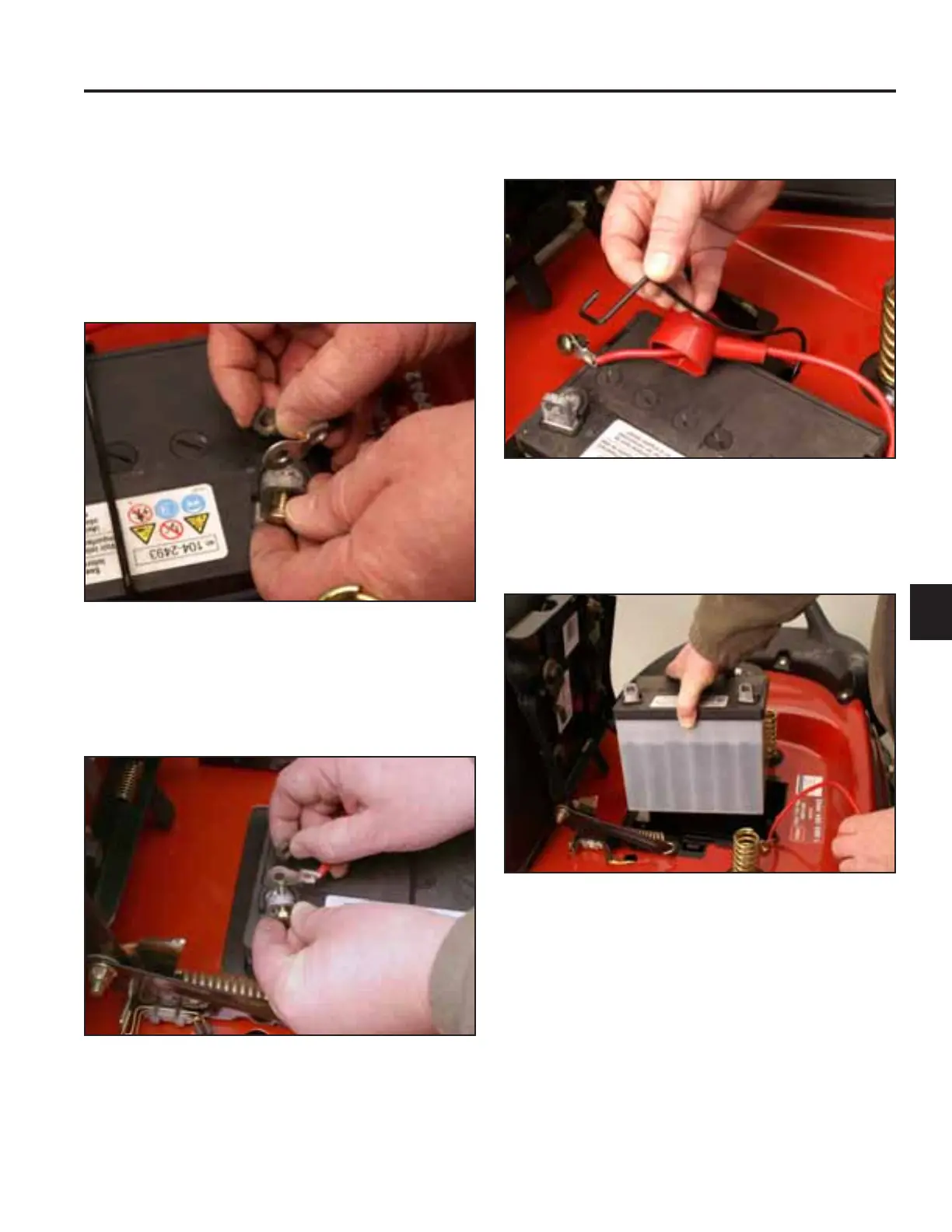

Transmission Drive Belt Removal
1. Lift the seat to access the battery compartment.
2. Disconnect the battery cable from the negative bat-
tery terminal (Fig. 427).
4. Remove the battery hold down rod (Fig. 429).
Fig 427 PICT-7349
Fig 429 PICT-7352
5. Remove the battery from the battery tray (Fig. 430).
3. Disconnect the battery cable from the positive bat-
tery terminal (Fig. 428).
Fig 430 PICT-7353
Fig 428 PICT-7351a
