GEAR DRIVE SYSTEM
5-44 GT Series Tractors Service Manual
5
Variable Speed Pulley Service
To remove the variable speed pulley from the CVT
transmission, refer to “CVT Transmission Removal” on
page 5-10.

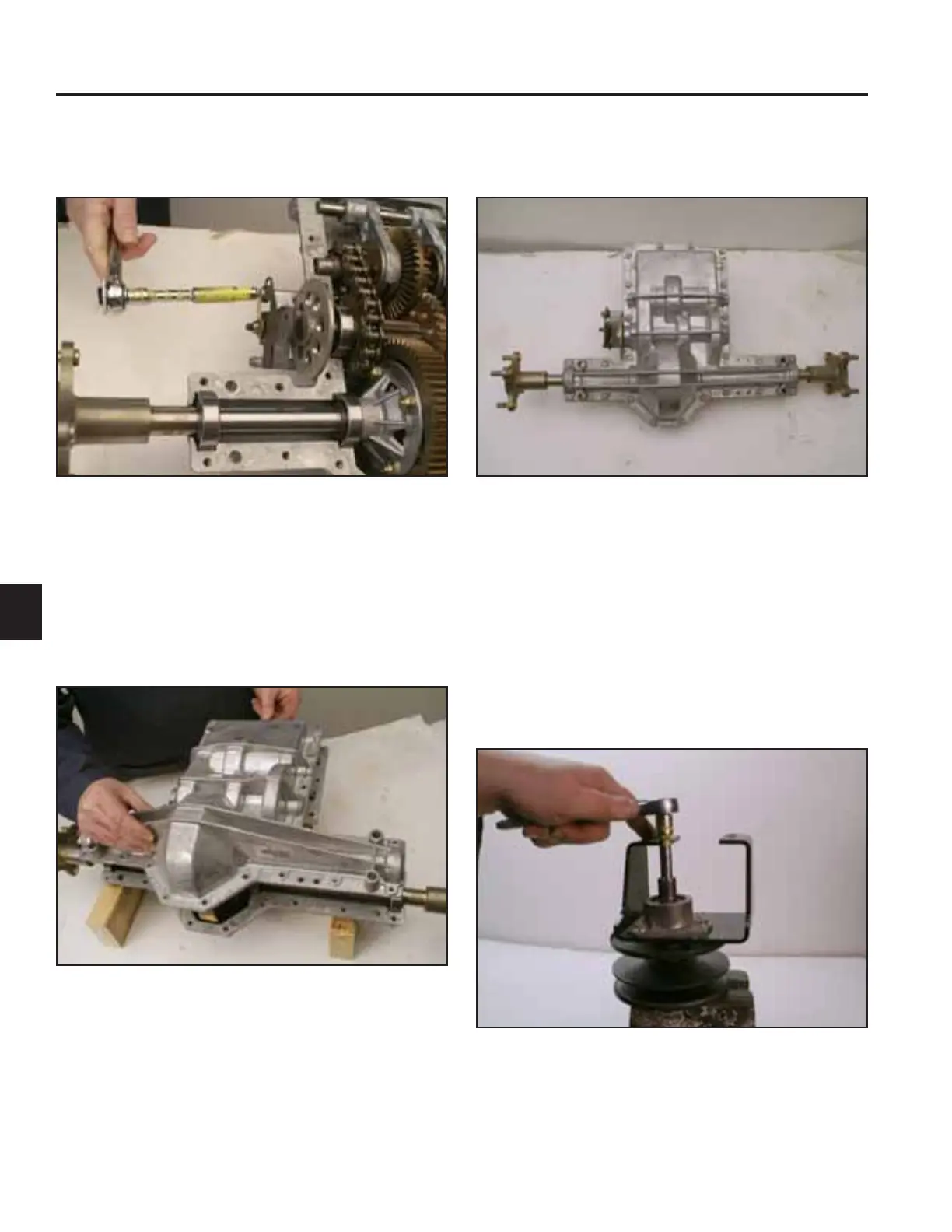

1. Remove the center bolt and washer securing the
bearings to the pulley shaft (Fig. 596).
Fig 596 PICT-7685a
86. Install 2 bolts to secure the brake assembly to the
transmission housing (Fig. 593).
89. Install 23 bolts in a crisscross pattern to secure the
housing halves together (Fig. 595).
Fig 593 PICT-8277a
Fig 595 PICT-8272a
87. Pack the transmission with grease: 55 oz. of Shell
Darina “O” Type Grease.
88. Position the upper housing onto the lower housing
(Fig. 594).
Fig 594 PICT-8355a
