GEAR DRIVE SYSTEM
5-45GT Series Tractors Service Manual
5

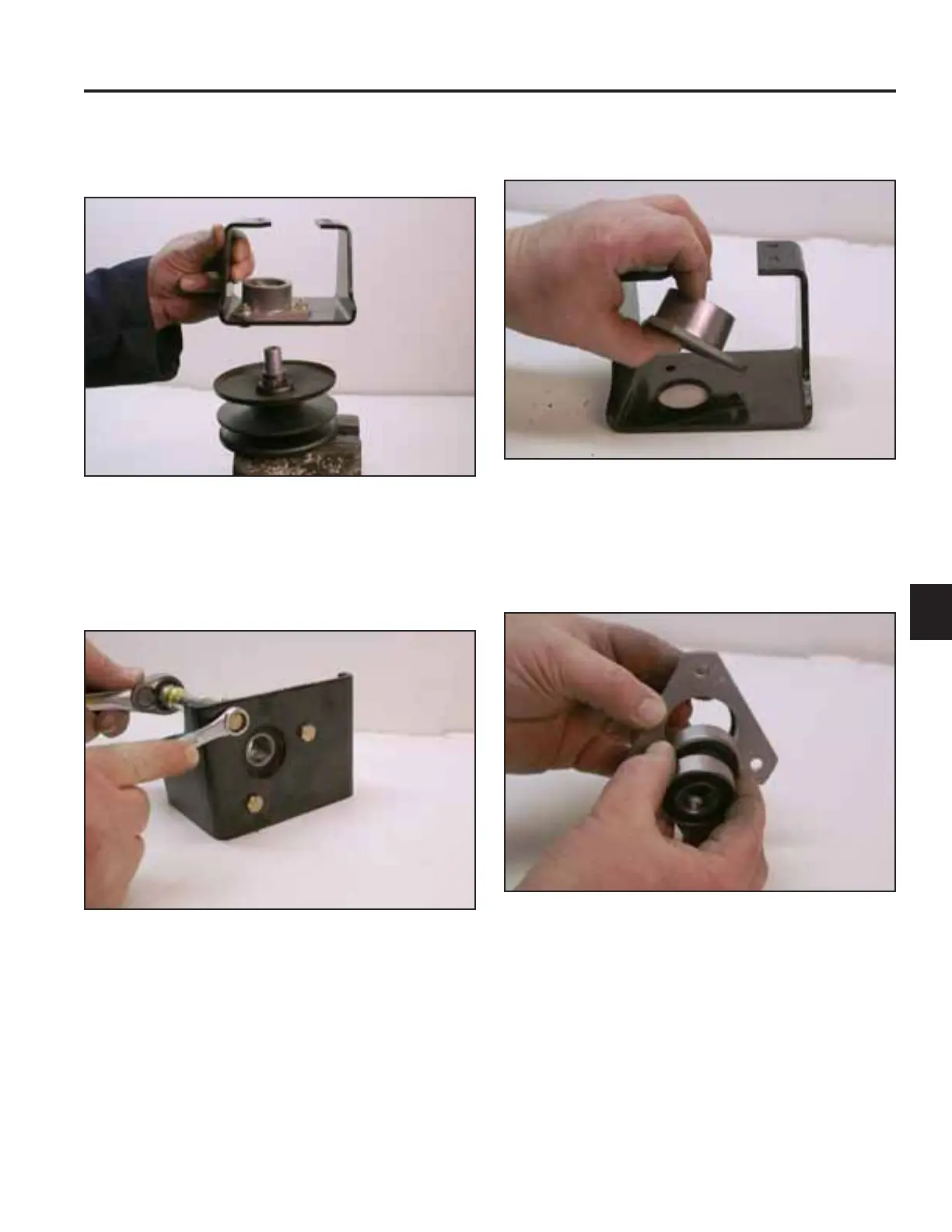

2. Remove the bracket assembly from the variable
speed pulley (Fig. 597).
Fig 597 PICT-7686a
5. Remove the 2 ball bearings from the bearing cup
(Fig. 600).
4. Remove the bearing cup from the bracket (Fig. 599).
3. Remove the 3 nuts and bolts securing the bearing
cup to the pulley bracket (Fig. 598).
Fig 600 PICT-7692a
Fig 599 PICT-7690a
Fig 598 PICT-7688a
