MOWER DECK
7-34 GT Series Tractors Service Manual
7
54” Mower Deck Roller Replacement
54” Mower Deck Roller Removal

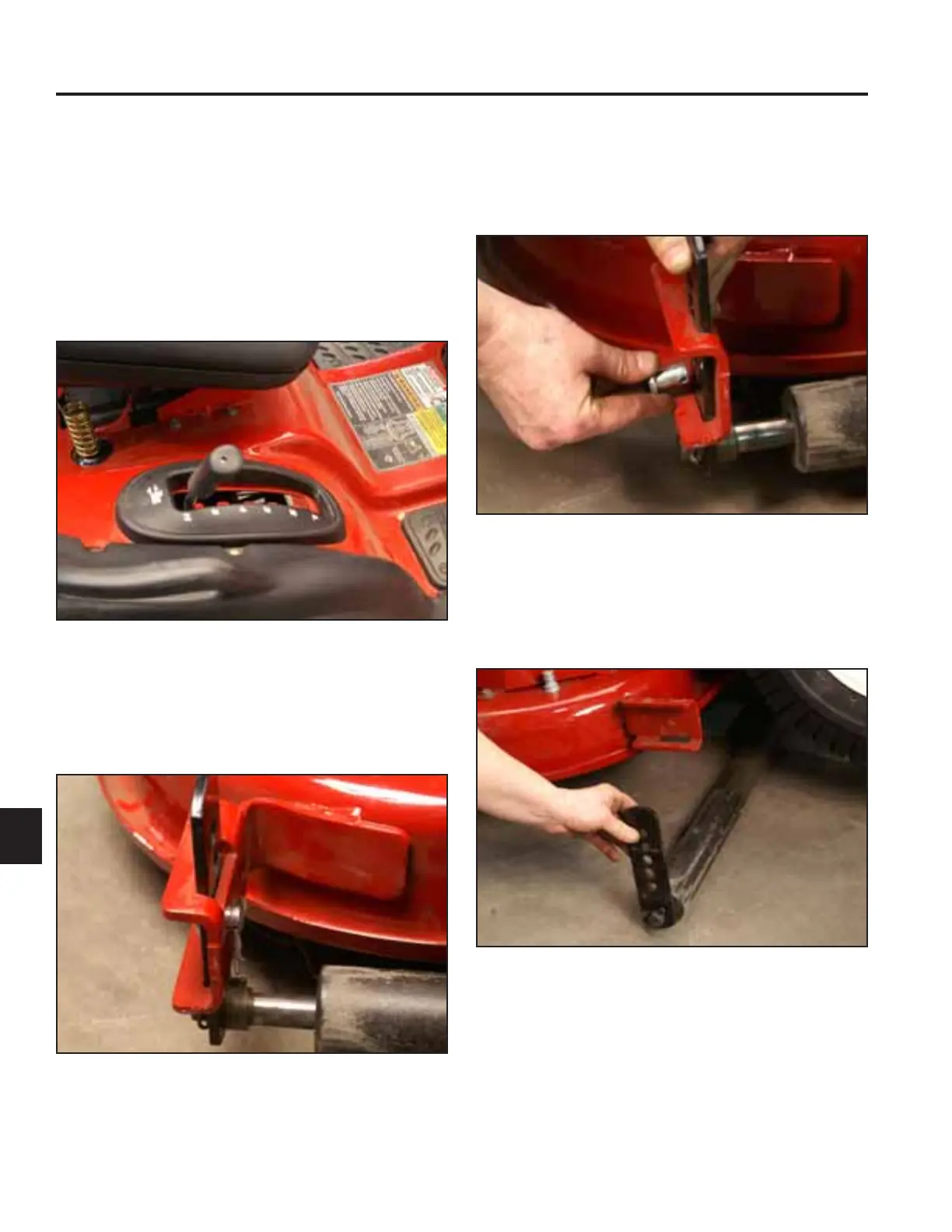

1. Raise the deck by moving the deck lift lever into the
top notch on the right fender. Raise and support the
rear of the tractor to allow clearance for the deck
roller to be removed from the mower deck roller
brackets (Fig. 858).
Fig 858 PICT-7837
2. Remove the hairpin cotter from the lift bracket pin on
both sides of the mower deck (Fig. 859).
Fig 859 PICT-7929
3. Support the lift bracket and remove the lift bracket
pin from the lift bracket on both sides of the mower.
Gently lower the roller assembly to the ground (Fig.
860).
Fig 860 PICT-7933
4. Slide the roller away from the mower deck and out
from under the tractor (Fig. 861).
Fig 861 PICT-7935
