Toro GT series - CVT Transmission Housing Rebuild

GEAR DRIVE SYSTEM
5-38 GT Series Tractors Service Manual
5

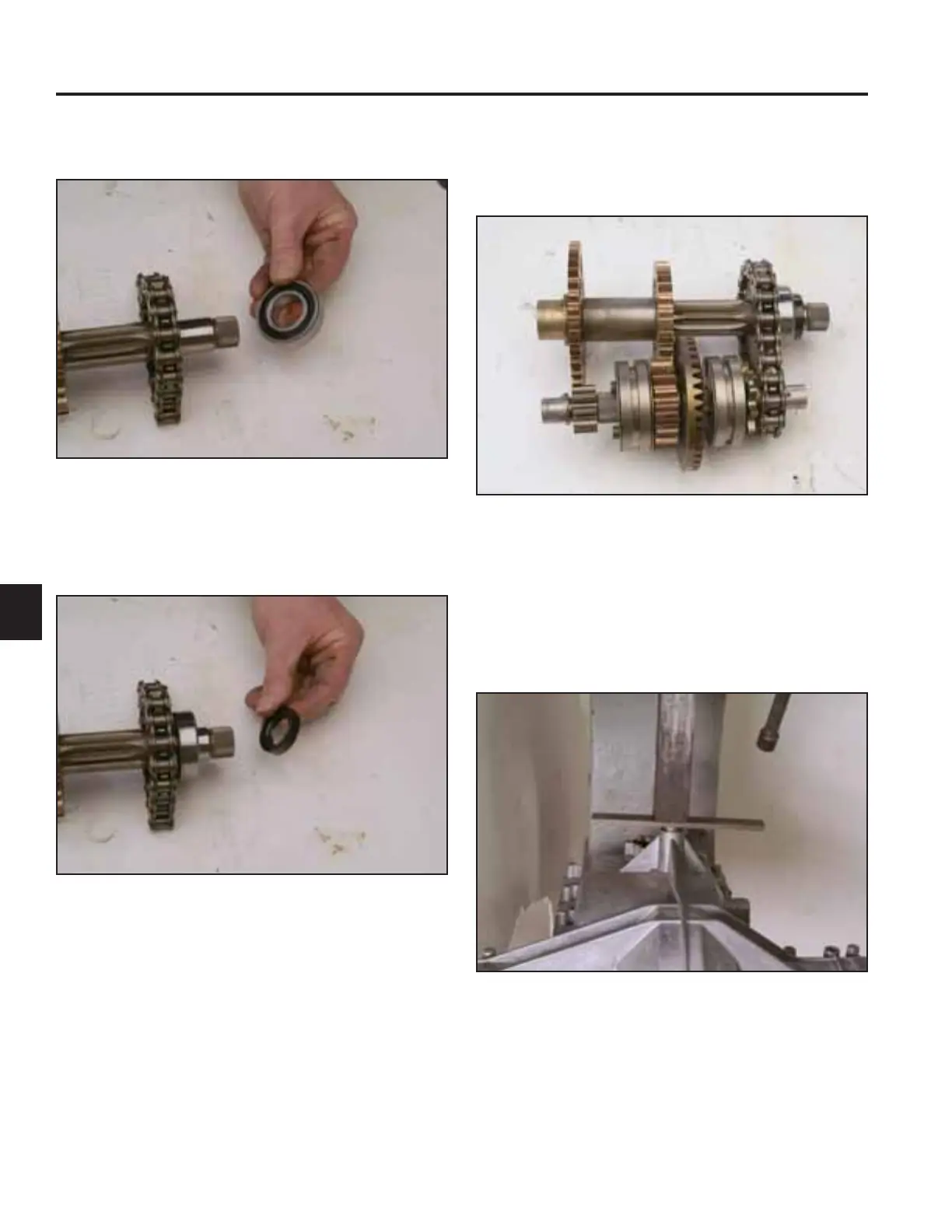

64. Slide a bearing onto the output shaft (Fig. 569). 66. Position the 9 tooth sprocket on the drive shaft
assembly into the chain with the right hand output
shaft assembly (Fig. 571).
Fig 569 PICT-8340a
Fig 571 PICT-8351a
67. If applicable, press 2 new input shaft needle bear-
ings into the housing (Fig. 572).
65. Slide a new seal onto the output shaft (Fig. 570).
Fig 572 PICT-8310a
Fig 570 PICT-8339a
CVT Transmission Housing Rebuild
