ENGINE
4-1GT Series Tractors Service Manual
4
Engine Replacement
Engine Removal
1. Lift the seat to access the battery compartment.
2. Disconnect the battery cable from the negative
battery terminal (Fig. 386).
4. Remove the electric PTO clutch. Refer to “Electric
PTO Clutch Removal” on page 3-29.
5. Release tension from the idler spring and slide
the engine pulley off the crank shaft. Remove the
transmission drive belt from the engine pulley and
remove the pulley from the machine (Fig. 388).

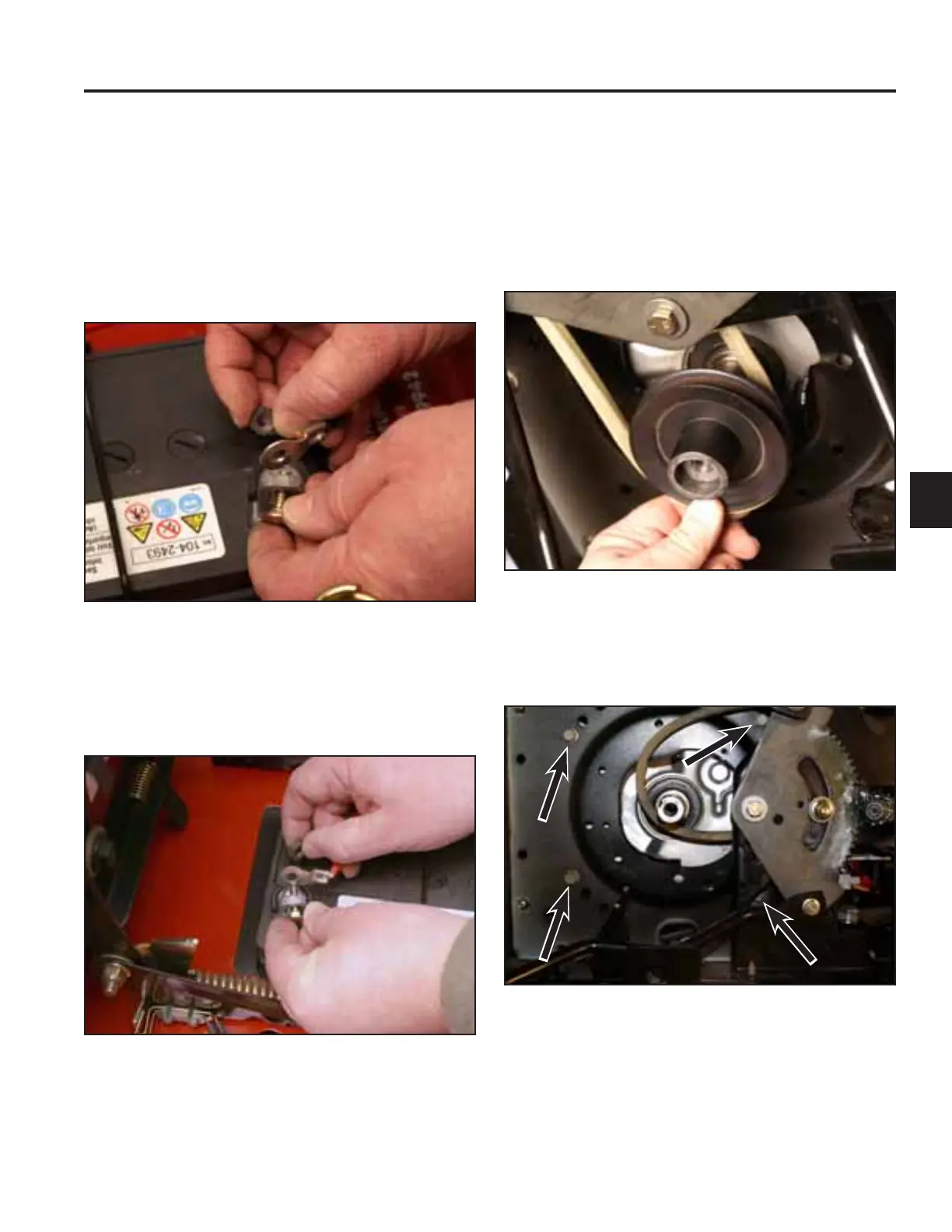

Fig 386 PICT-7349
Fig 388 PICT-7497
6. Remove the 4 engine mounting bolts (Fig. 389).
3. Disconnect the battery cable from the positive
battery terminal (Fig. 387).
Fig 389 PICT-7620
Fig 387 PICT-7351a
