Variable Speed Drive Belt
Replacement
Variable Speed Drive Belt Removal
1. Remove the transmission drive belt. Refer to “Trans-
mission Drive Belt Removal” on page 5-1.
2. Remove the shift knob (Fig. 440).
4. Remove the shift cover plate from the frame and lay
it to the side (Fig. 442).

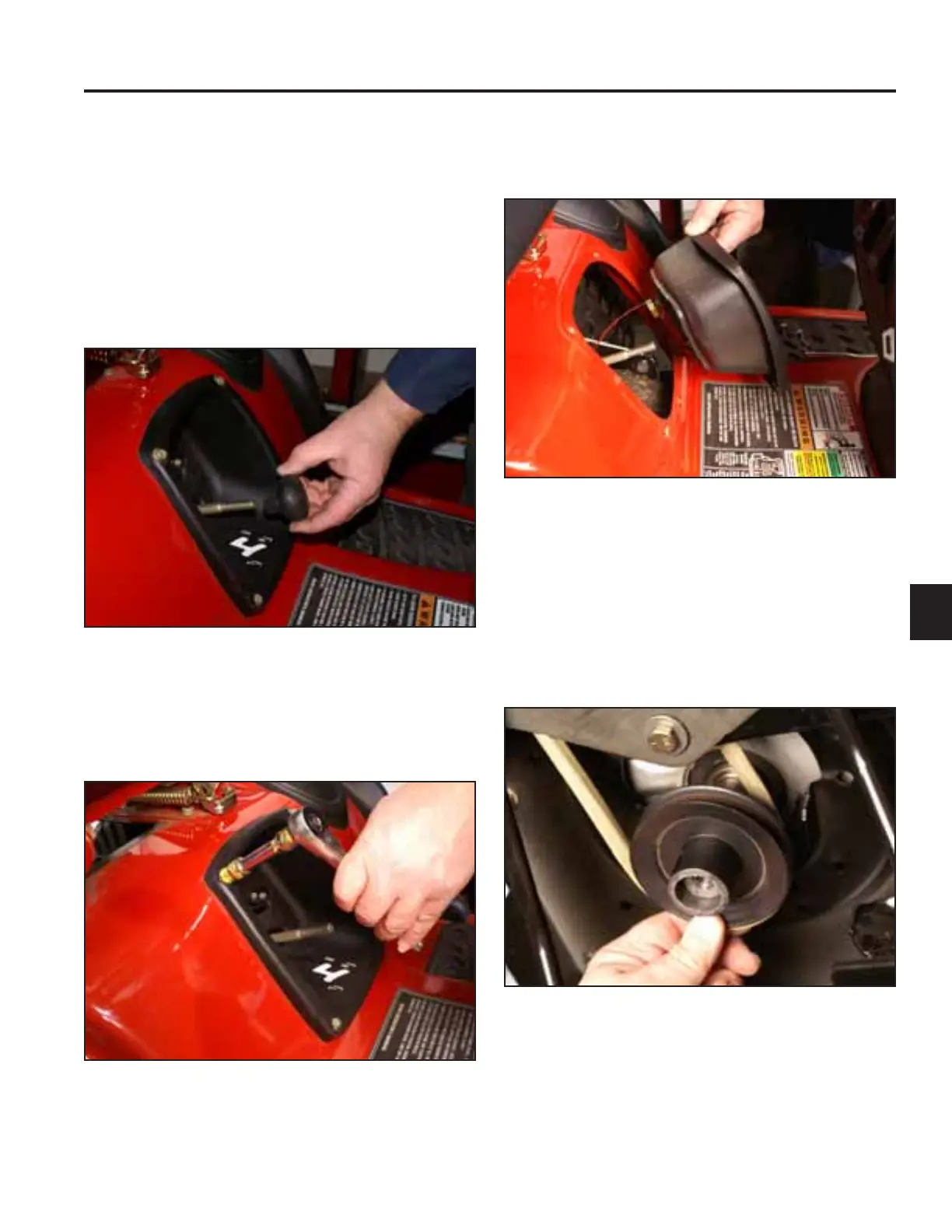

Fig 440 PICT-7632
Fig 442 PICT-7636
5. Remove the Electric PTO clutch. Refer to “Electric
PTO Clutch Removal” on page 3-29.
6. Slide the engine pulley off the crankshaft and
remove the transmission drive belt from the engine
pulley (Fig. 443).
3. Remove the 4 screws securing the shift cover to the
frame (Fig. 441).
Fig 443 PICT-7497
Fig 441 PICT-7635
