GEAR DRIVE SYSTEM
5-6 GT Series Tractors Service Manual
5

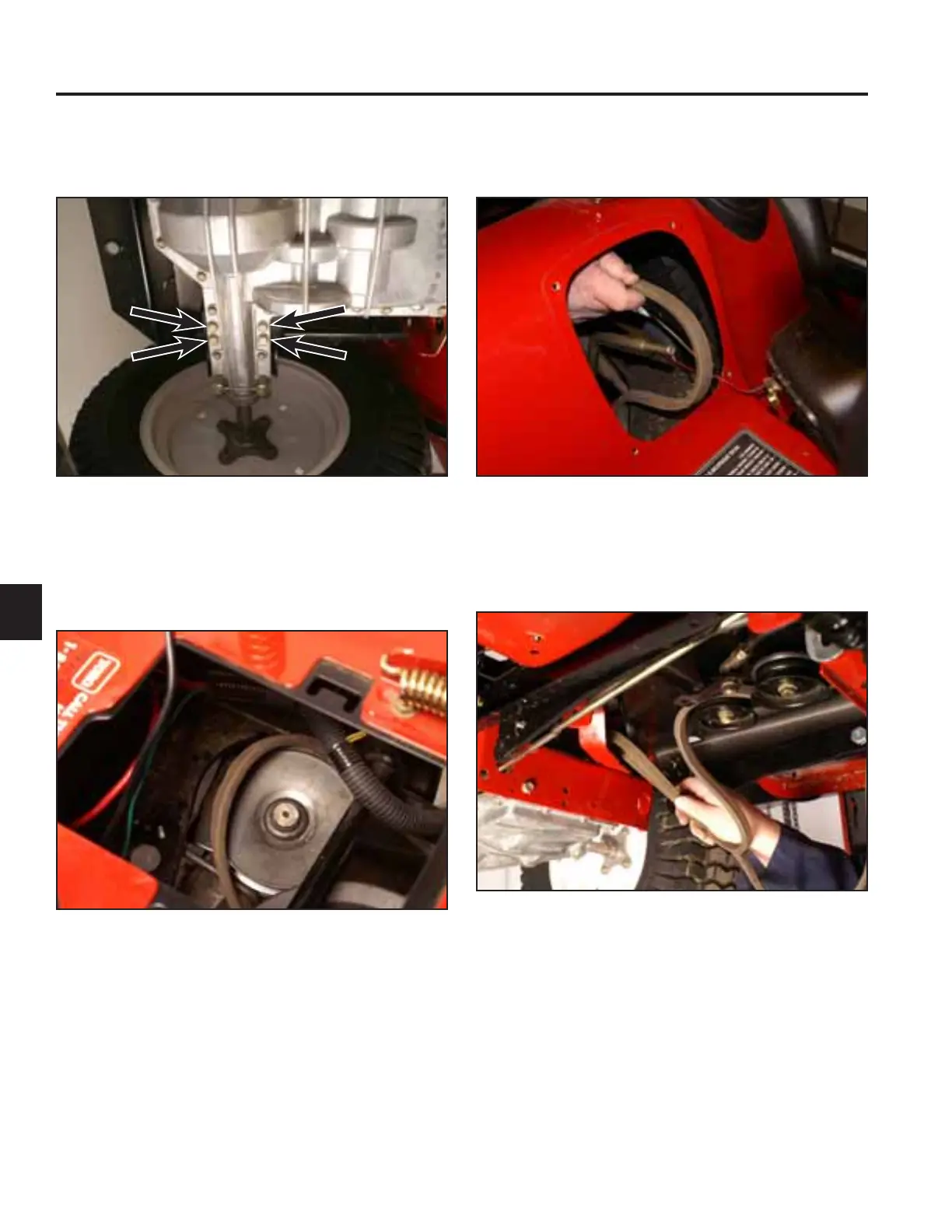

7. Remove the 4 bolts securing the variable speed
pulley assembly to the transmission (Fig. 444).
9. Route the belt forward and remove it from around
the shift rod (Fig. 446).
Fig 444 PICT-7640a
Fig 446 PICT-7644
10. Pull the belt downward (Fig. 447).
8. Tilt the variable speed pulley forward and remove
the belt from it (Fig. 445).
Fig 447 PICT-7648
Fig 445 PICT-7642
