GEAR DRIVE SYSTEM
5-7GT Series Tractors Service Manual
5

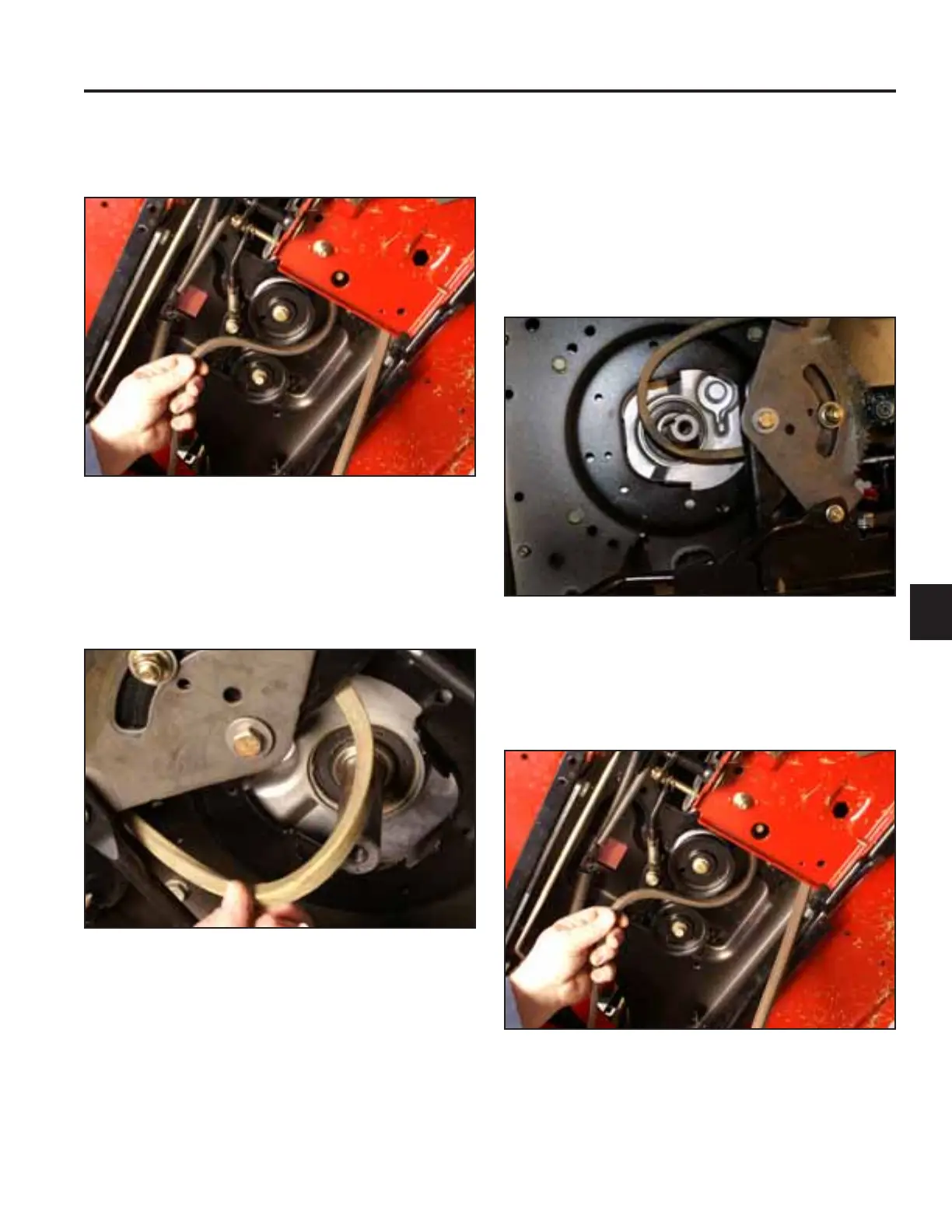

Variable Speed Drive Belt Installation
 5HPRYHWKHEHOWIURPDURXQGWKHWZRÀDWLGOHU
pulleys (Fig. 448).
1. Route the transmission drive belt through the steer-
ing support bracket and frame. Install the transmis-
sion drive belt around the crankshaft (Fig. 450).
Note: The belt routes between the steering shaft
and left side of the frame.
Fig 448 PICT-7649
Fig 450 PICT-7622
2. Route the belt between the two idler pulleys on the
center double idler bracket (Fig. 451).
12. Remove the transmission drive belt from around the
crankshaft and remove it from above the steering
support bracket (Fig. 449).
Fig 451 PICT-7649
Fig 449 PICT-7498
