GEAR DRIVE SYSTEM
5-8 GT Series Tractors Service Manual
5

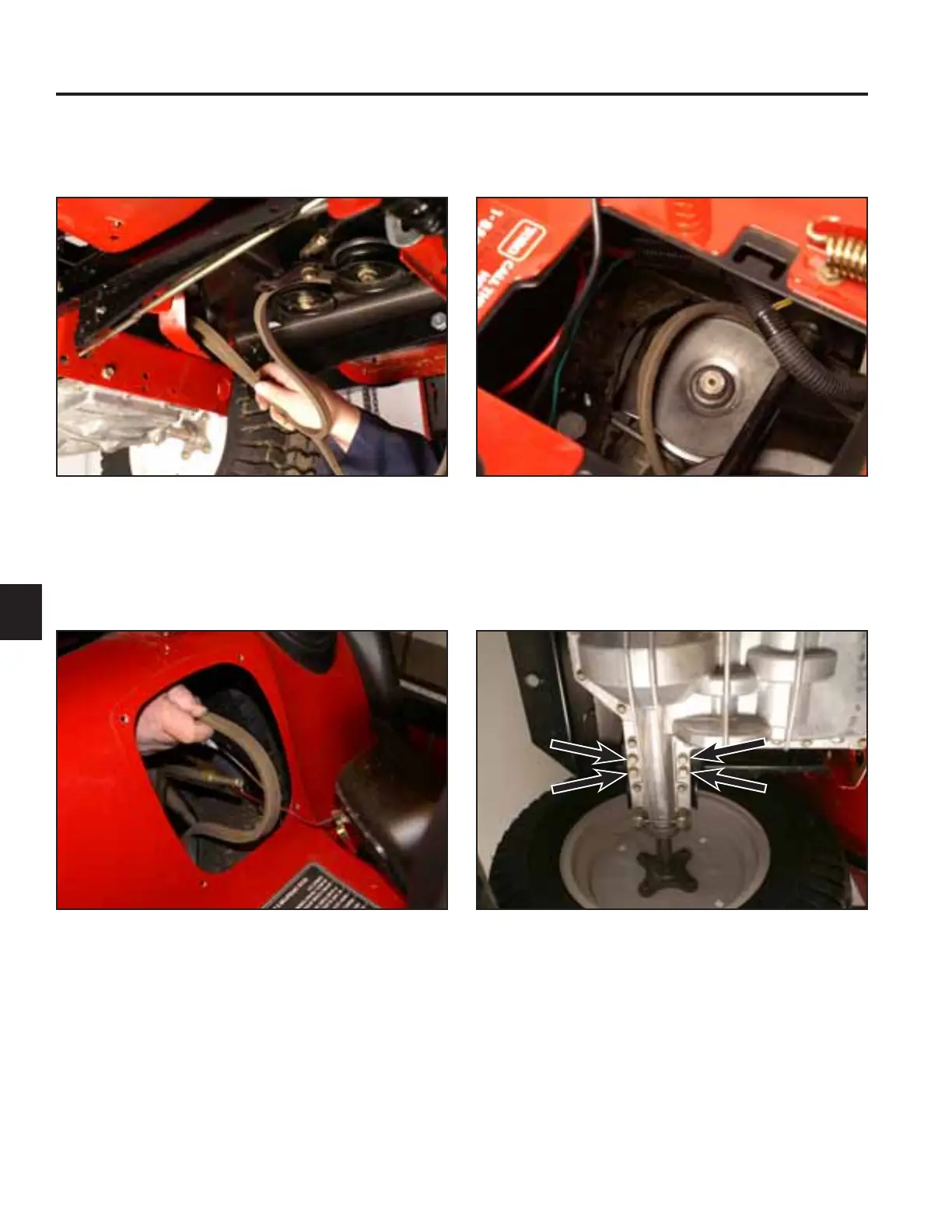

3. Route the belt up toward the top of the transmission
(Fig. 452).
5. Tilt the variable speed pulley forward and route the
belt around it into the lower pulley groove (Fig. 454).
Fig 452 PICT-7648
Fig 454 PICT-7642
6. Install 4 bolts securing the variable speed pulley
assembly to the transmission (Fig. 455).
4. Route the belt so that it is positioned around the shift
rod (Fig. 453).
Fig 455 PICT-7640a
Fig 453 PICT-7644
